MBSP (Main bearing support plate) Installation Note ZM
WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

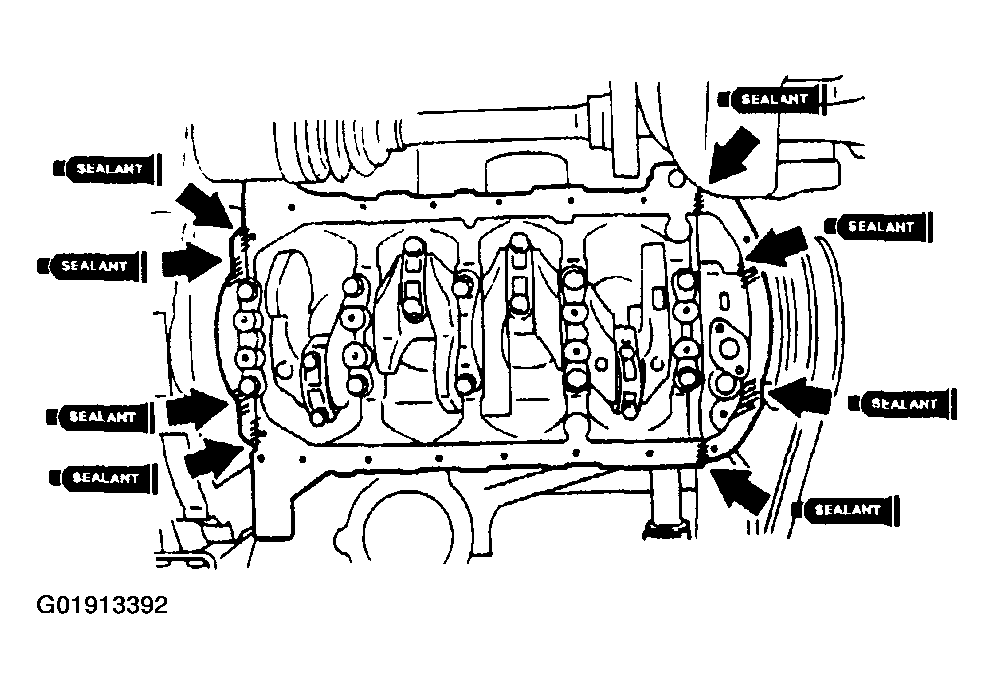

- Apply silicon sealant to the shaded areas as shown.

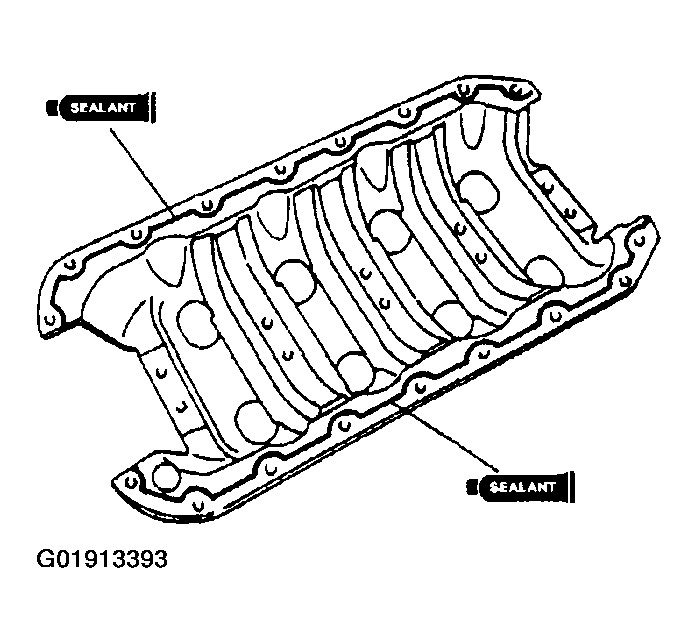

- Apply silicone sealant to the MBSP along the inside of the bolt holes.
Thickness
2.5-3.5 mm {0.099-0.137 in}
