Oil capacity

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

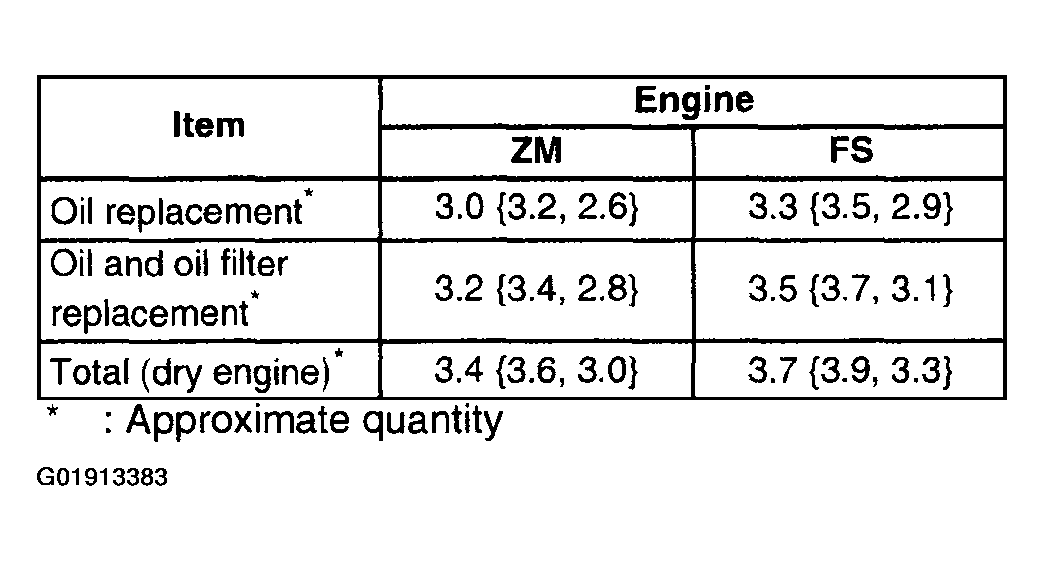

Fig 1: Engine Oil capacity

Courtesy of MAZDA MOTORS CORP.

Engine oil grade

ZM, FS: API service SG (Energy Conserving II), SH (Energy Conserving II) or ILSAC (GF-I) SJ or ILSAC (GF-II)

FS with TC: API service SL, ILSAC (GF-III), or higher grade only.

Engine oil viscosity

Above -25°C {-13°F}: SAE 10W-30

-30 °C-37 °C {-22 °F-98 °F}: SAE 5W-30
