Timing Belt Removal Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Install the pulley lock bolt.
Turn the crankshaft clockwise and align the timing marks.

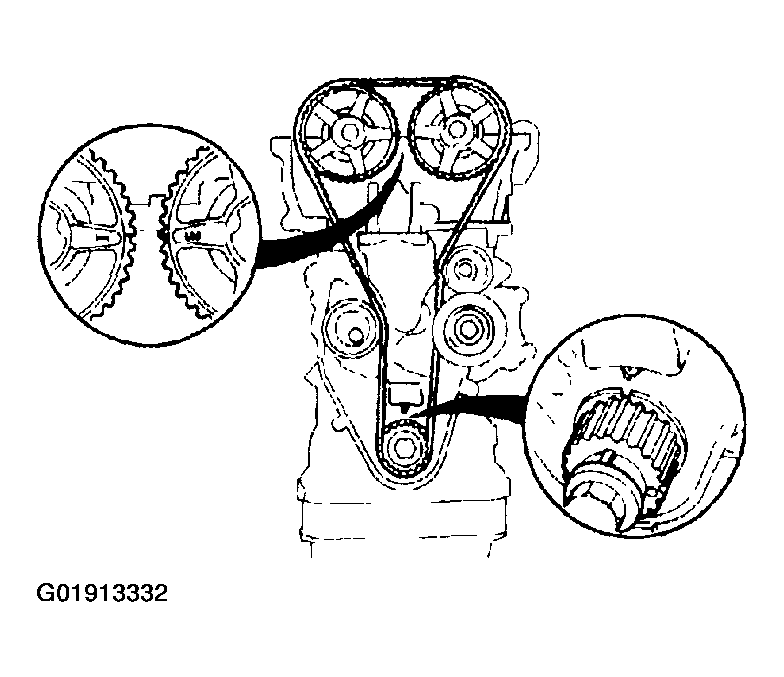

Fig 1: Aligning Timing Marks
Courtesy of MAZDA MOTORS CORP.
Turn the tensioner clockwise using an Allen wrench.
Disconnect the tensioner spring from the hook pin.
CAUTION:
- Forcefully twisting the timing belt turning it inside out, or allowing oil or grease on it will damage the belt and shorten its life.

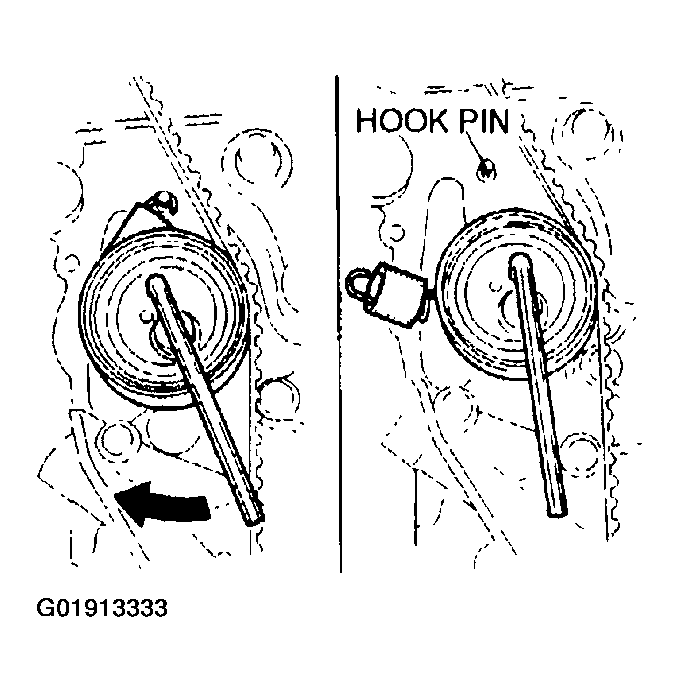

Fig 2: Disconnecting Tensioner Spring From Hook Pin
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Mark the timing belt rotation on the belt for proper reinstallation.
Fig 3: Marking Timing Belt Rotation On Belt For Proper Reinstallation
Courtesy of MAZDA MOTORS CORP.
