Tensioner, Tensioner Spring Installation Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Measure the tensioner spring free length.
- If not within the specification, replace the tensioner spring.
Free length 36.6 mm {1.44 in}
Install the tensioner.

Fig 1: Identifying Free Length
Courtesy of MAZDA MOTORS CORP.
Rotate the tensioner.
- If tensioner rotates with no resistance or does not rotate, replace the tensioner.

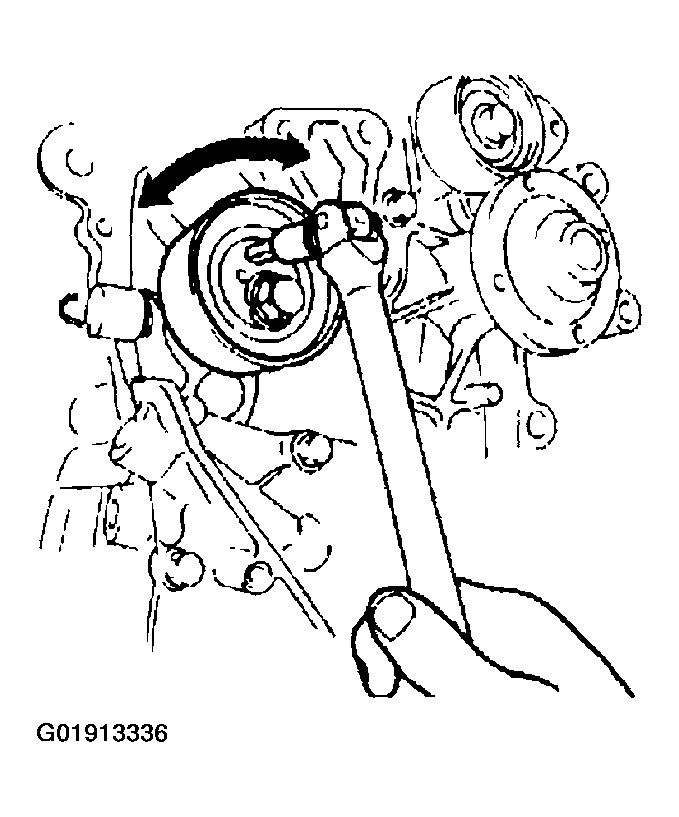

  Fig 2: Rotating Tensioner
  Courtesy of MAZDA MOTORS CORP.
