Cylinder Head Cover Removal Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head cover bolts a few turns in the order shown.

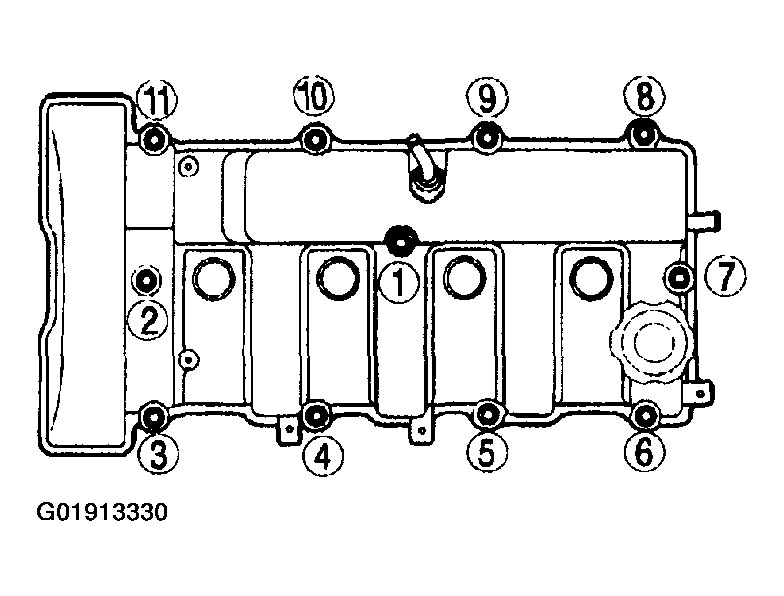

    Fig 1: Removal Sequence For Cylinder Head Cover Bolts
    G01913330Courtesy of MAZDA MOTORS CORP.
