Cylinder Head Cover Installation Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify that the grooves on the cylinder head cover are free of oil, water and other foreign material.
  2. Install the cylinder head cover gasket into the cylinder head cover.
  3. Apply silicone sealant to the cylinder head as shown.

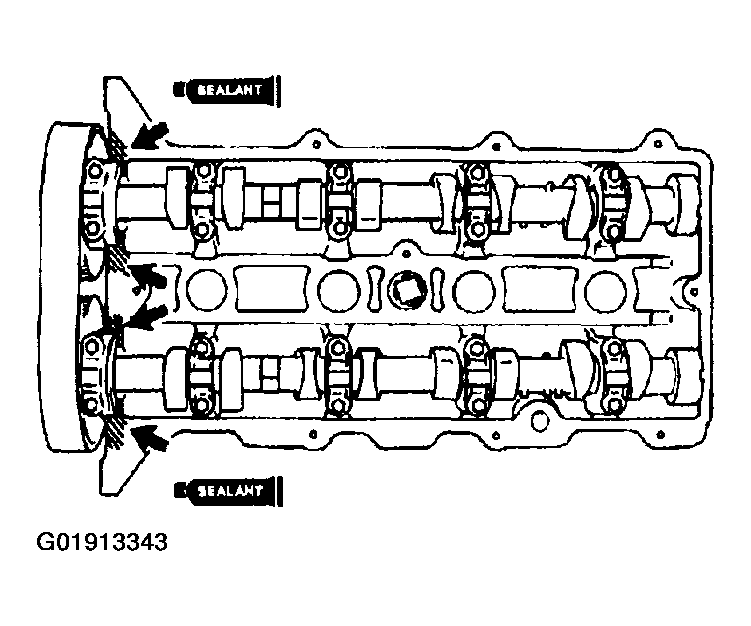

    Fig 1: Applying Silicone Sealant To Cylinder Head
    G01913343Courtesy of MAZDA MOTORS CORP.
  4. Tighten the cylinder head cover bolts a few turns in the order shown.

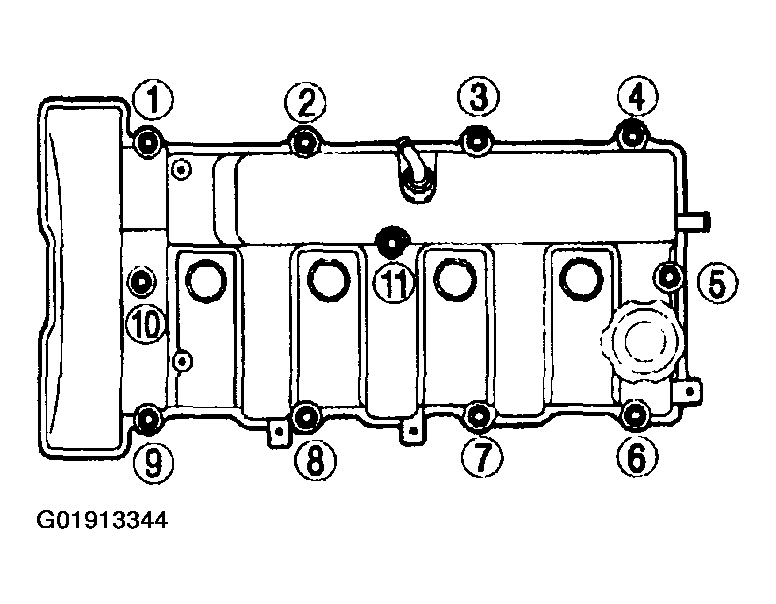

    Fig 2: Cylinder Head Cover Bolts Tightening Sequence
    G01913344Courtesy of MAZDA MOTORS CORP.
