Front Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the timing belt. (See TIMING BELT REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.
    Fig 1: Replacing Front Oil Seal (1 Of 2)
    G01913360Courtesy of MAZDA MOTORS CORP.

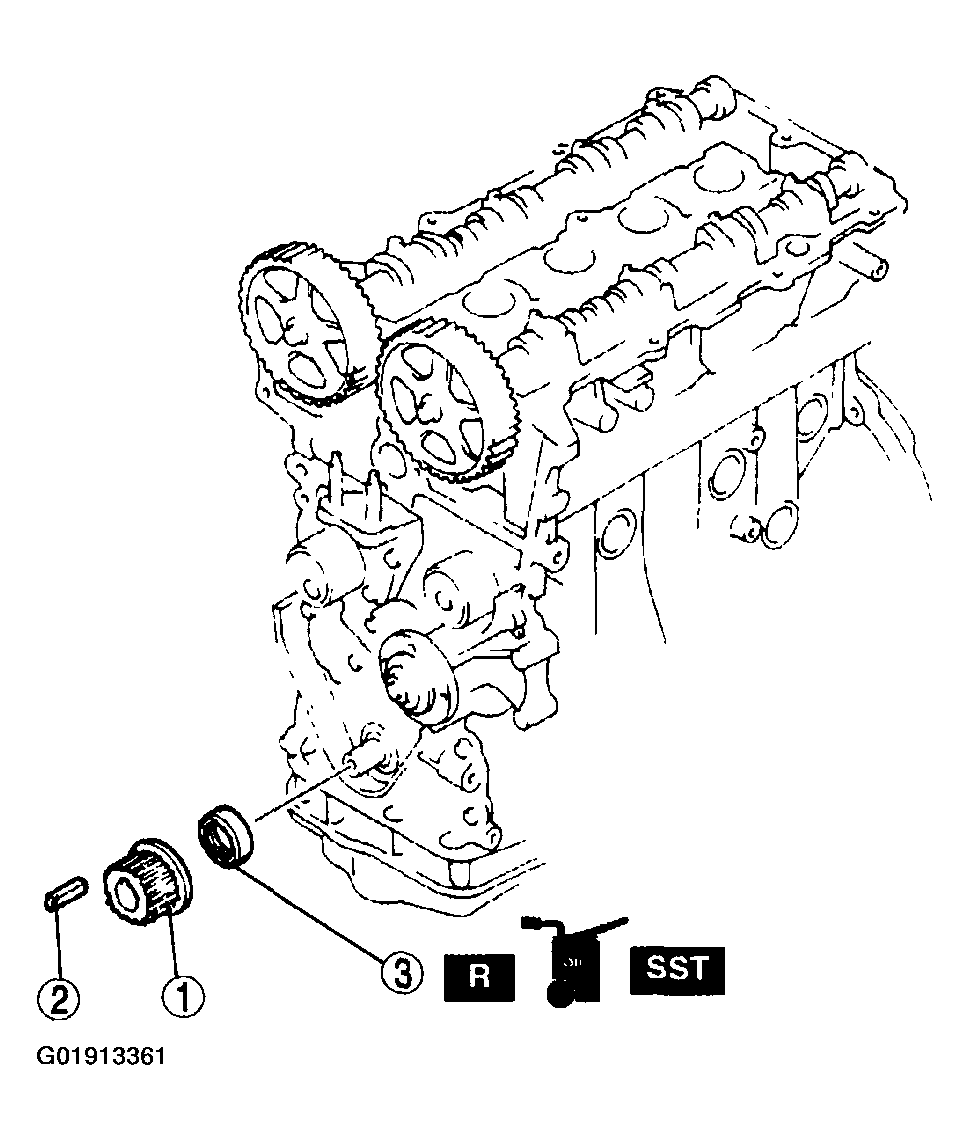

    Fig 2: Replacing Front Oil Seal (2 Of 2)
    G01913361Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
