Engine Disassembly/Assembly

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the engine and transaxle. (See MANUAL TRANSAXLE (MTX) REMOVAL & INSTALLATION .) (See AUTOMATIC TRANSAXLE (ATX) REMOVAL/INSTALLATION .)
  2. Remove the intake-air system. (See REMOVAL & INSTALLATION .)
  3. Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  4. Remove the oil filter. (See OIL FILTER REPLACEMENT .)
  5. Remove the thermostat. (See THERMOSTAT REMOVAL/INSTALLATION .)
  6. Remove the ignition coil.
  7. Remove the generator.
  8. Disassemble in the order indicated in the figure.

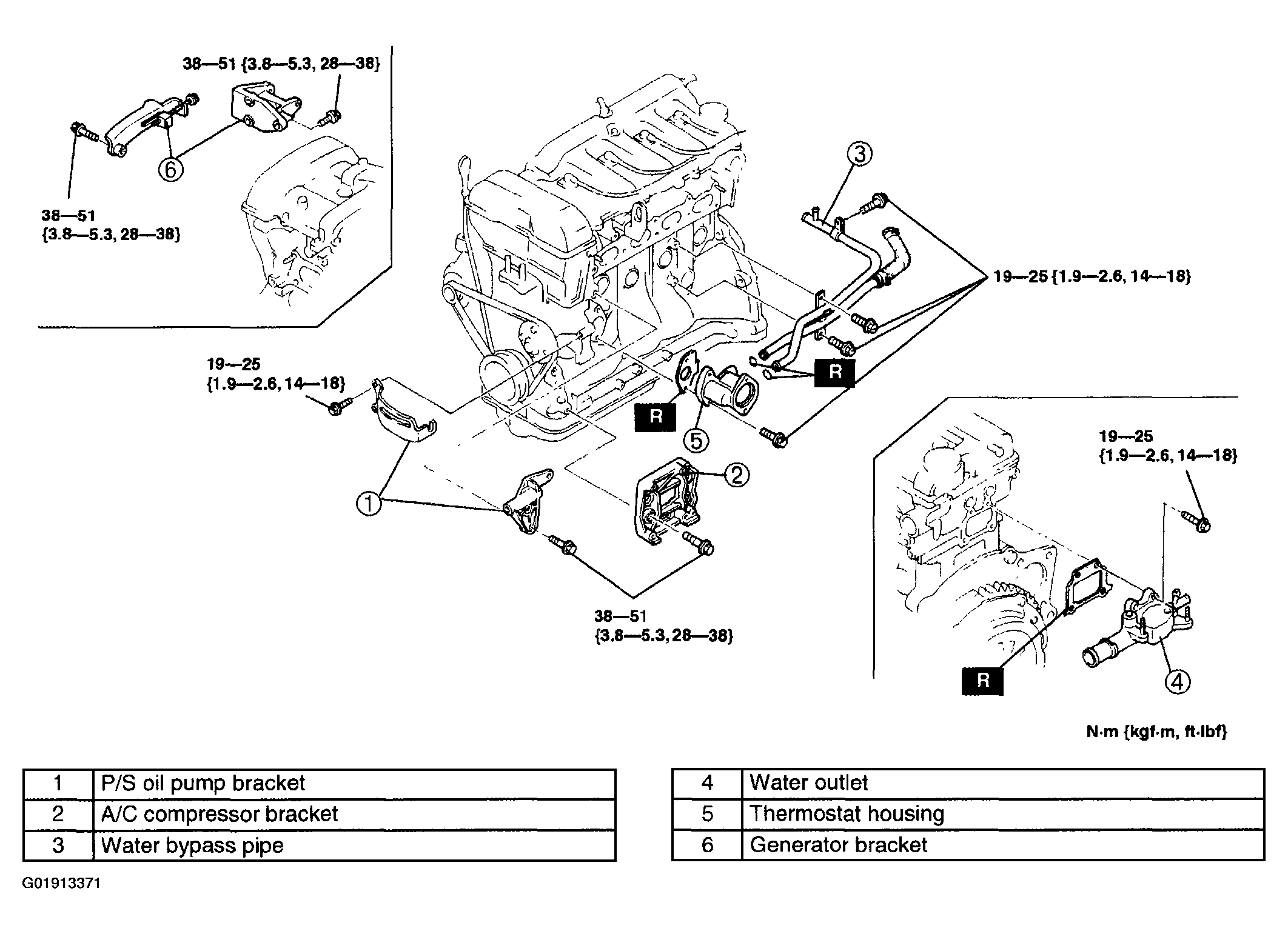

    Fig 1: Disassembled View Of Engine With Torque Specifications
    G01913371Courtesy of MAZDA MOTORS CORP.
  9. Assemble in the reverse order of disassembly.
