Cylinder Head Removal Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the cylinder head bolts a few turns in the order shown.

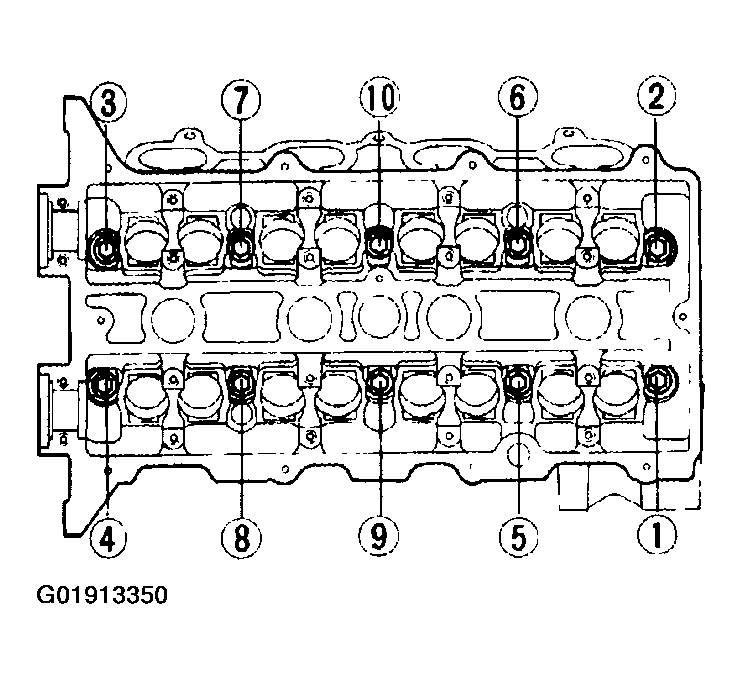

    Fig 1: Loosening Sequence Of Cylinder Head Bolts
    G01913350Courtesy of MAZDA MOTORS CORP.
