Camshaft Removal Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the camshaft cap bolts a few turns in the order shown.

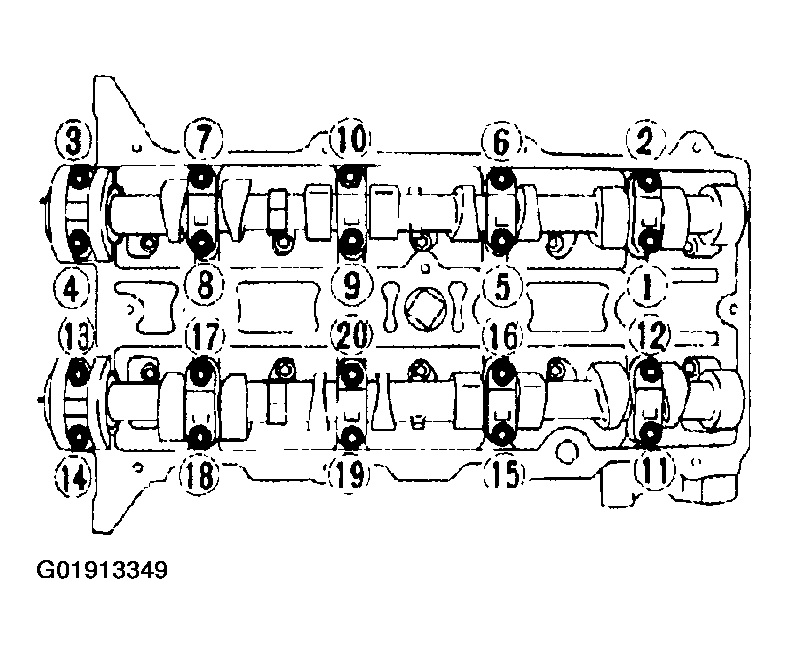

    Fig 1: Loosening Sequence Of Camshaft Cap Bolts
    G01913349Courtesy of MAZDA MOTORS CORP.
