Camshaft Pulley Removal Note

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

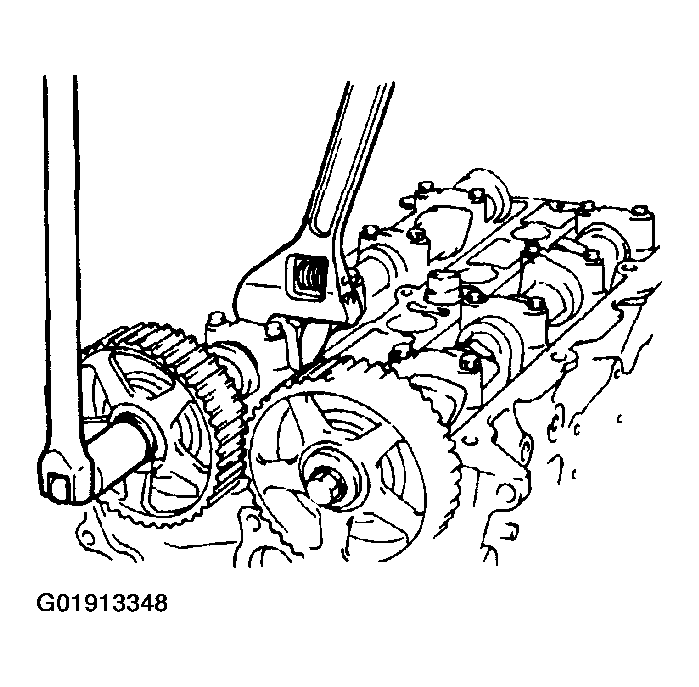

  1. Hold the camshaft using a wrench on the cast hexagon as shown.
    Fig 1: Removing Camshaft Pulley
    G01913348Courtesy of MAZDA MOTORS CORP.
