Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

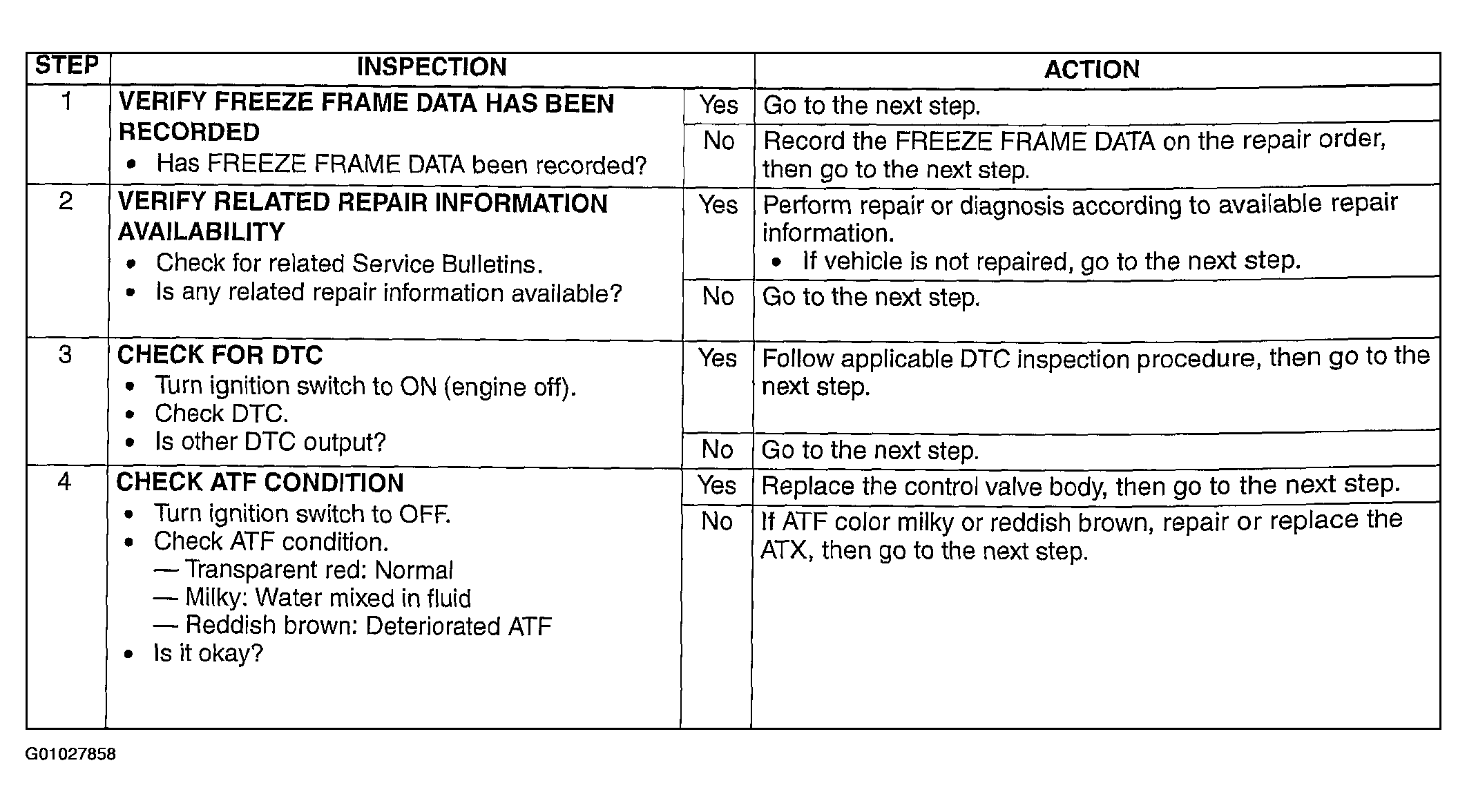

Fig 1: Diagnostic Procedure - DTC P0762 (Steps 1 - 4)
G01027858Courtesy of MAZDA MOTORS CORP.

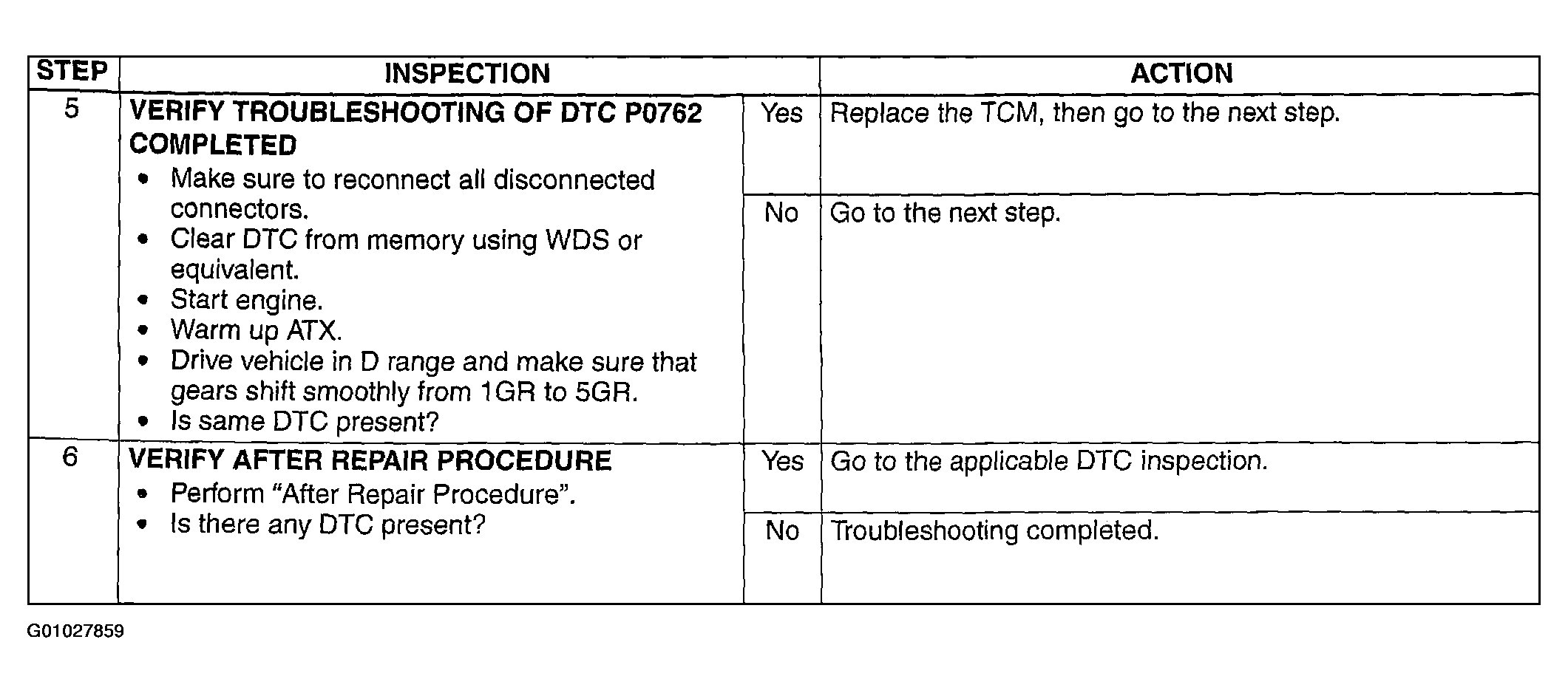

Fig 2: Diagnostic Procedure - DTC P0762 (Steps 5 & 6)
G01027859Courtesy of MAZDA MOTORS CORP.
