Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

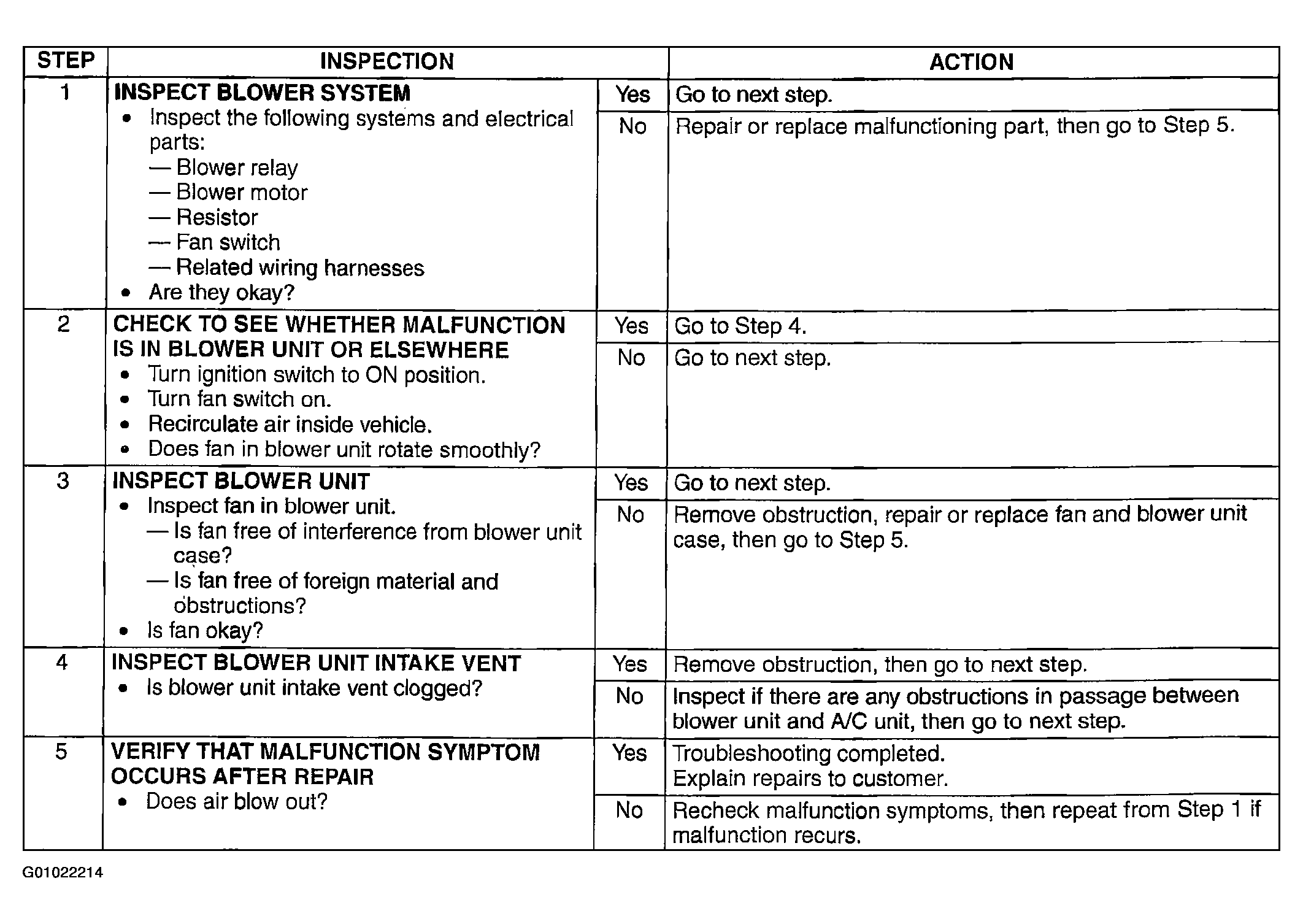

Fig 1: Diagnostic Procedure - Amount Of Air Blown From Vents Does Not Change
G01022214Courtesy of MAZDA MOTORS CORP.
