Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

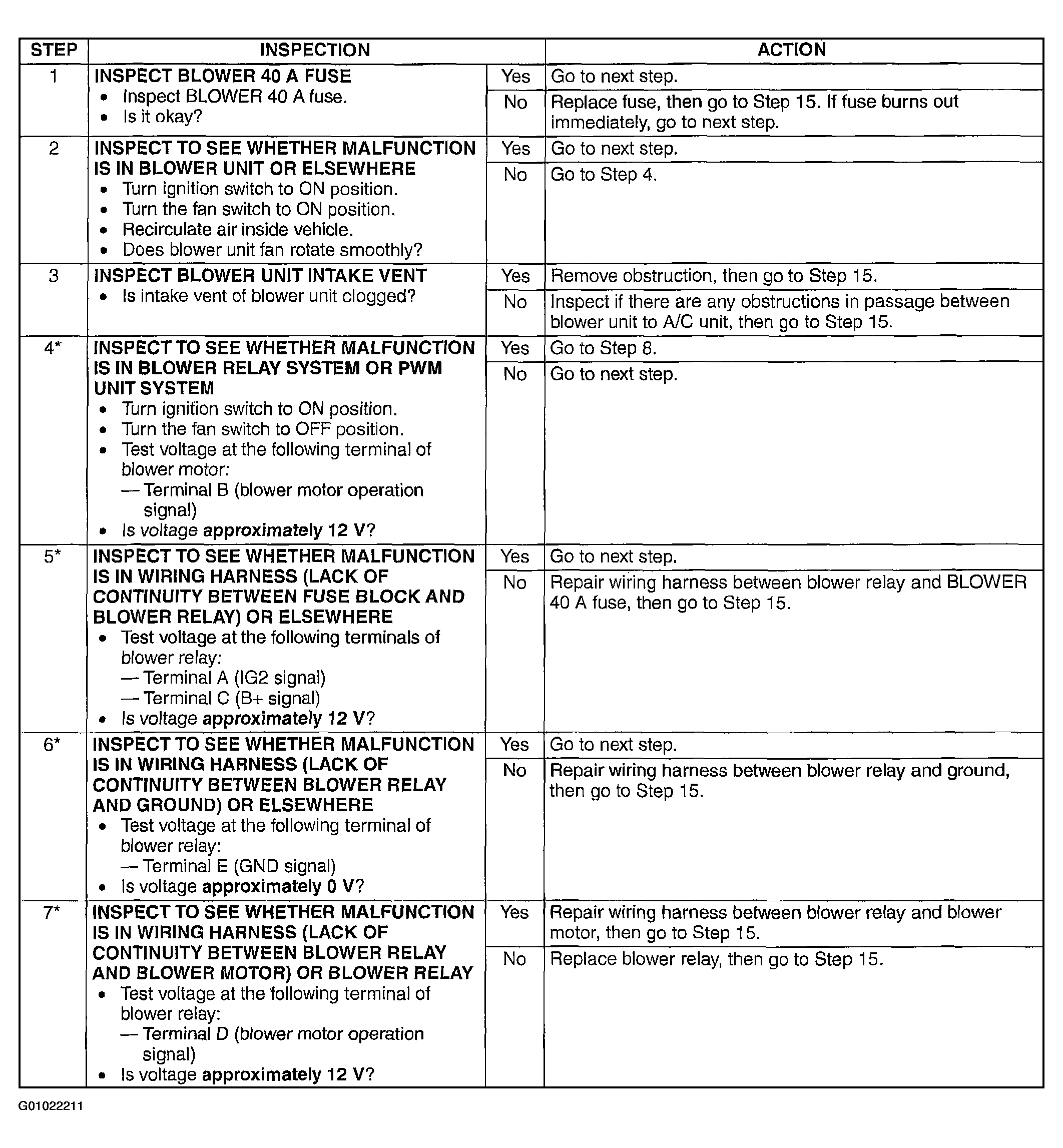

Fig 1: Diagnostic Procedure - Amount Of Air Blown From Vents Does Not Change (Steps 1-7)

Courtesy of MAZDA MOTORS CORP.

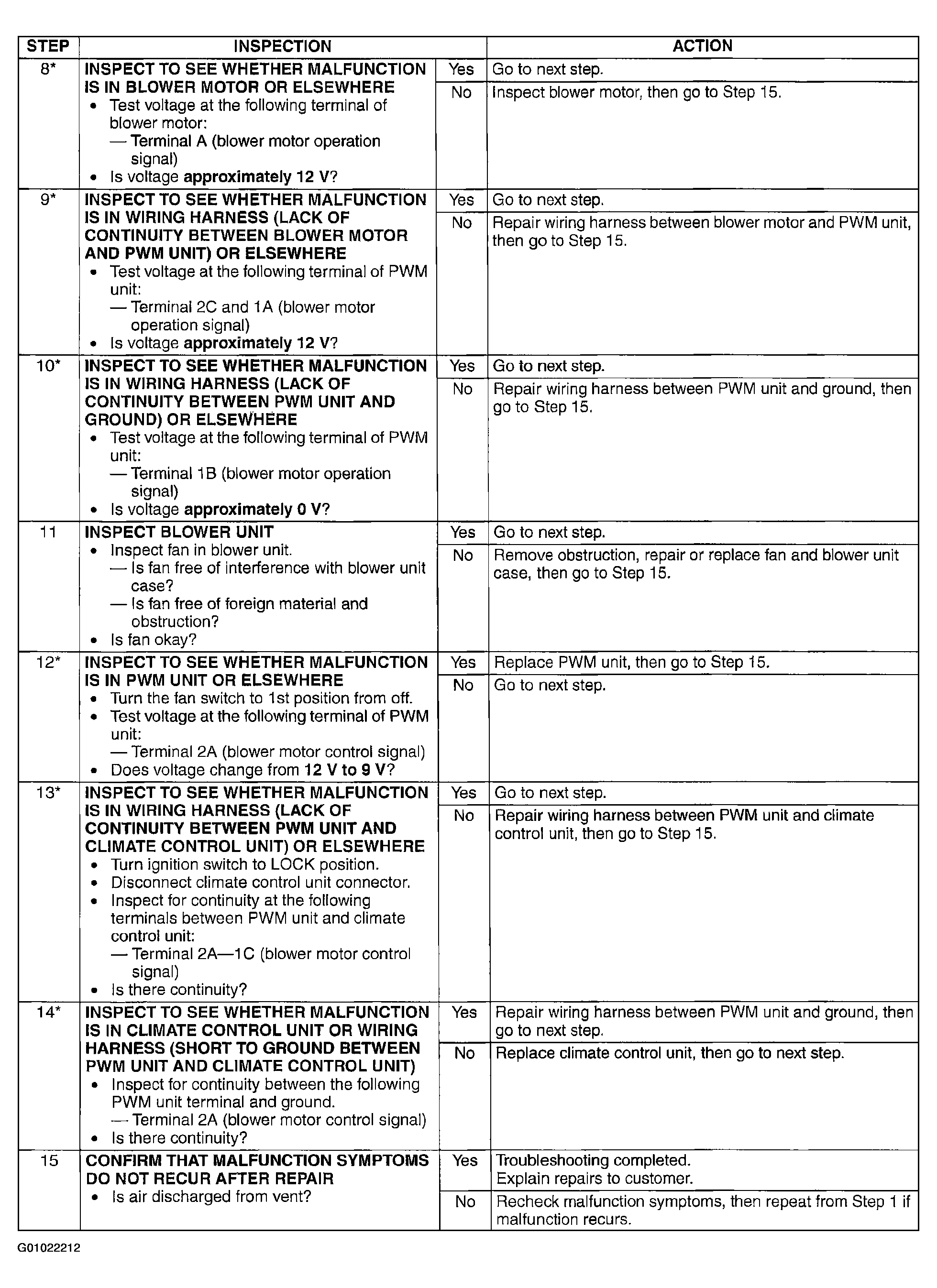

Fig 2: Diagnostic Procedure - Amount Of Air Blown From Vents Does Not Change (Steps 8-15)

Courtesy of MAZDA MOTORS CORP.
