Primary Shaft: Disassembly

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, 2002 Mazda Protege, and 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Remove snap rings as necessary. See Fig 1 . On G25M-R, press off bearing next to 4th gear. On F25M-R, press off 4th gear and bearing together. Press off 4th gear. Press off 3rd gear with clutch hub assembly. Press off bearing on clutch end.

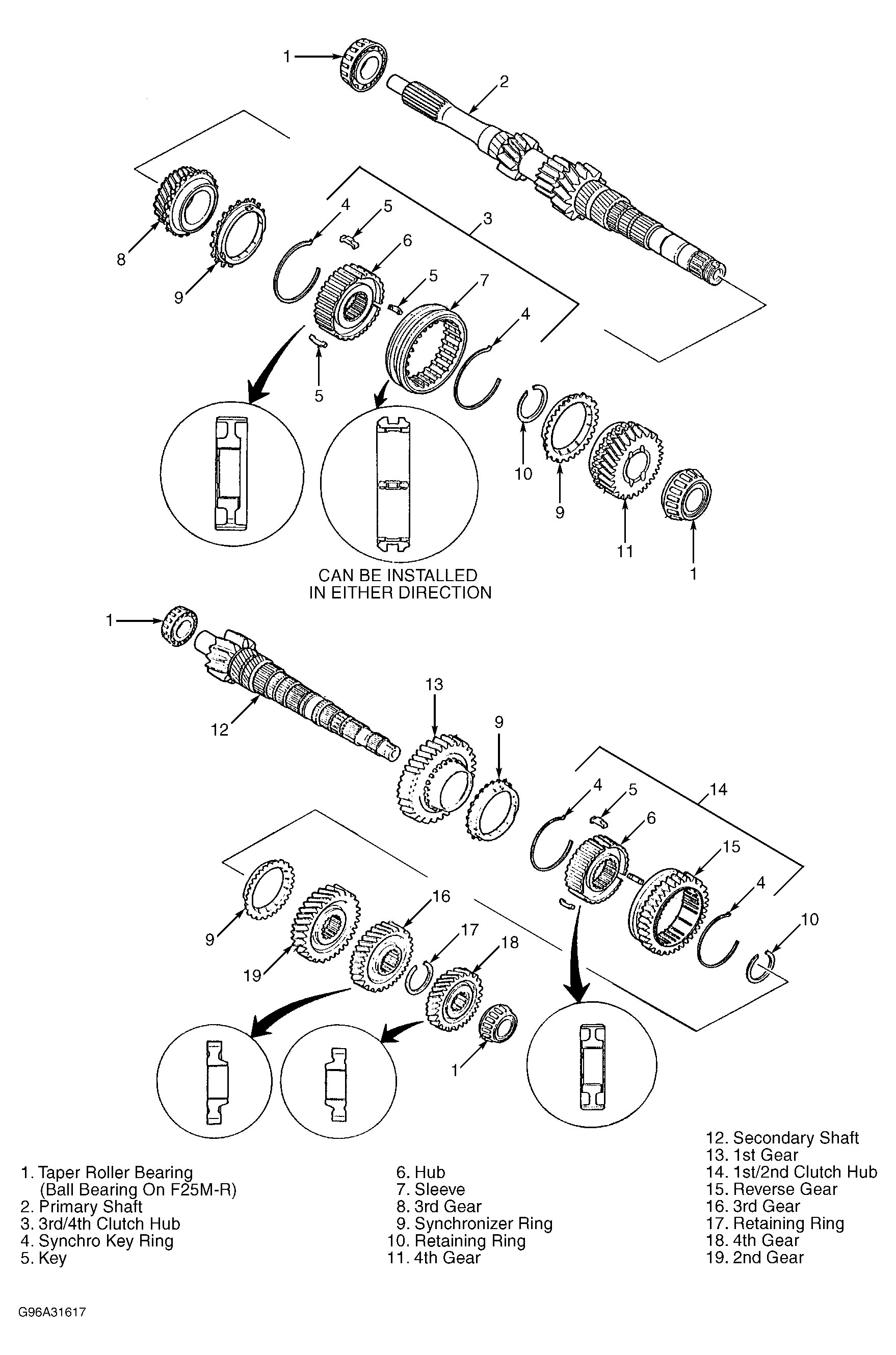

Fig 1: Exploded View Of Primary & Secondary Shafts (G15M-R/G25M-R Shown; F25M-R Is Similar)
G96A31617Courtesy of MAZDA MOTORS CORP.
