Component Disassembly & Reassembly: Differential: Disassembly

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, 2002 Mazda Protege, and 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

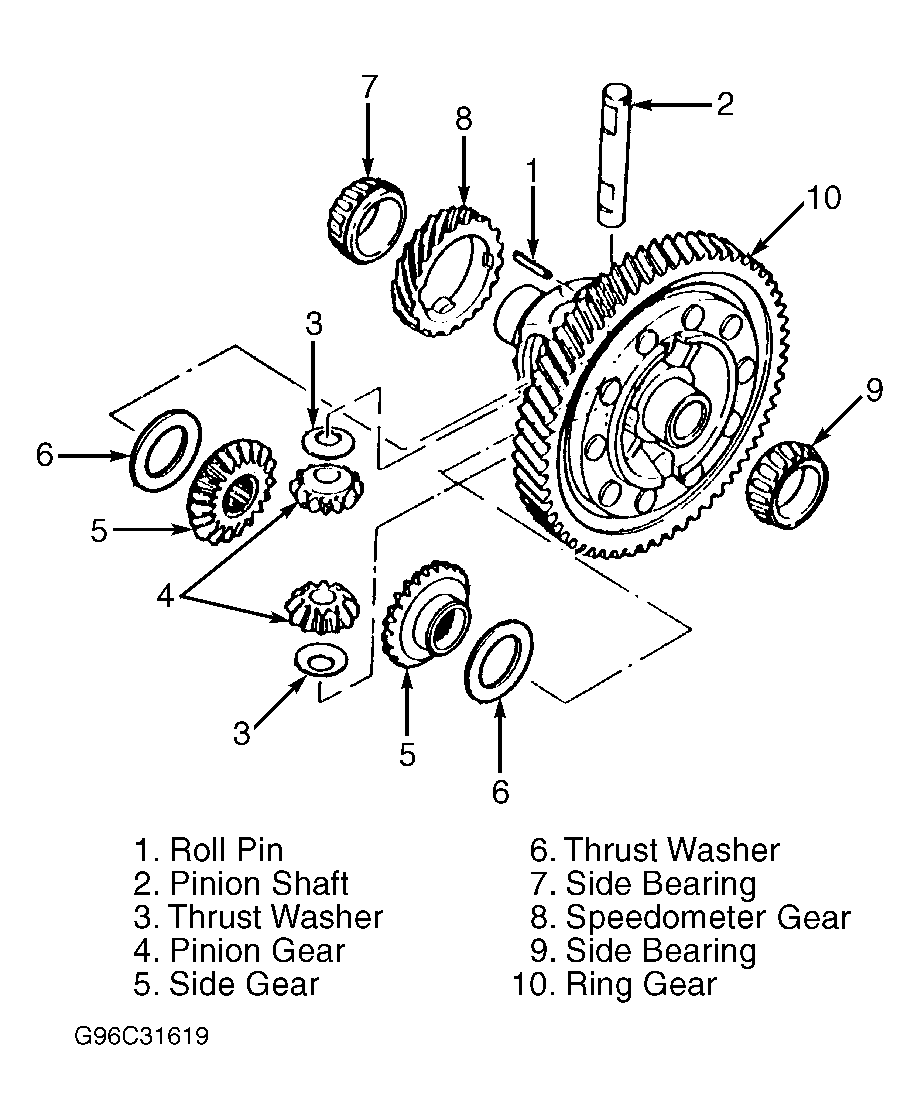

  1. Remove roll pin and pinion shaft. See Figure . Remove pinion gears and rotate thrust washers out of differential housing.
  2. Remove side gears and thrust washers. Using appropriate bearing puller, remove side bearings. DO NOT remove speedometer drive gear unless damaged.
