Primary Shaft

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, 2002 Mazda Protege, and 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install primary shaft assembly into clutch housing. Install transaxle case into clutch housing and tighten bolts to specification. See TORQUE SPECIFICATIONS  .
  2. Mount dial indicator to clutch housing and place plunger on end of primary shaft. See Fig 1 . Zero dial indicator. Pull primary shaft upward and record measurement.
  3. Ensure thrust clearance is within specification. See TRANSAXLE COMPONENT SPECIFICATIONS (F25M-R)  or TRANSAXLE COMPONENT SPECIFICATIONS (G25M-R)  table. Select appropriate shim to adjust clearance. Shims are available in the following thicknesses: 0.004-0.024" (0.10-0.60 mm) in 0.004" (0.10 mm) increments.

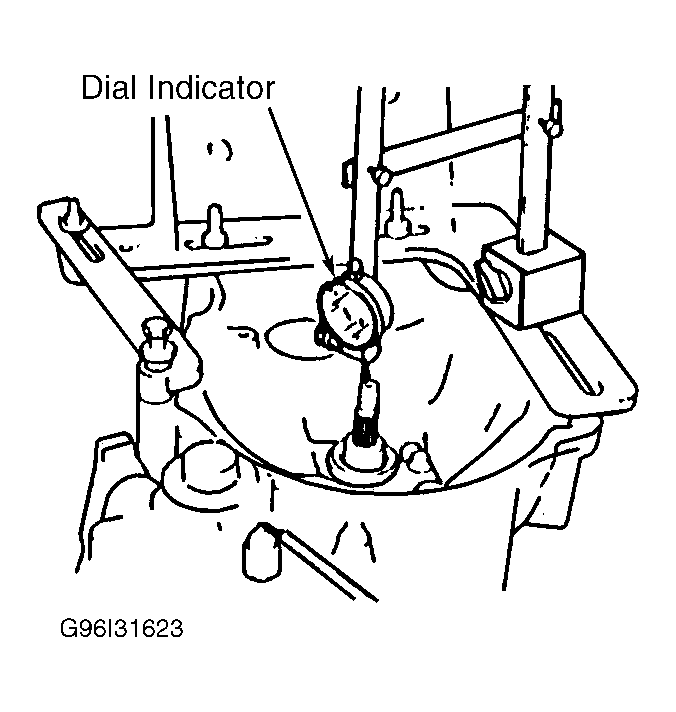

Fig 1: Measuring Primary Shaft Thrust Clearance (F25M-R)
G96I31623Courtesy of MAZDA MOTORS CORP.
