Rear Stabilizer Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the illustration.
  2. Install in the reverse order of removal.

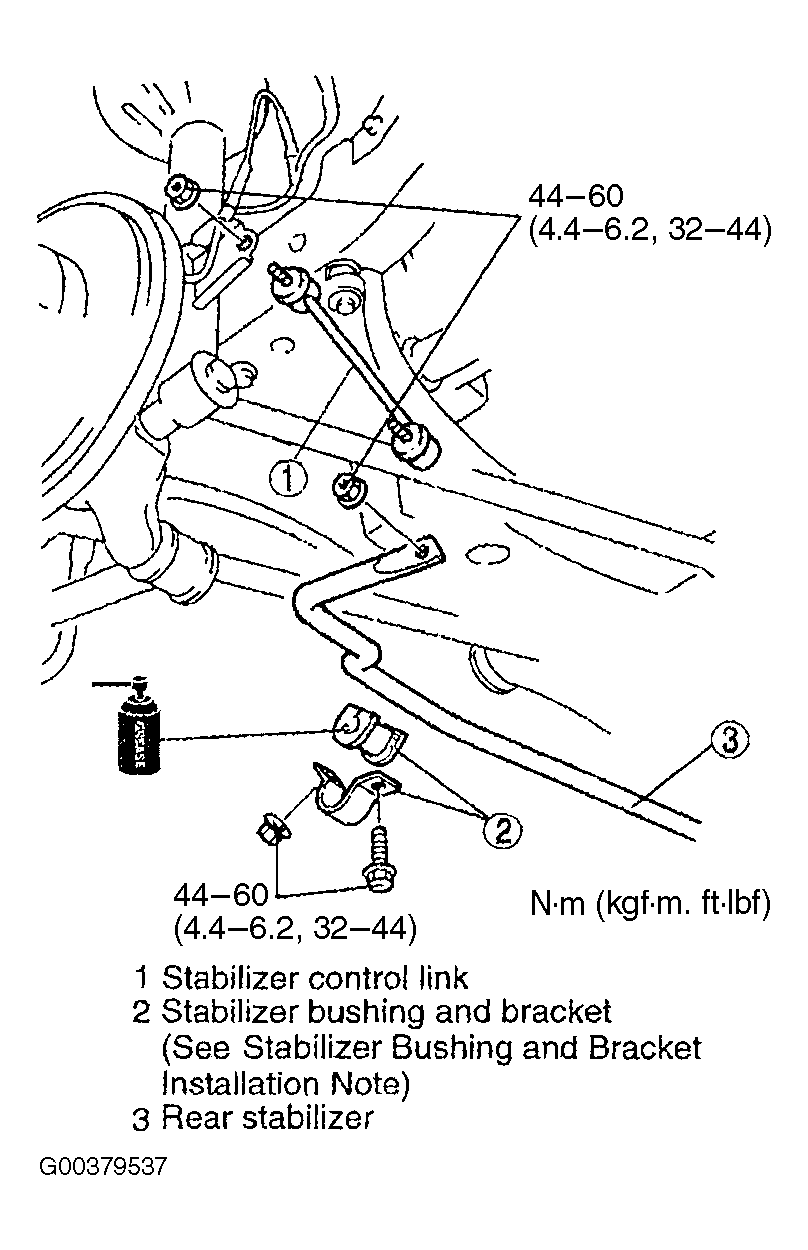

Fig 1: Removing/Installing Rear Stabilizer
G00379537Courtesy of MAZDA MOTORS CORP.
