Front Lateral Link Removal Note

WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the rear crossmember using a jack, then remove the crossmember bolts.

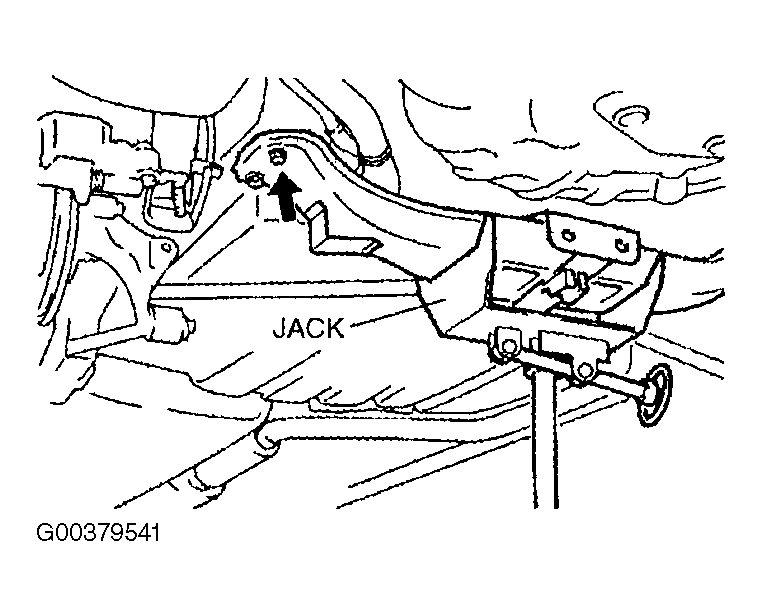

    Fig 1: Supporting Rear Crossmember
    G00379541Courtesy of MAZDA MOTORS CORP.
  2. Lower the crossmember to remove the lateral link bolt.
