Rear Crossmember Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear stabilizer. See REAR STABILIZER REMOVAL/INSTALLATION  .
  2. Remove the front and rear lateral links. See LATERAL LINK AND TRAILING LINK REMOVAL/INSTALLATION  .
  3. Remove in the order indicated in the illustration.

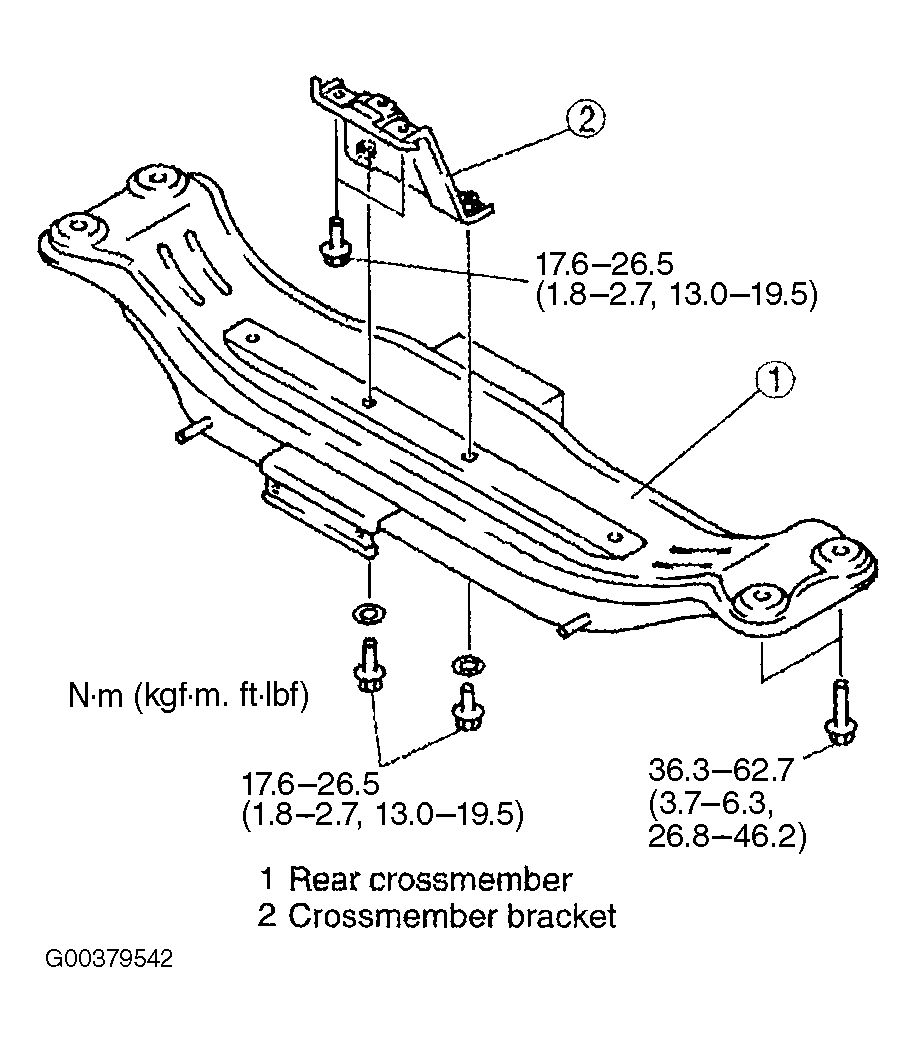

    Fig 1: Removing/Installing Rear Crossmember
    G00379542Courtesy of MAZDA MOTORS CORP.
