Front Strut Bar: Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the illustration.

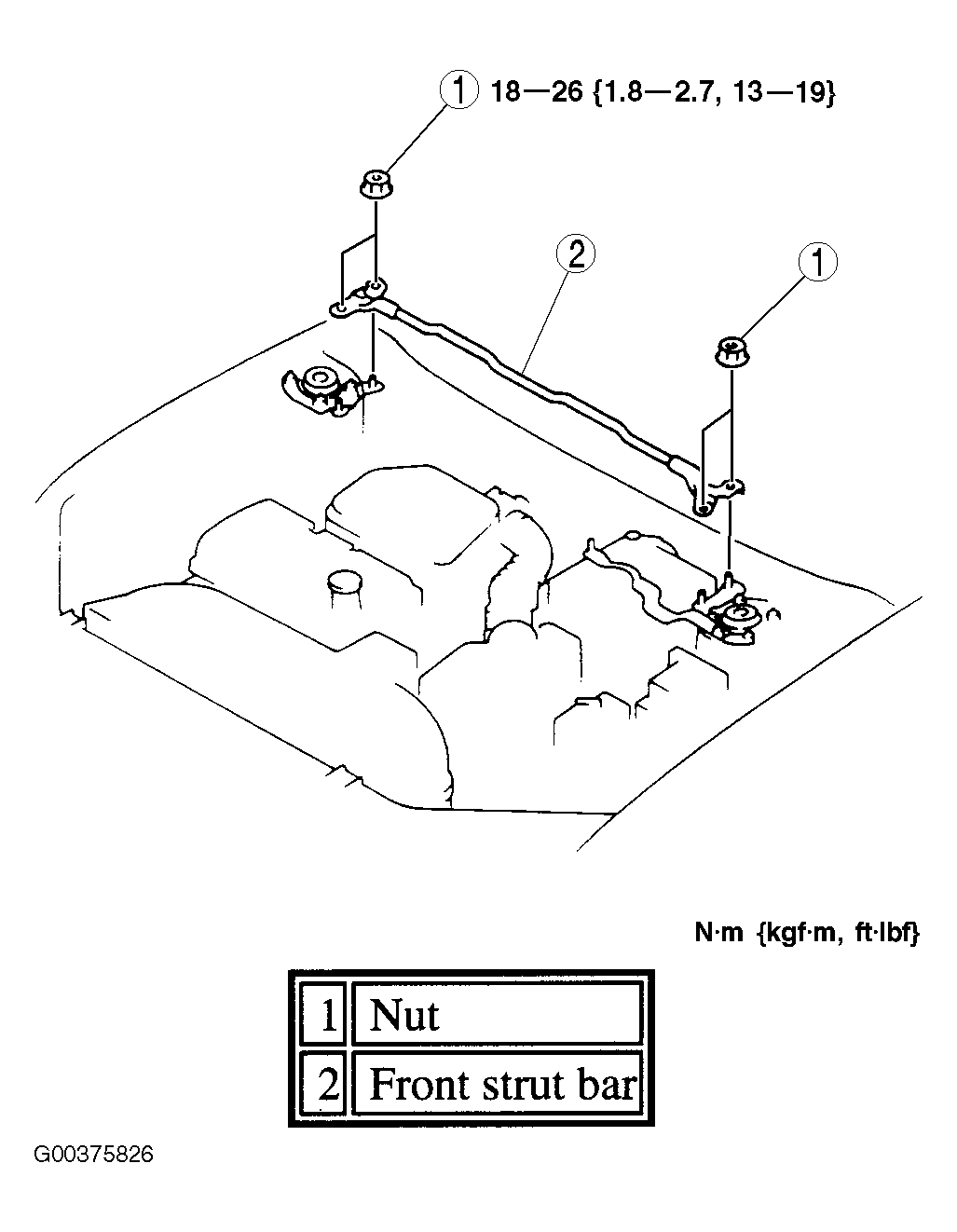

    Fig 1: Removing Front Strut Bar
    G00375826Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
