Front Shock Absorber & Spring Installation Note

WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.

Face the mounting block direction indicator toward the rear outboard position, and install the shock absorber.

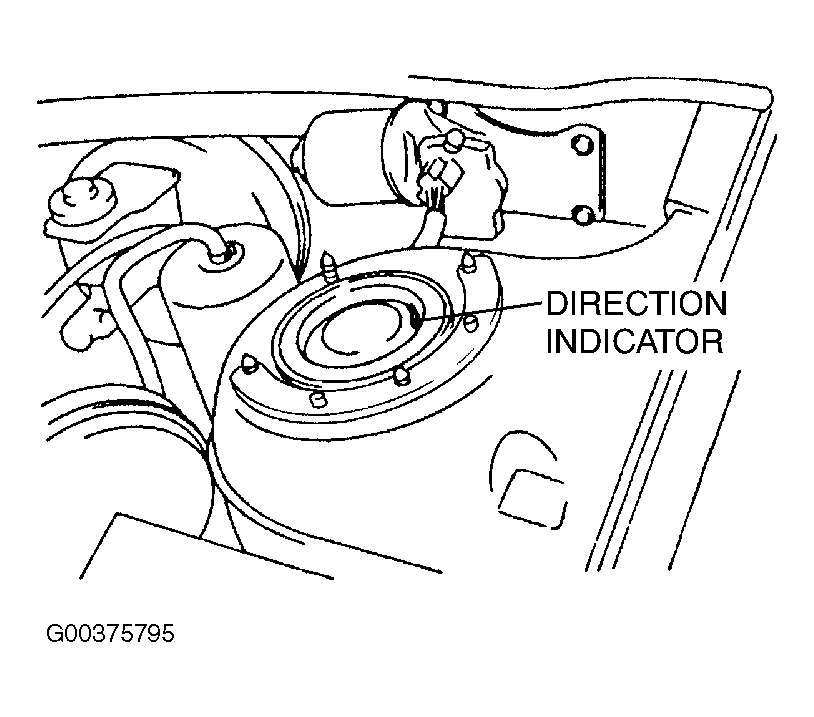

Fig 1: Identifying Directional Indicator

Courtesy of MAZDA MOTORS CORP.
