Front CROSSMEMBER: Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, and 2002 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. For the MTX models, remove the change control rod and extension bar. See MANUAL TRANSAXLE REMOVAL/INSTALLATION .
  2. Remove the front exhaust pipe. See EXHAUST SYSTEM REMOVAL/INSTALLATION .
  3. Remove the transverse member. See TRANSVERSE MEMBER  REMOVAL/INSTALLATION.
  4. Remove the steering gear and linkage. See STEERING GEAR & LINKAGE  REMOVAL/INSTALLATION.
  5. Remove the front lower arm. See FRONT LOWER ARM  ARM REMOVAL/INSTALLATION.
  6. Remove in the order indicated in the illustration.

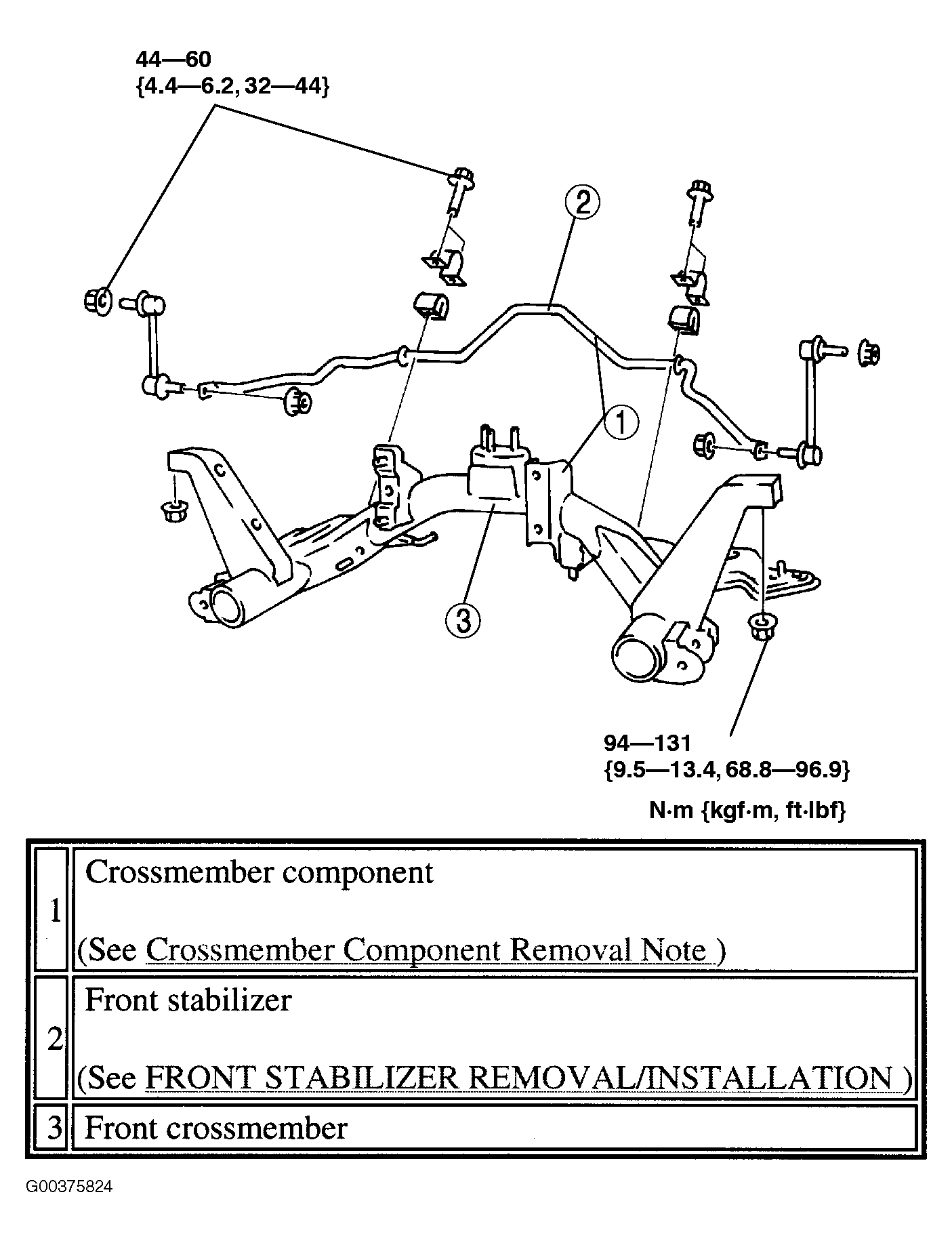

    Fig 1: Removing Front Crossmember
    G00375824Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
  8. Inspect the front wheel alignment as necessary.
