Pinpoint Test 6: Incorrect Tire Wear

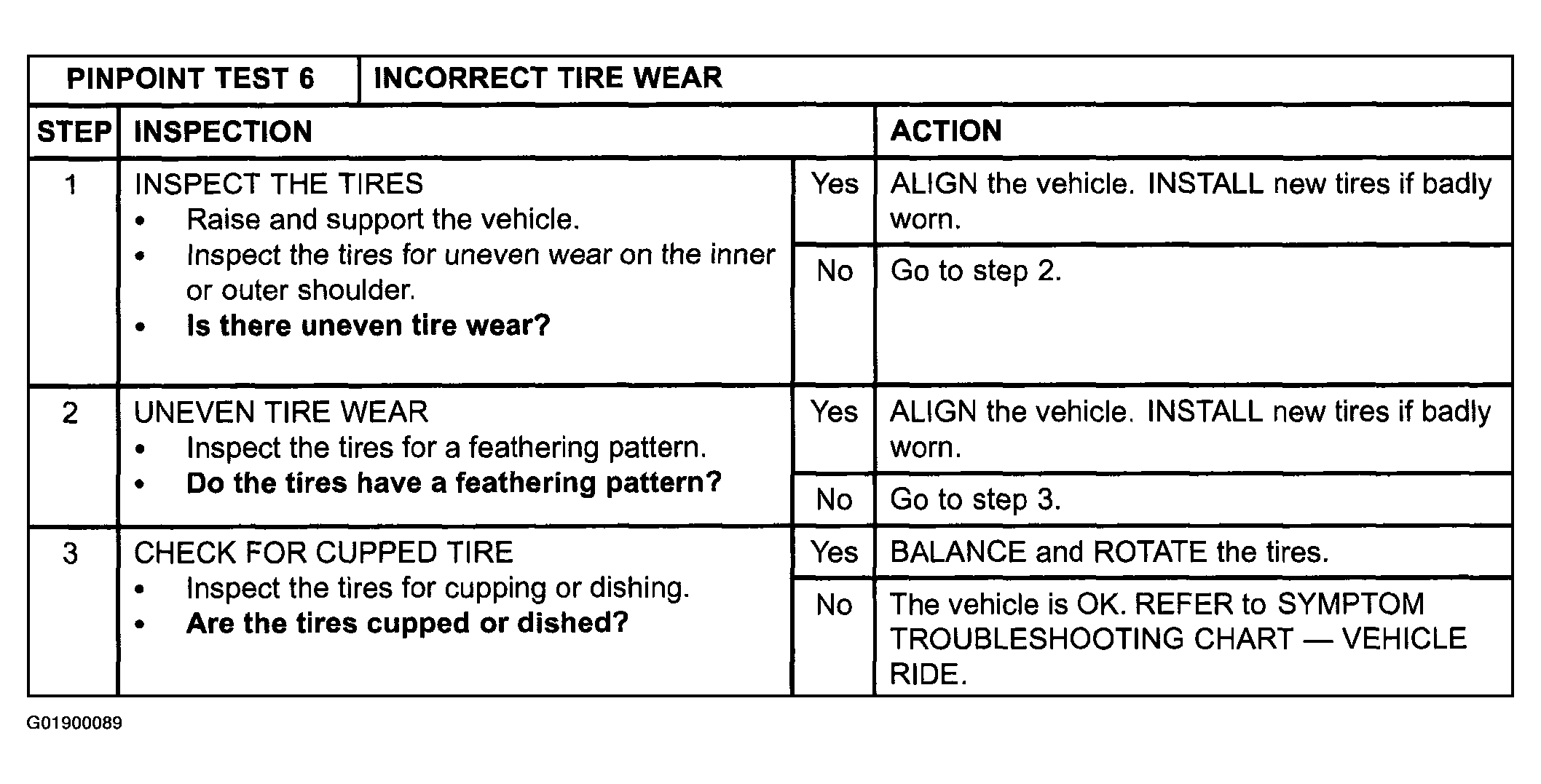

Fig 1: Pinpoint Test 6: Incorrect Tire Wear

G01900089

Courtesy of MAZDA MOTORS CORP.
