Home >> Mazda >> 2003 >> Tribute ES, 4WD >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Symptom Troubleshooting (Suspension, Wheel & Tire) >> Symptom Troubleshooting Chart - Vehicle Ride >> Pinpoint Test 1: Drift Left Or Right

Pinpoint Test 1: Drift Left Or Right

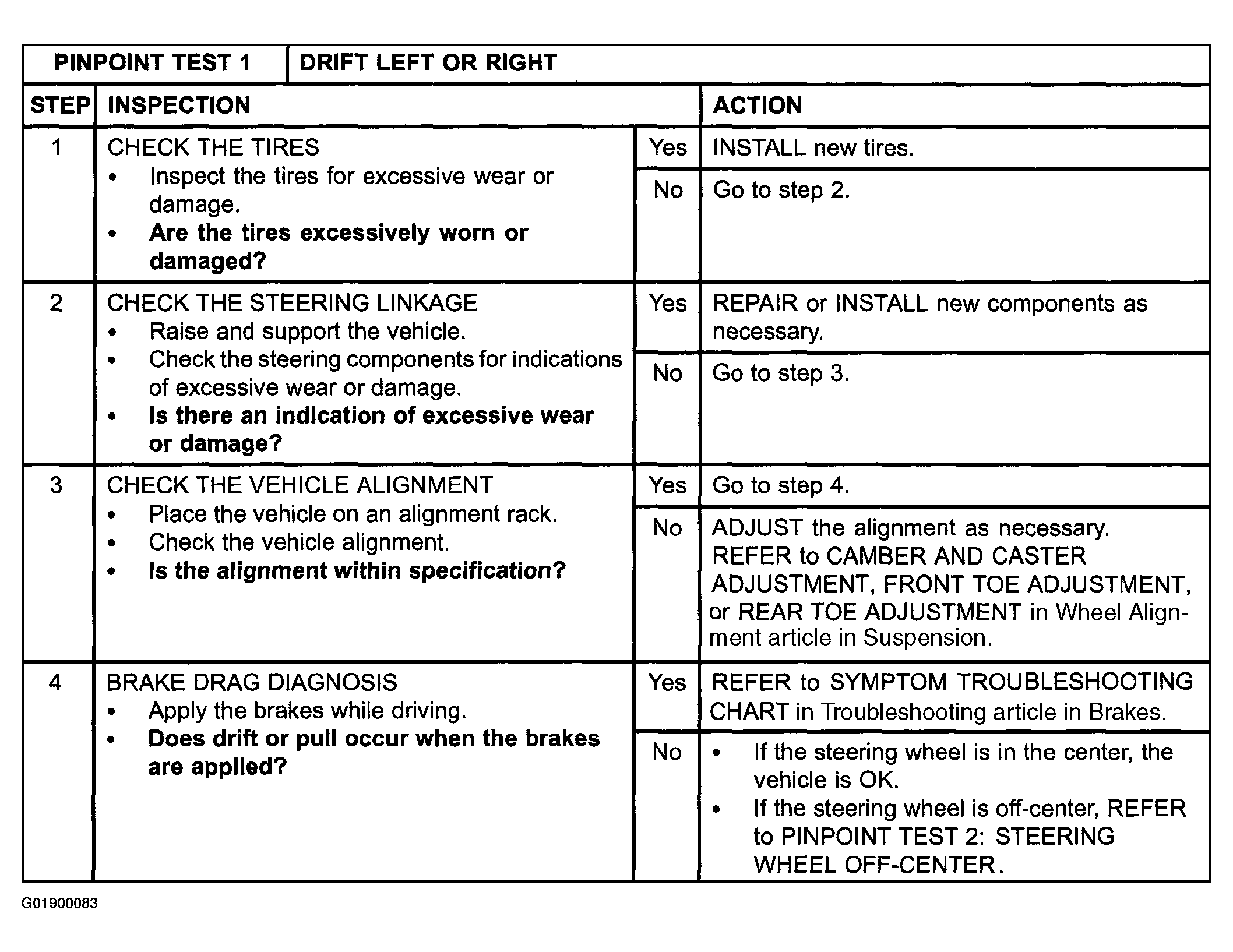

Fig 1: Pinpoint Test 1: Drift Left Or Right

G01900083

Courtesy of MAZDA MOTORS CORP.
