Symptom Troubleshooting Chart - Transaxle (Automatic) Noise/Vibration

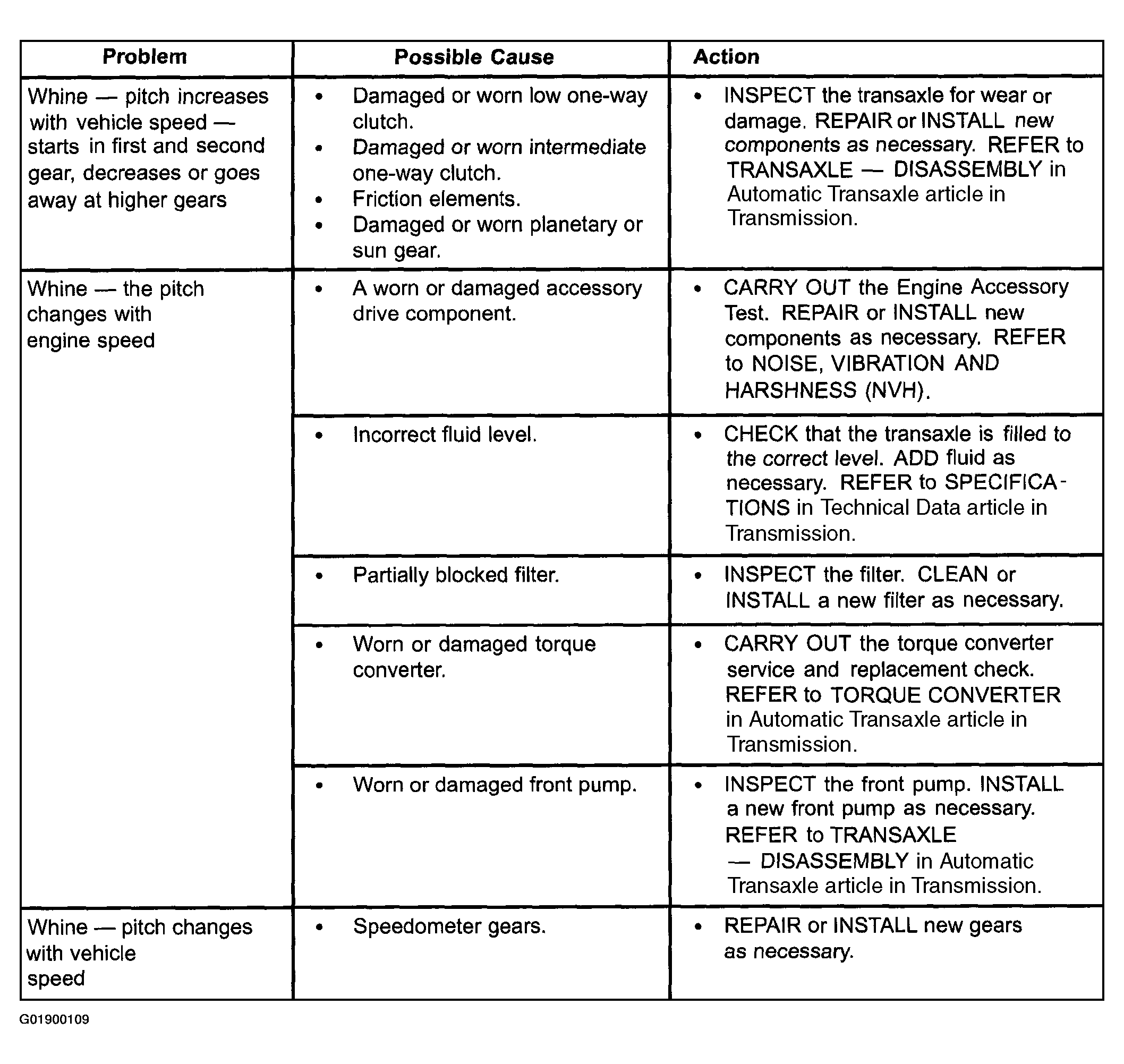

Fig 1: Problem Symptom Chart - Transaxle (Automatic) Noise/Vibration (1 Of 5)

Courtesy of MAZDA MOTORS CORP.

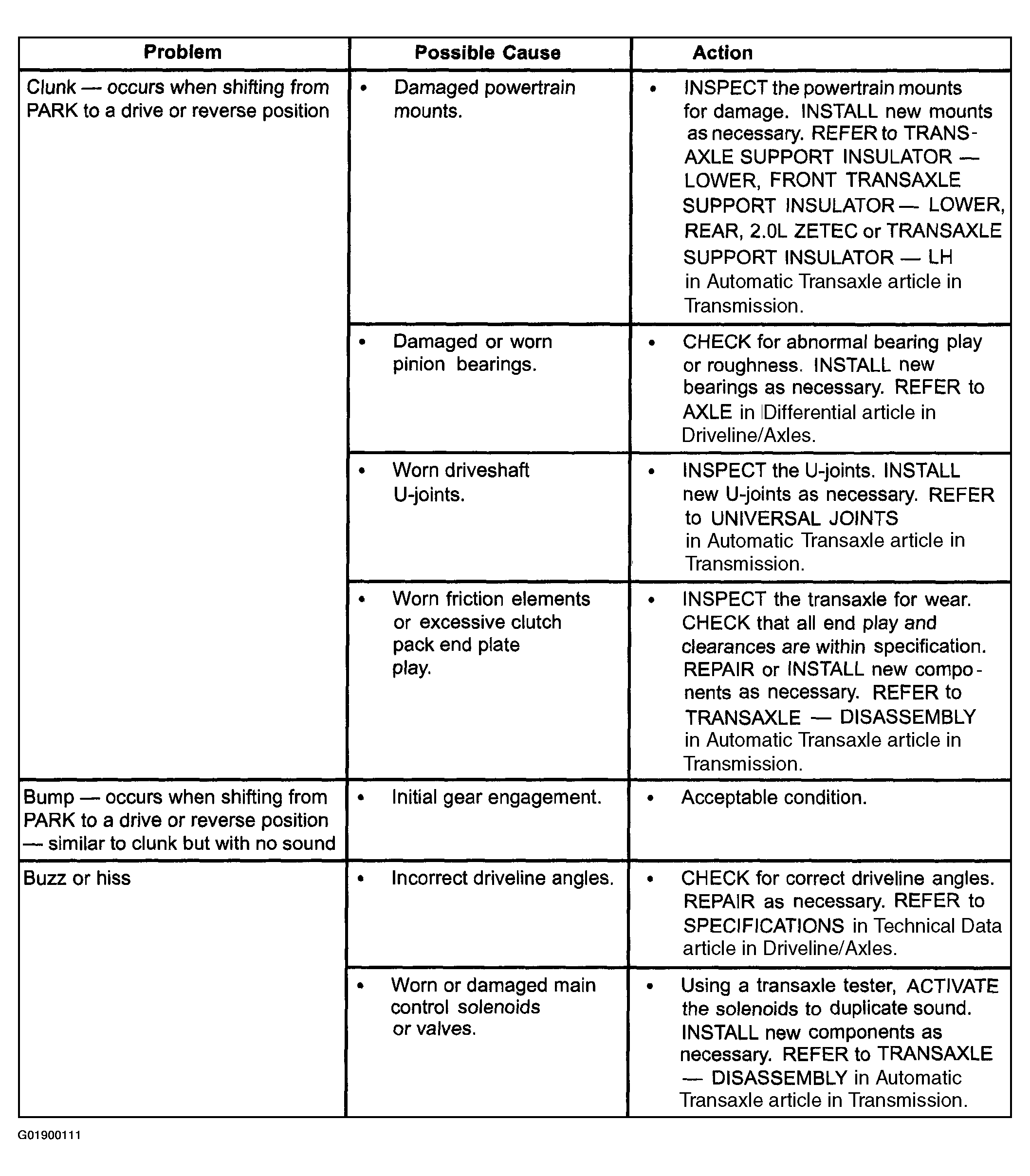

Fig 2: Problem Symptom Chart - Transaxle (Automatic) Noise/Vibration (2 Of 5)

Courtesy of MAZDA MOTORS CORP.

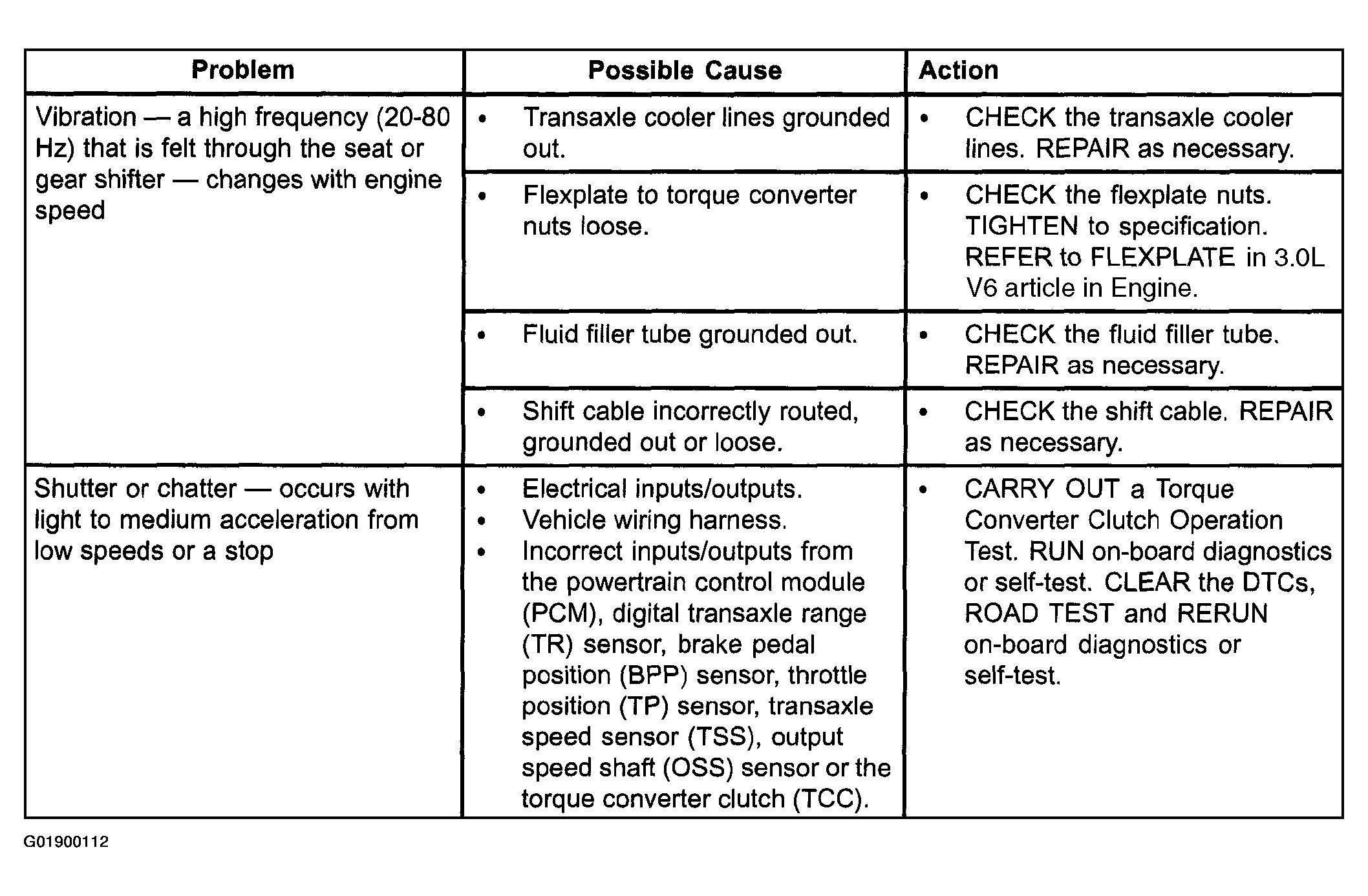

Fig 3: Problem Symptom Chart - Transaxle (Automatic) Noise/Vibration (3 Of 5)

Courtesy of MAZDA MOTORS CORP.

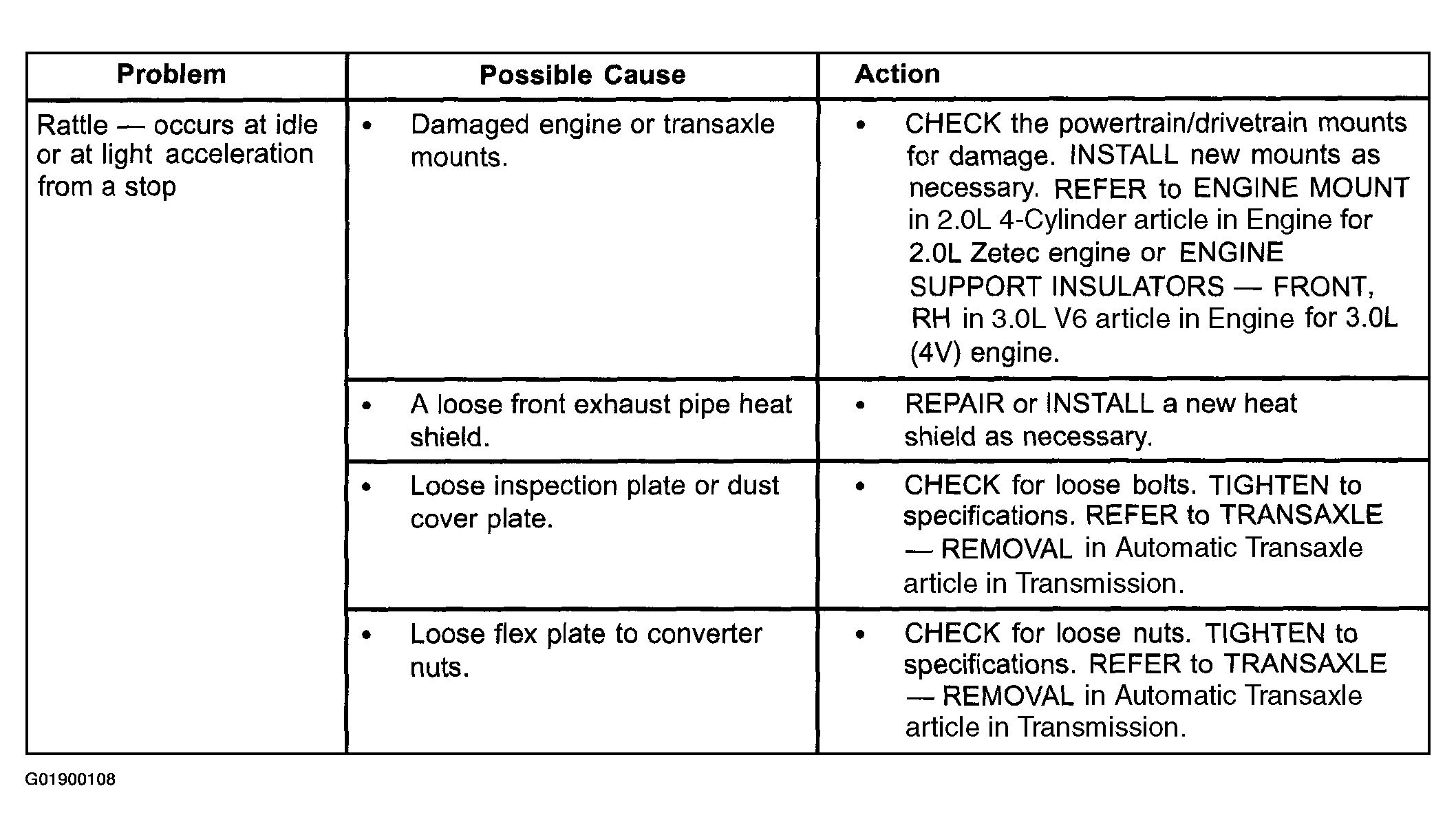

Fig 4: Problem Symptom Chart - Transaxle (Automatic) Noise/Vibration (4 Of 5)

Courtesy of MAZDA MOTORS CORP.

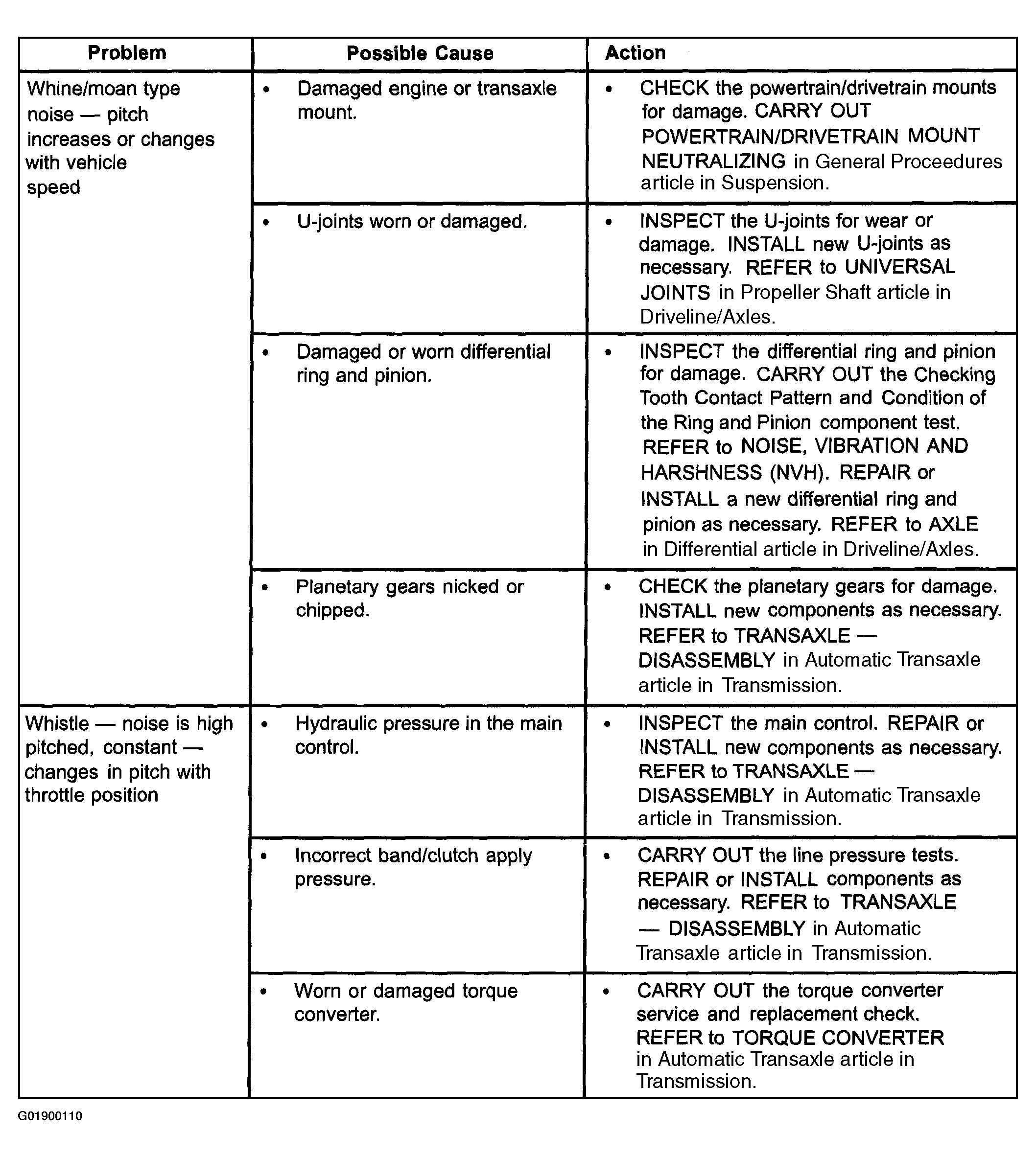

Fig 5: Problem Symptom Chart - Transaxle (Automatic) Noise/Vibration (5 Of 5)

Courtesy of MAZDA MOTORS CORP.
