Pinpoint Test 2: Wheel And Tire

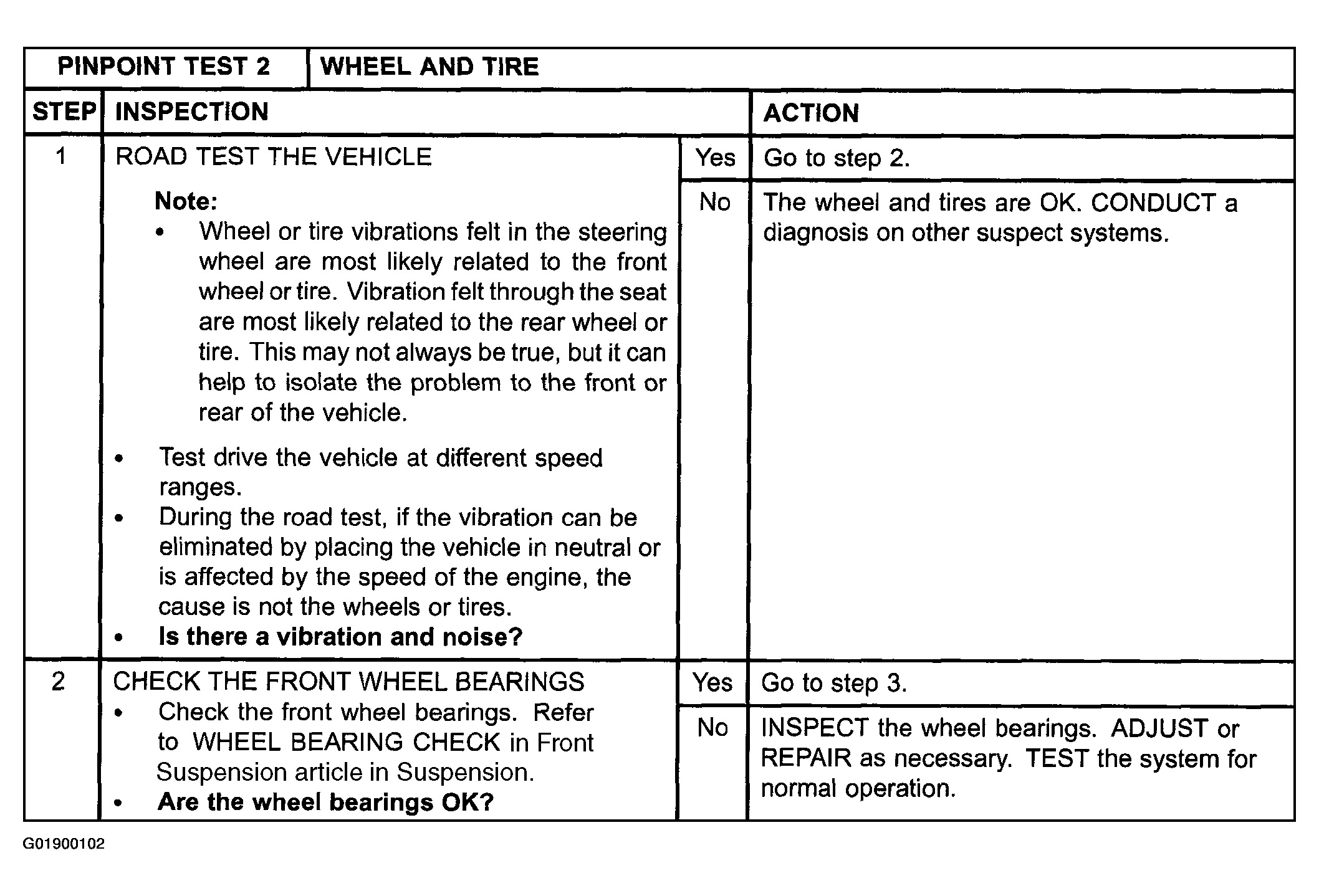

Fig 1: Pinpoint Test 2: Wheel And Tire (Steps 1-2)
G01900102Courtesy of MAZDA MOTORS CORP.

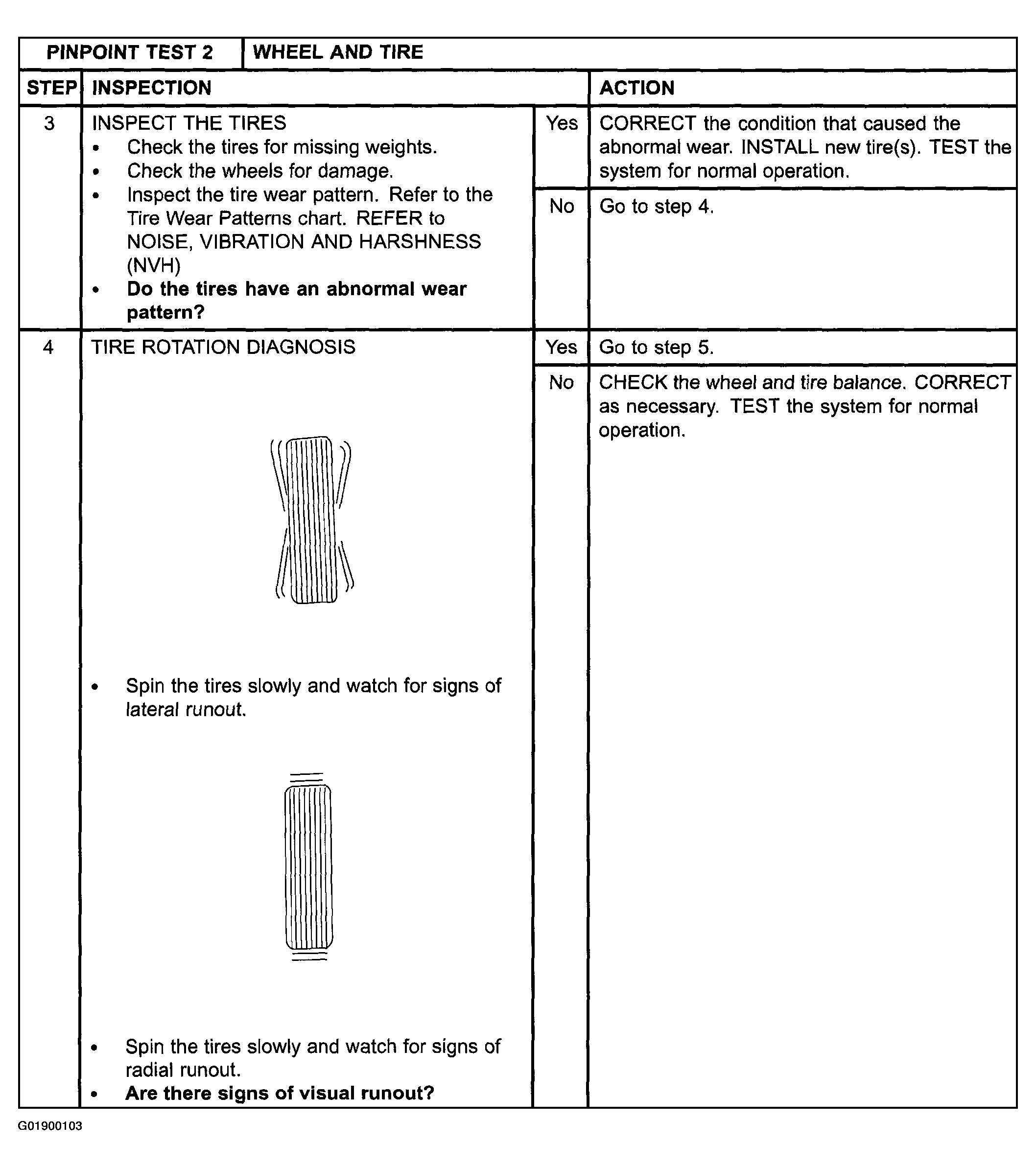

Fig 2: Pinpoint Test 2: Wheel And Tire (Steps 3-4)
G01900103Courtesy of MAZDA MOTORS CORP.

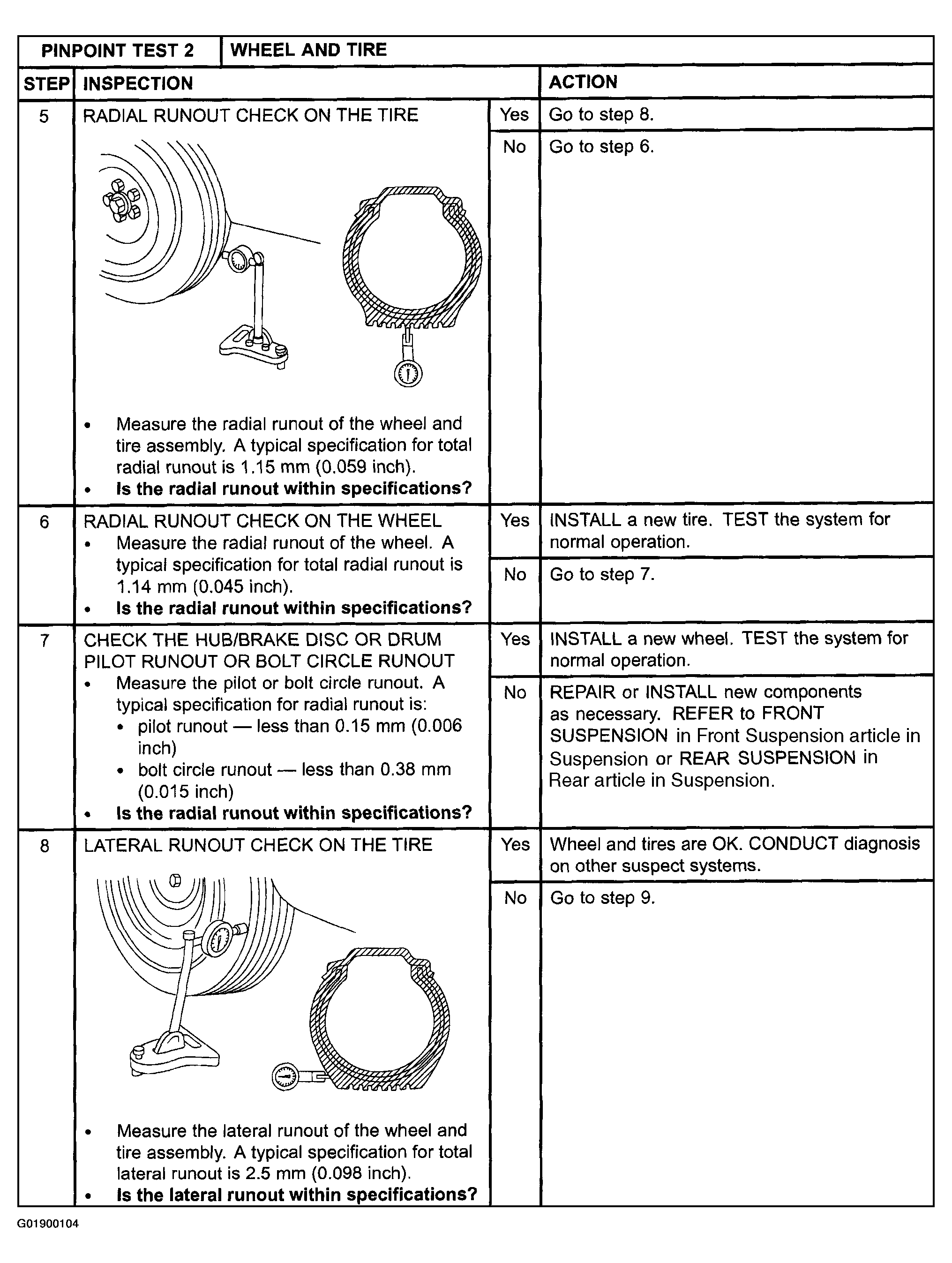

Fig 3: Pinpoint Test 2: Wheel And Tire (Steps 5-8)
G01900104Courtesy of MAZDA MOTORS CORP.

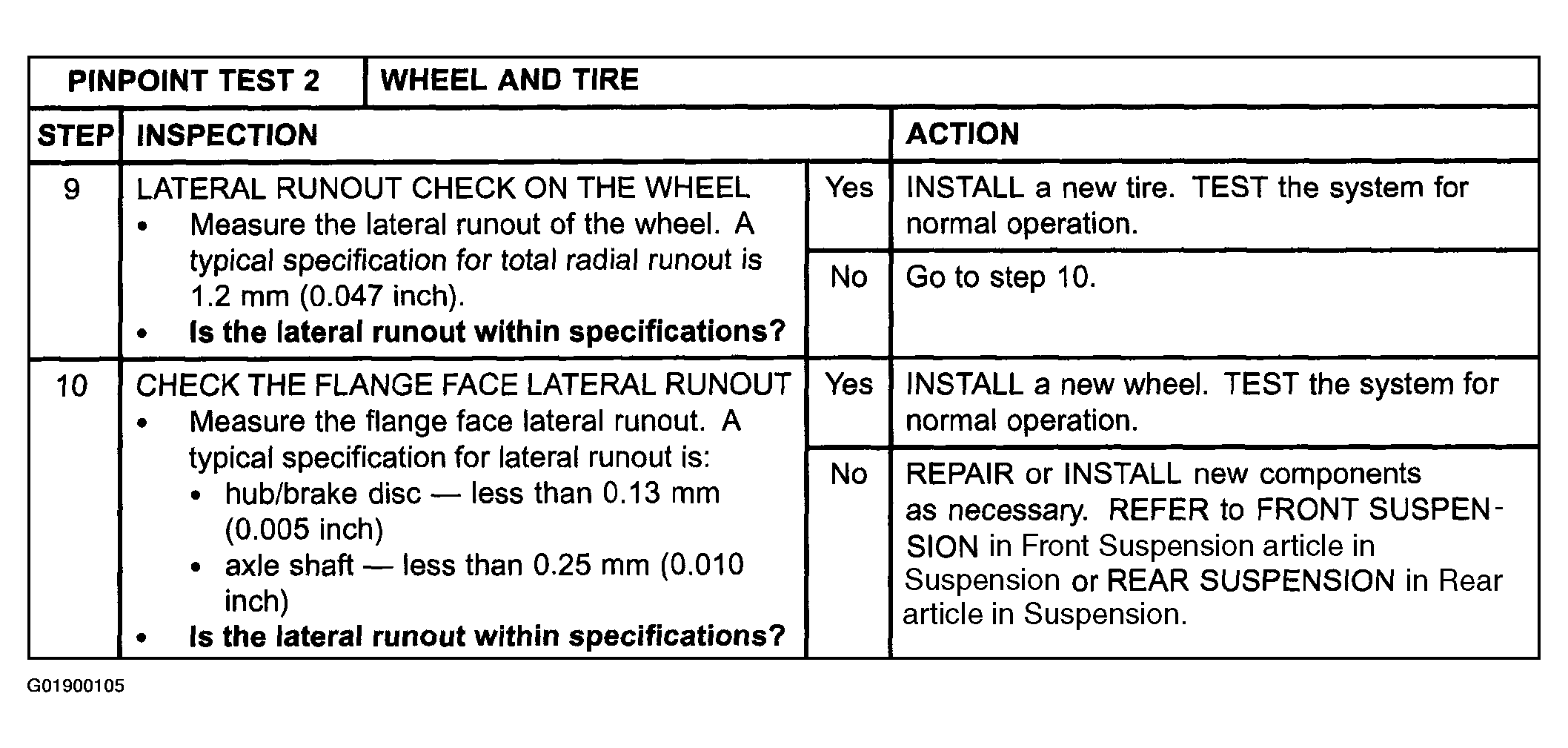

Fig 4: Pinpoint Test 2: Wheel And Tire (Steps 9-10)
G01900105Courtesy of MAZDA MOTORS CORP.
