Symptom Troubleshooting Chart - Squeak And Rattle

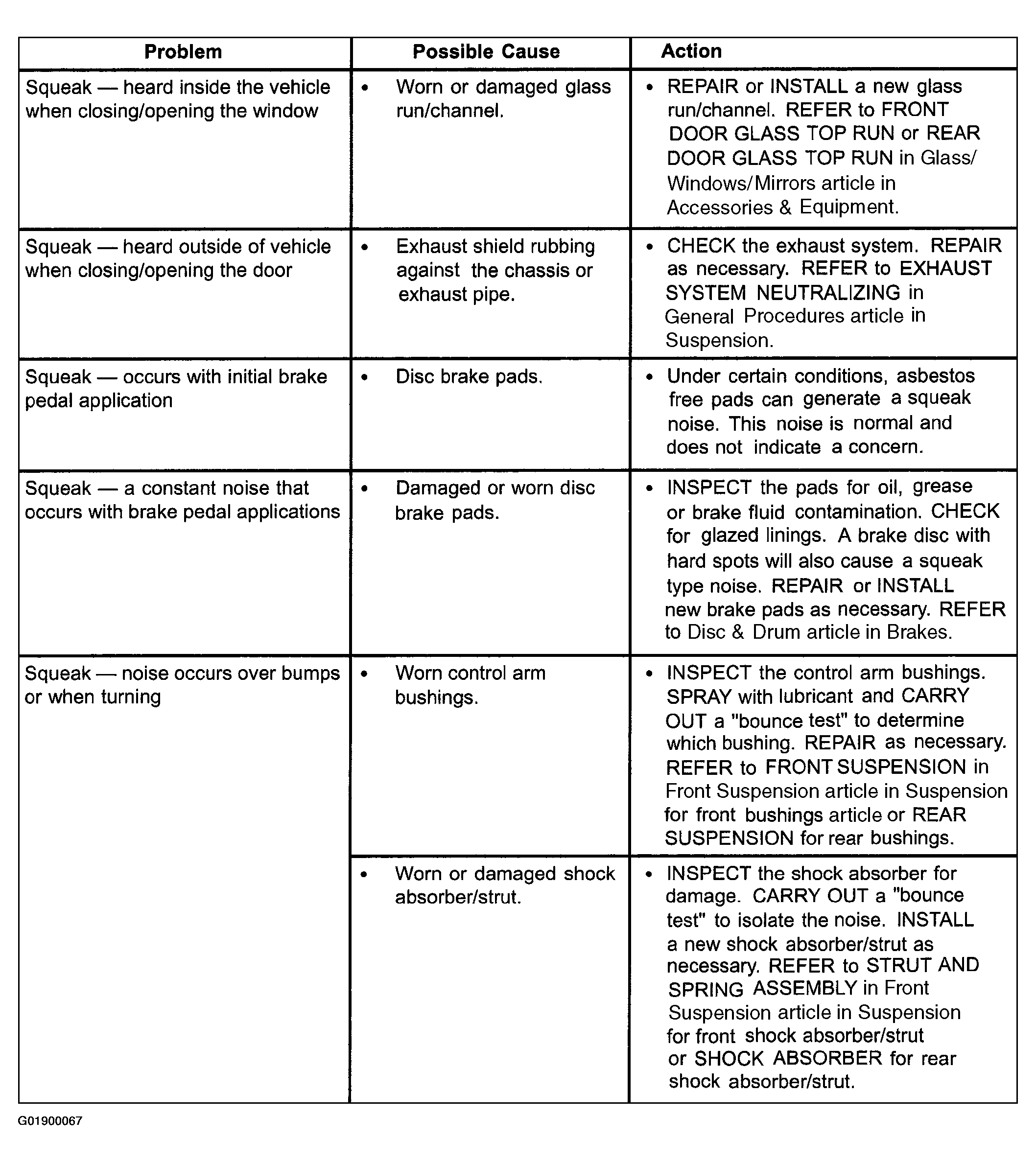

Fig 1: Problem Symptom Chart - Squeak And Rattle (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

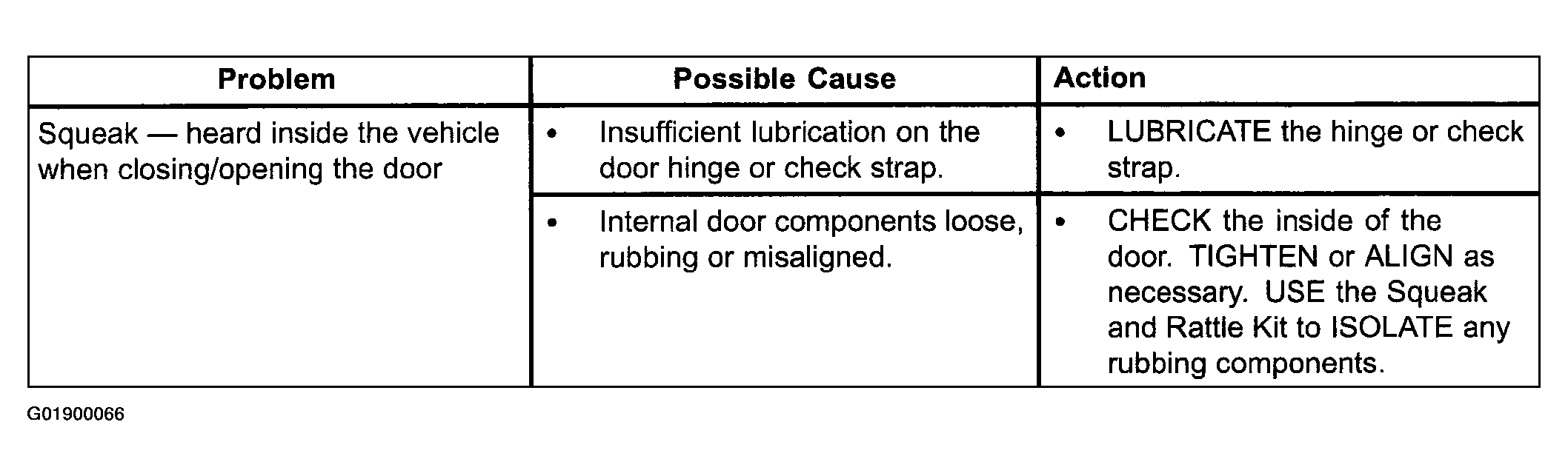

Fig 2: Problem Symptom Chart - Squeak And Rattle (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

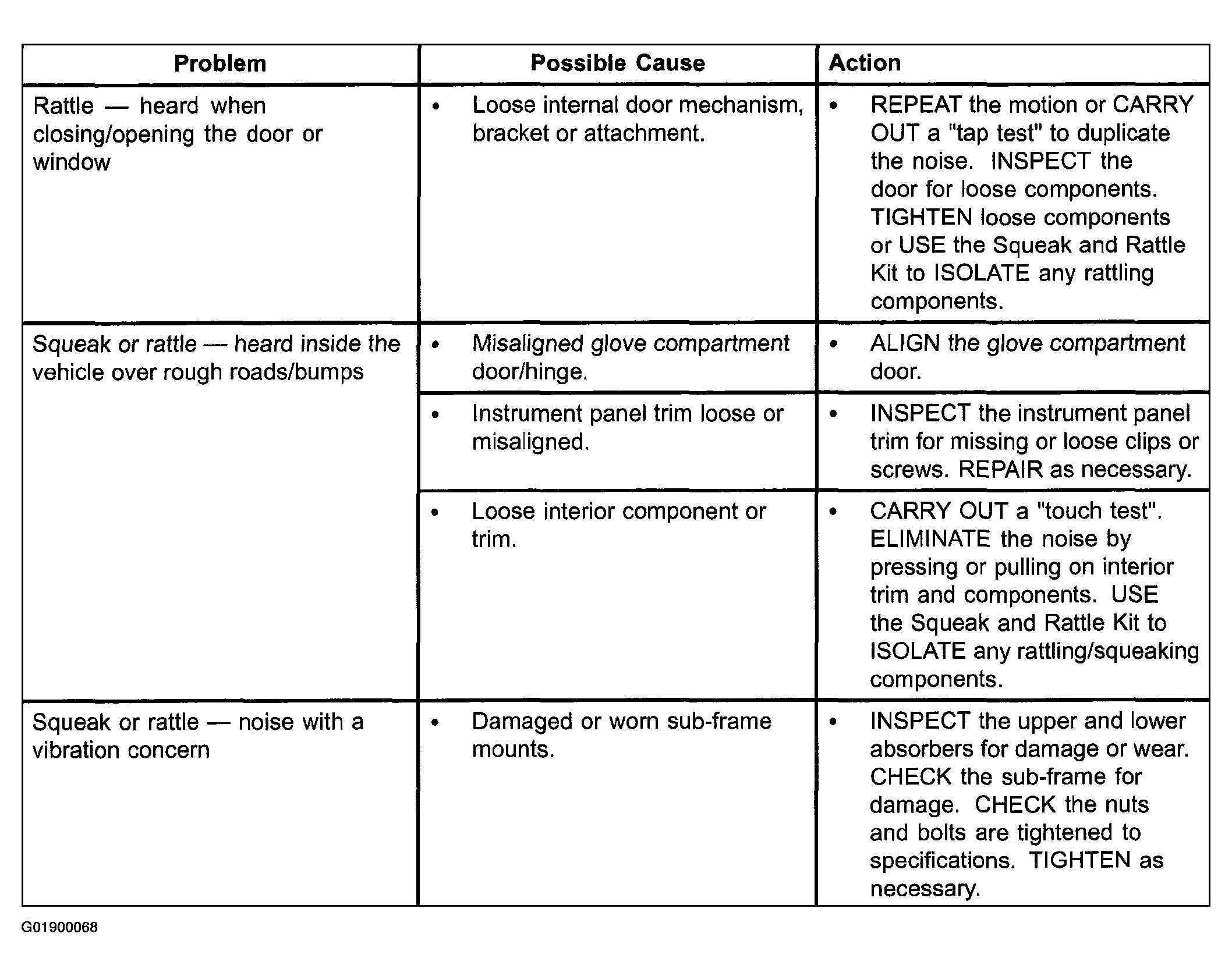

Fig 3: Problem Symptom Chart - Squeak And Rattle (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
