Pinpoint Test 1: Front Engine Accessory Drive Bearing Hoot

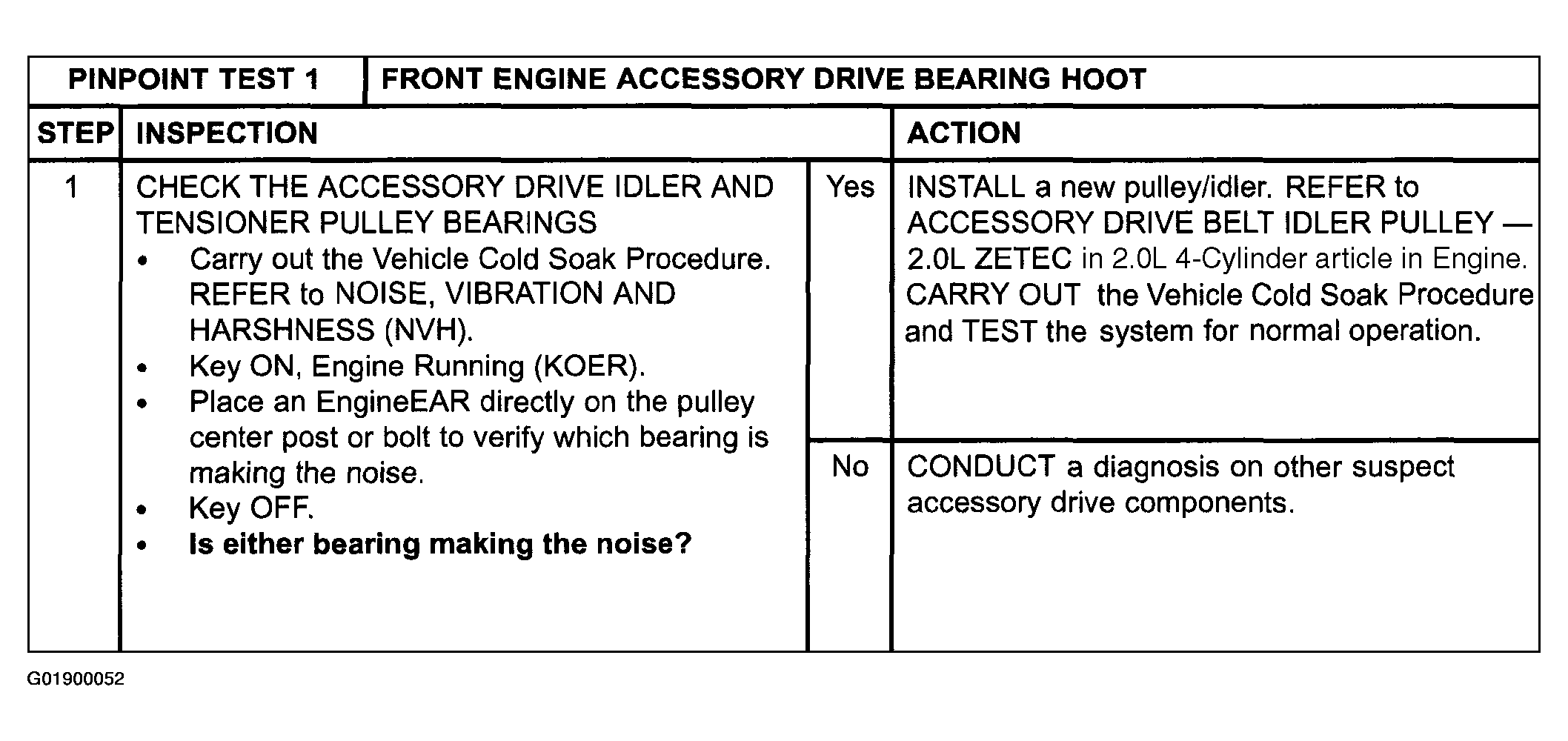

Fig 1: Pinpoint Test 1: Front Engine Accessory Drive Bearing Hoot
G01900052Courtesy of MAZDA MOTORS CORP.
