Home >> Mazda >> 2003 >> Tribute 2WD L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Braking Sensor/Switch >> Locations

Braking Sensor/Switch: Locations

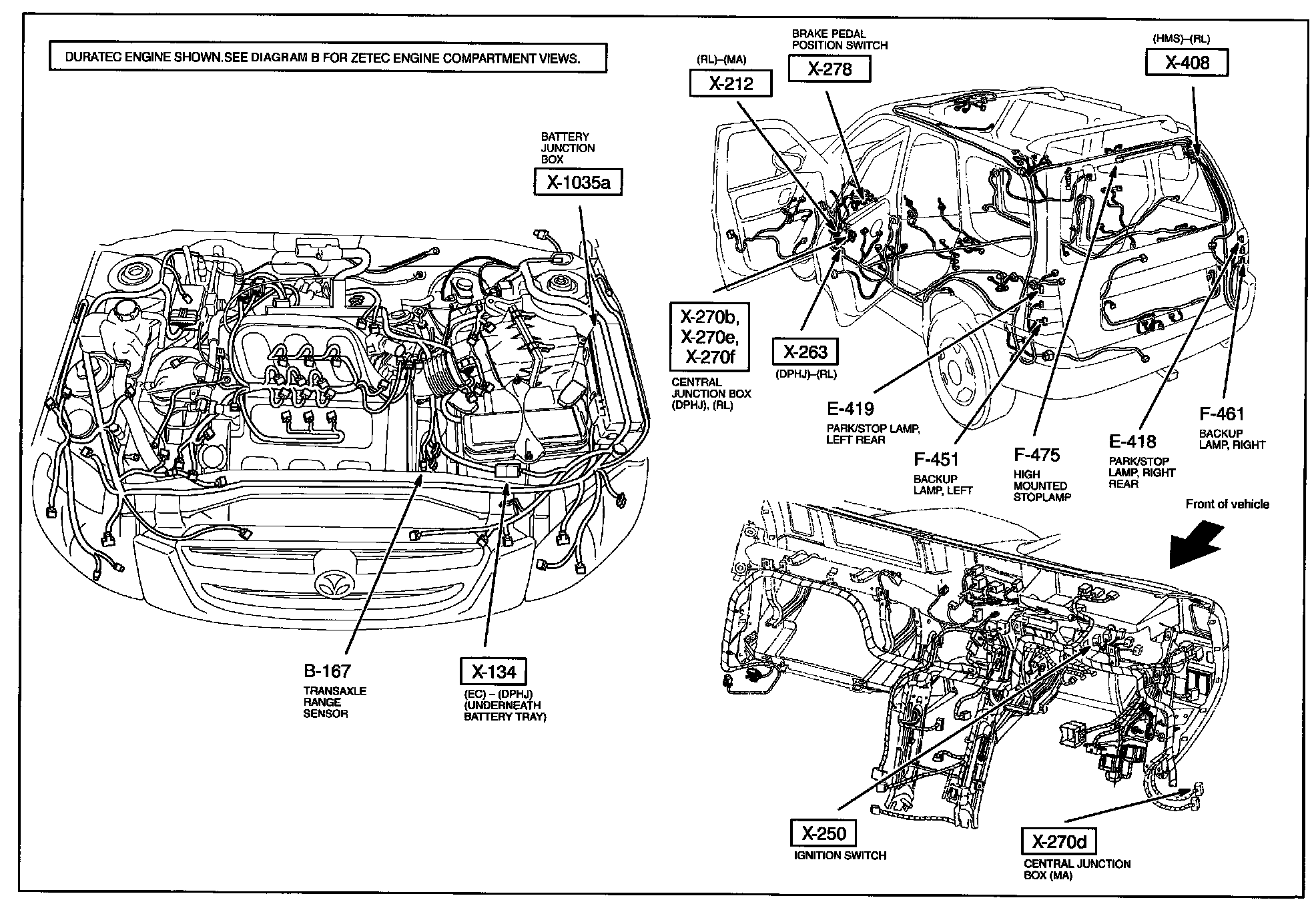

Routing View F-2:
