Inspection of Diagnostic Trouble Codes (DTC)

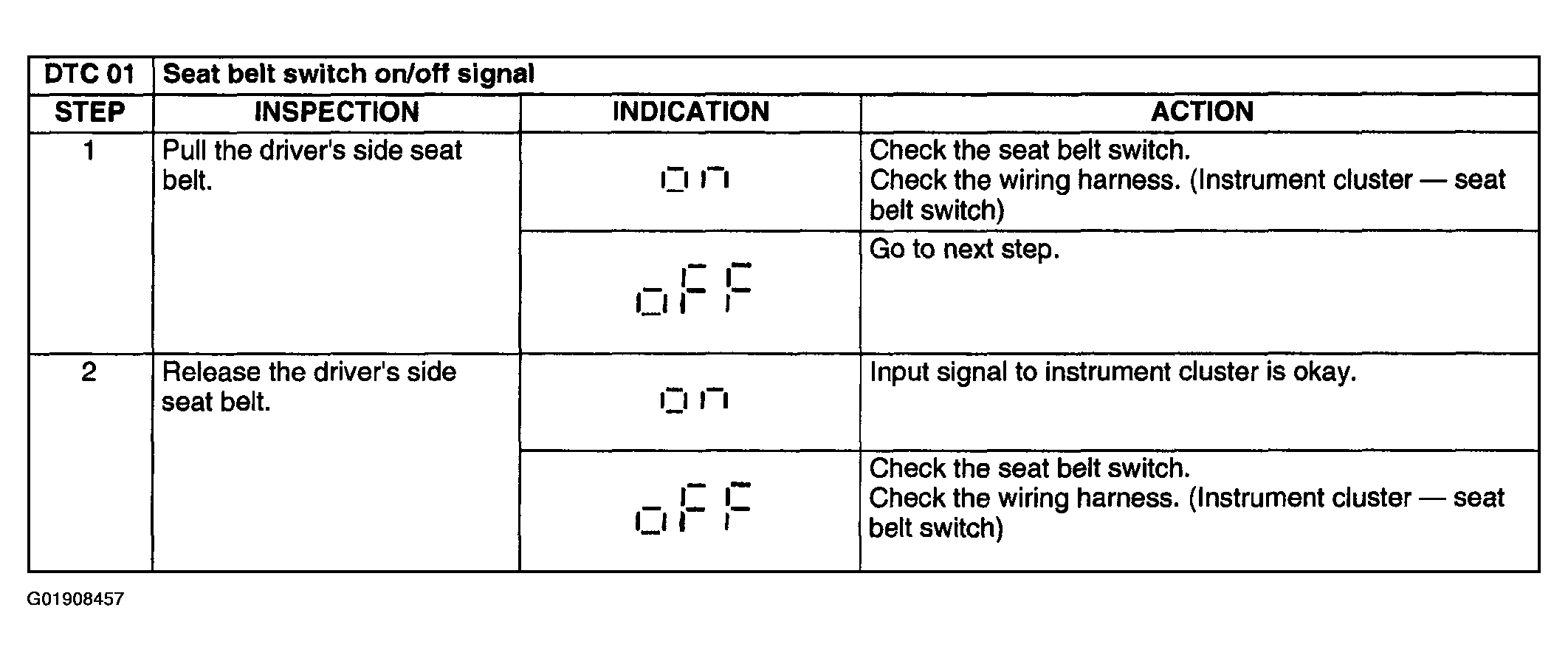

Fig 1: Diagnostic Trouble Codes (DTC 01) Inspection Chart
G01908457Courtesy of MAZDA MOTORS CORP.

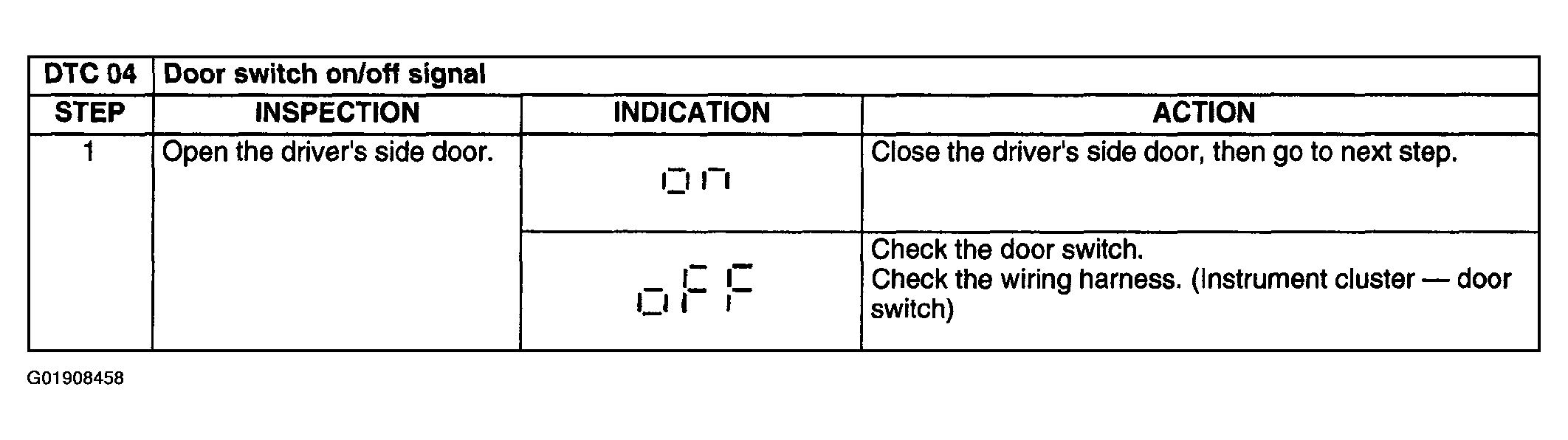

Fig 2: Diagnostic Trouble Codes (DTC 04) Inspection Chart (1 Of 2)
G01908458Courtesy of MAZDA MOTORS CORP.

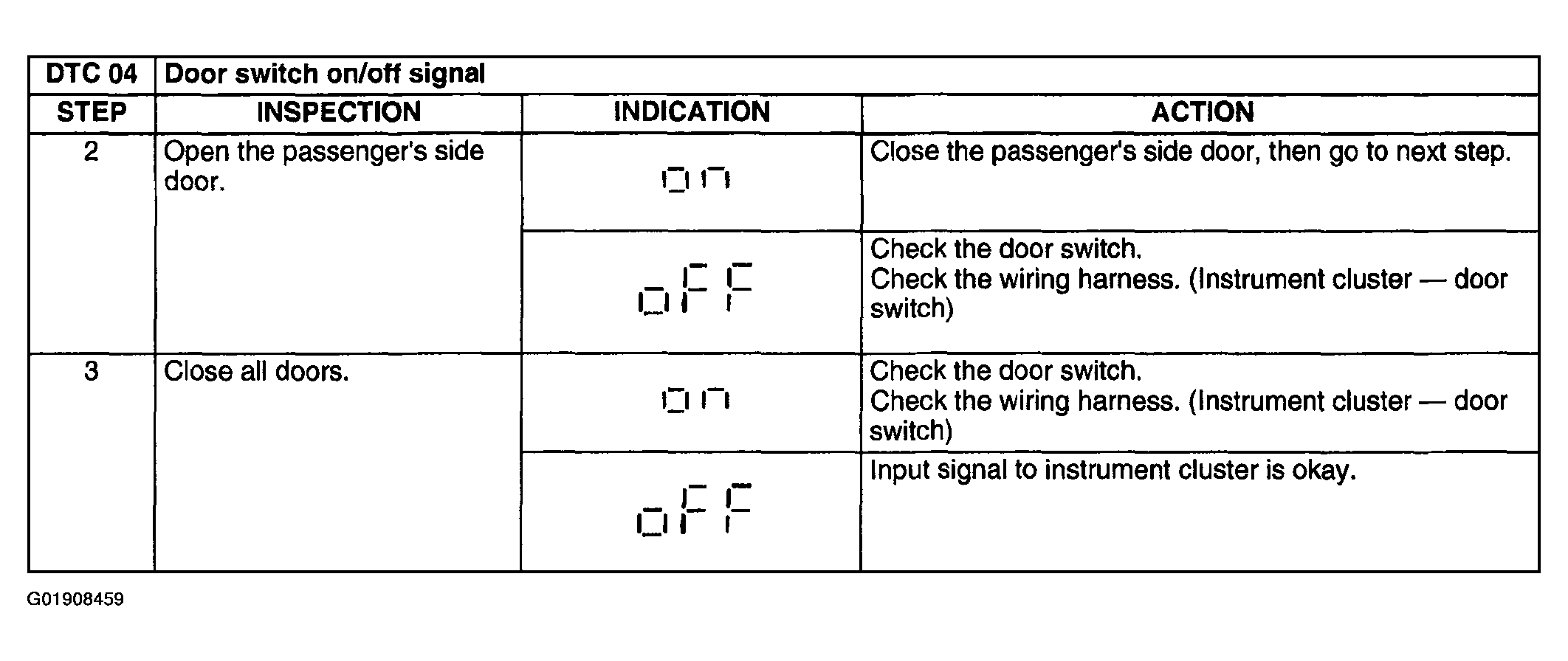

Fig 3: Diagnostic Trouble Codes (DTC 04) Inspection Chart (2 Of 2)
G01908459Courtesy of MAZDA MOTORS CORP.

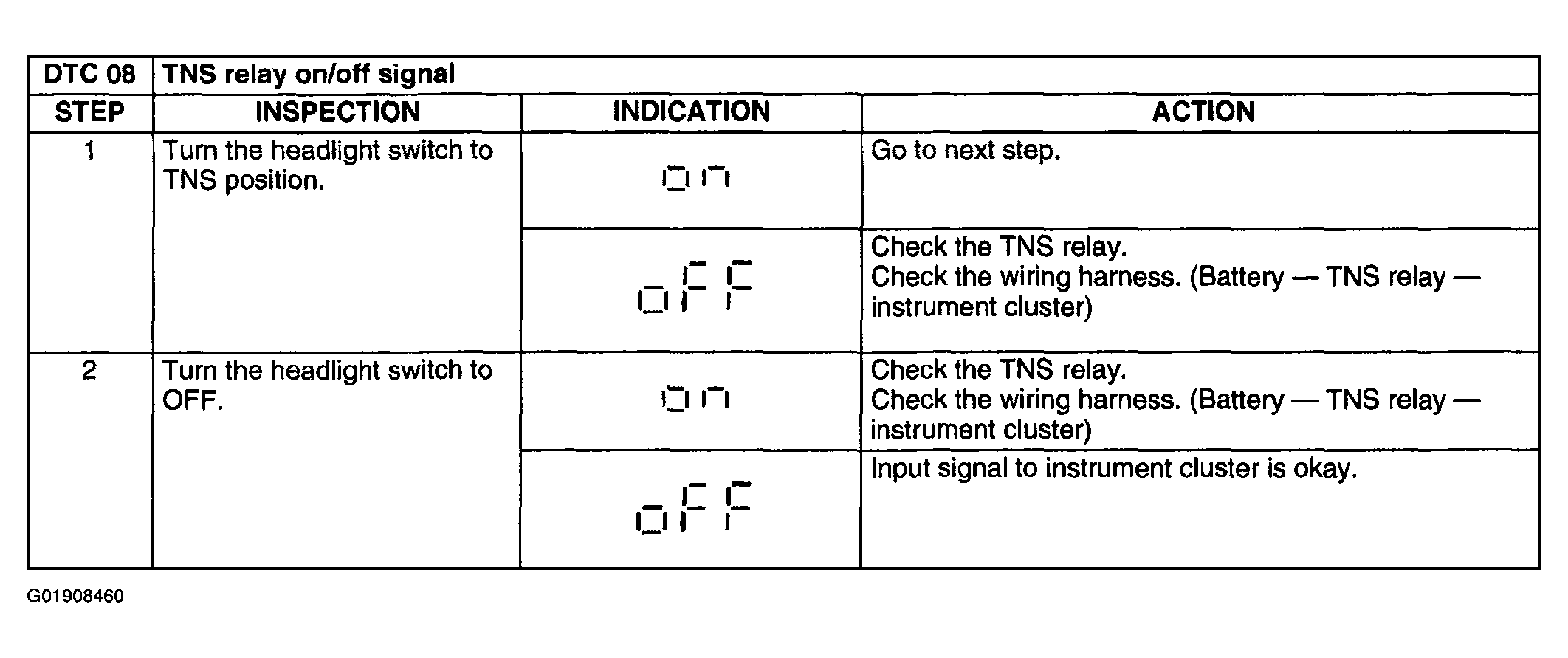

Fig 4: Diagnostic Trouble Codes (DTC 08) Inspection Chart
G01908460Courtesy of MAZDA MOTORS CORP.

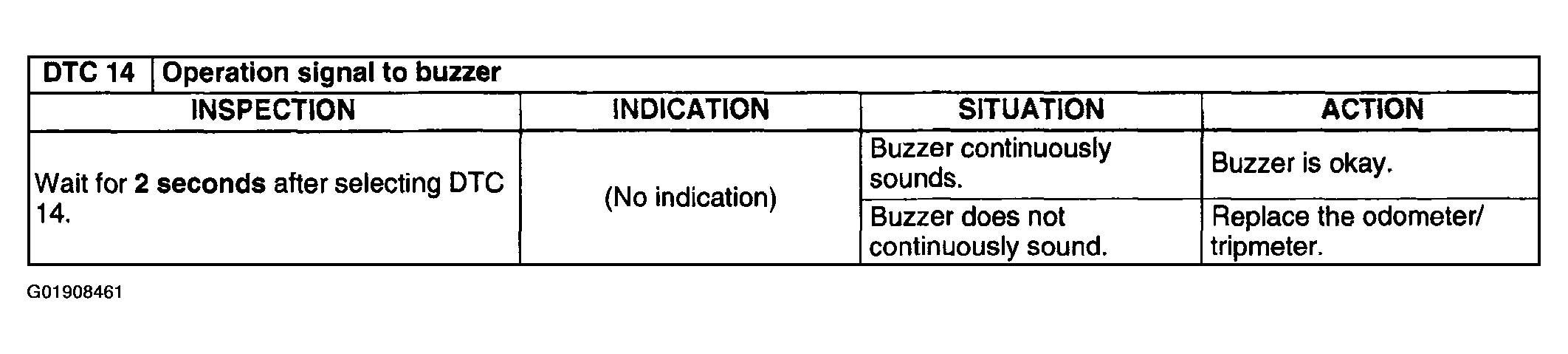

Fig 5: Diagnostic Trouble Codes (DTC 14) Inspection Chart
G01908461Courtesy of MAZDA MOTORS CORP.

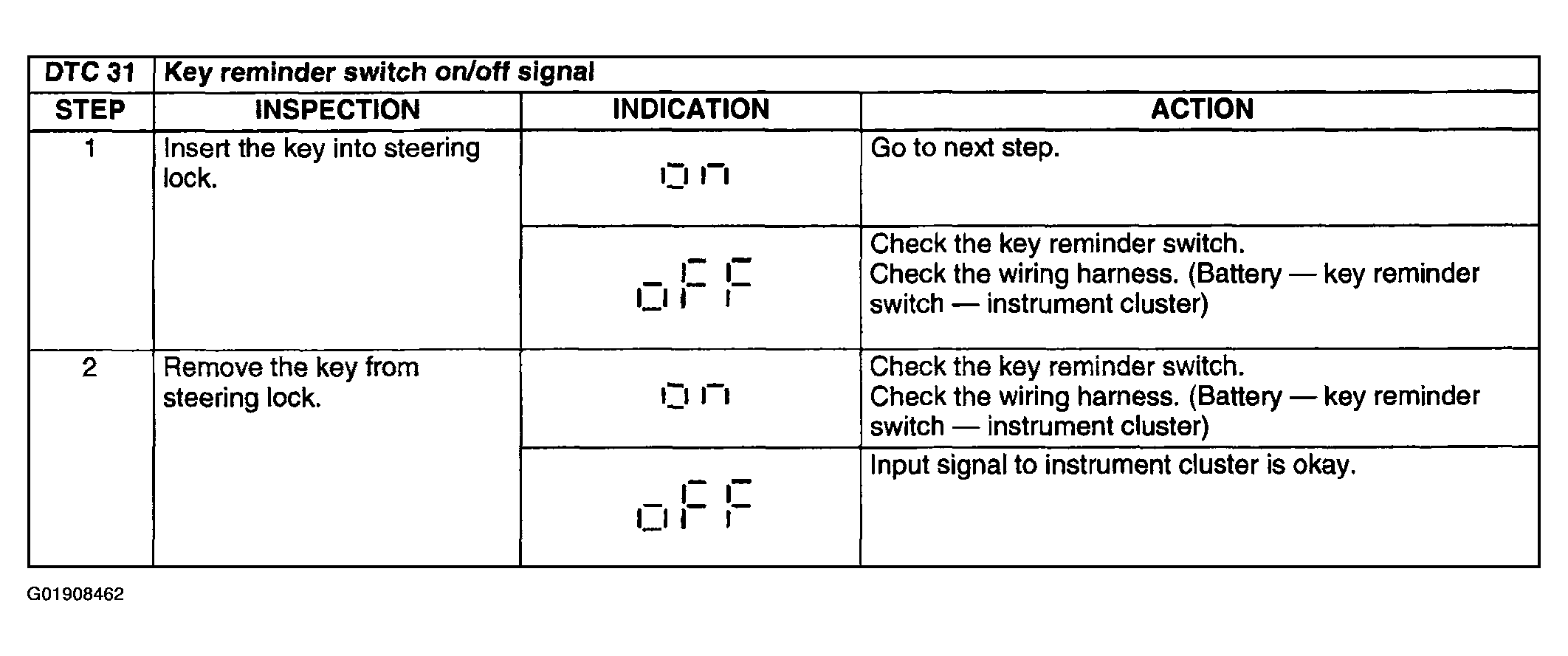

Fig 6: Diagnostic Trouble Codes (DTC 31) Inspection Chart
G01908462Courtesy of MAZDA MOTORS CORP.
