Instrument Cluster System Wiring Diagram

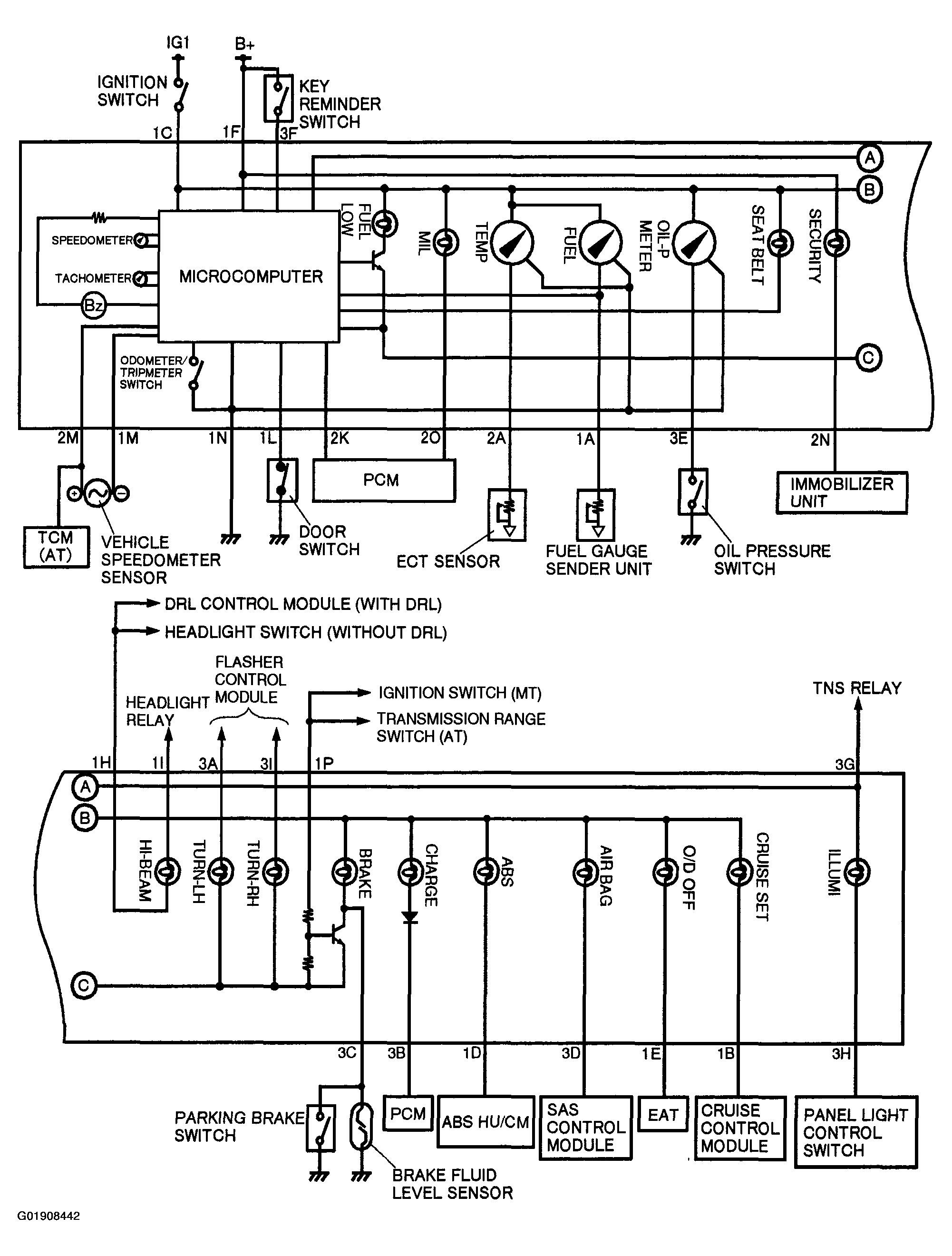

Fig 1: Instrument Cluster System Wiring Diagram

G01908442

Courtesy of MAZDA MOTORS CORP.
