Fuel Gauge Sender Unit Inspection

  1. Remove the fuel pump. (See .)
  2. Move the float to the topmost and bottommost positions, and verify that the resistance between terminals A and B of the unit and the position of the float are as indicated in the figure.
    • If they are not as indicated, replace the fuel gauge sender unit. (See FUEL PUMP .)

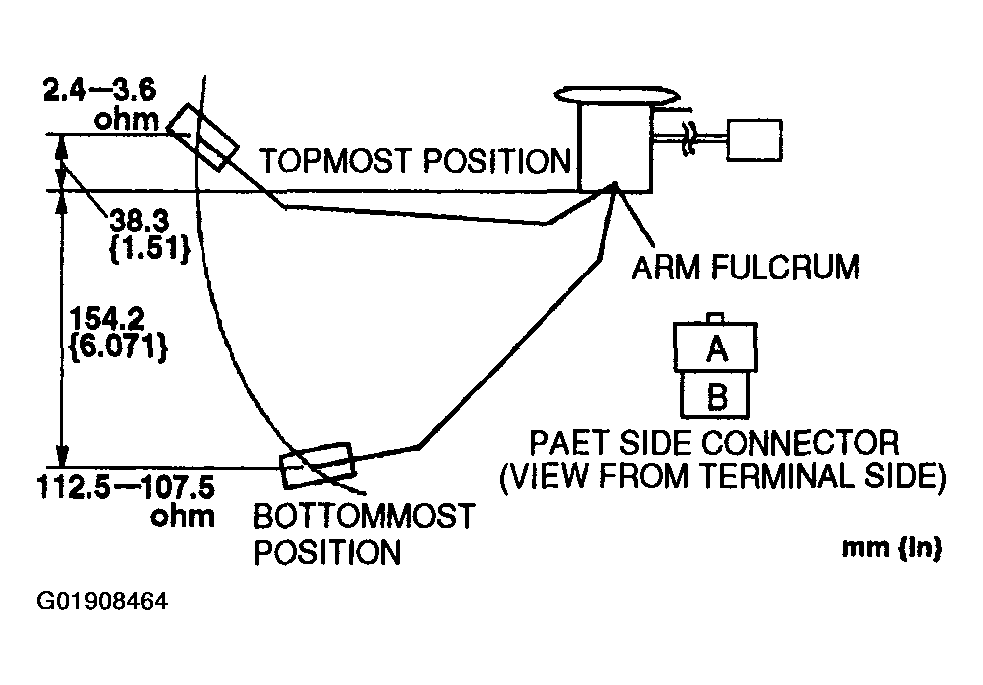

    Fig 1: Inspecting Fuel Gauge Sender Unit
    G01908464Courtesy of MAZDA MOTORS CORP.
