Symptom Troubleshooting Chart - Wheels And Tires

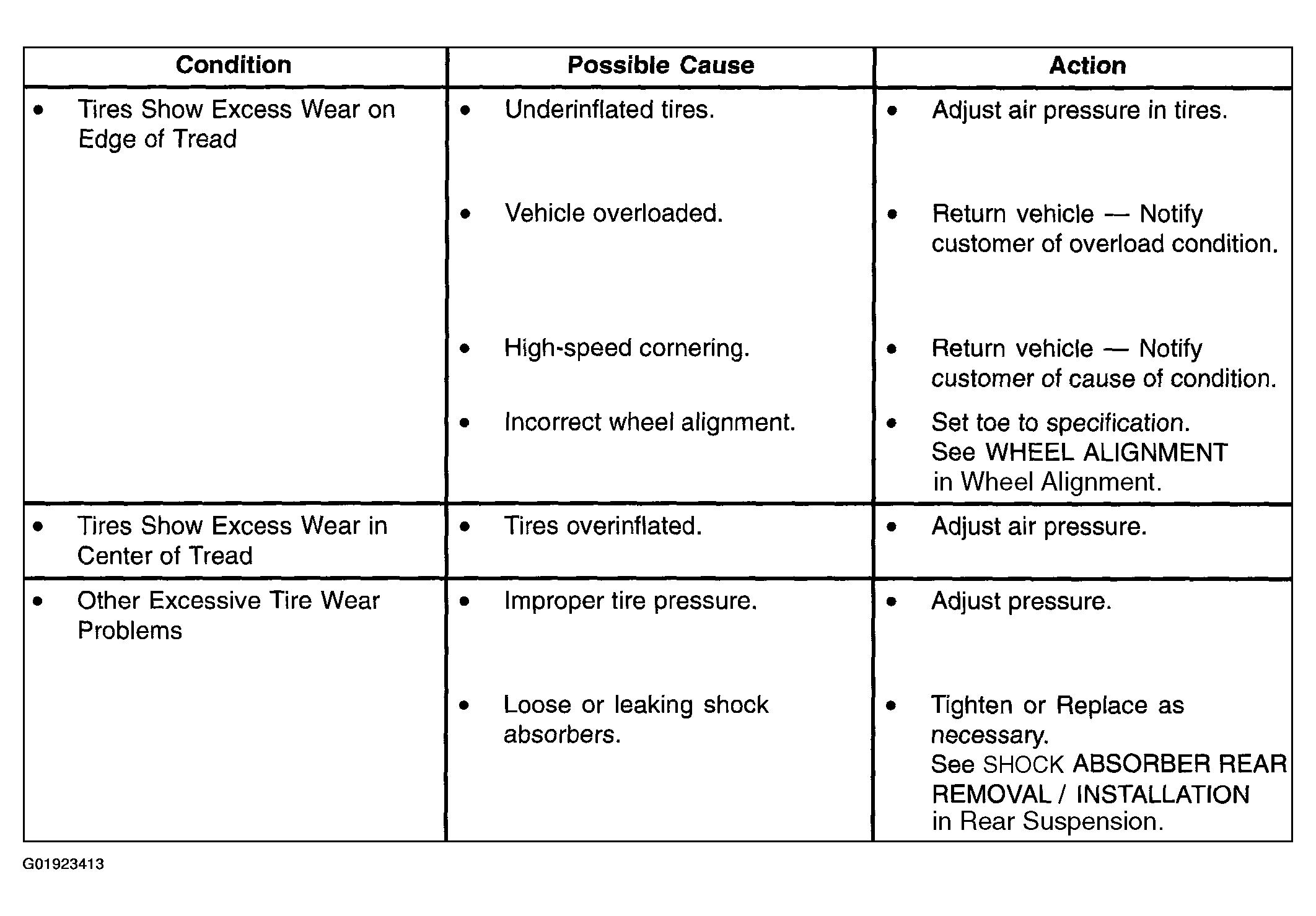

Fig 1: Wheels And Tires - Symptom Troubleshooting Chart (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

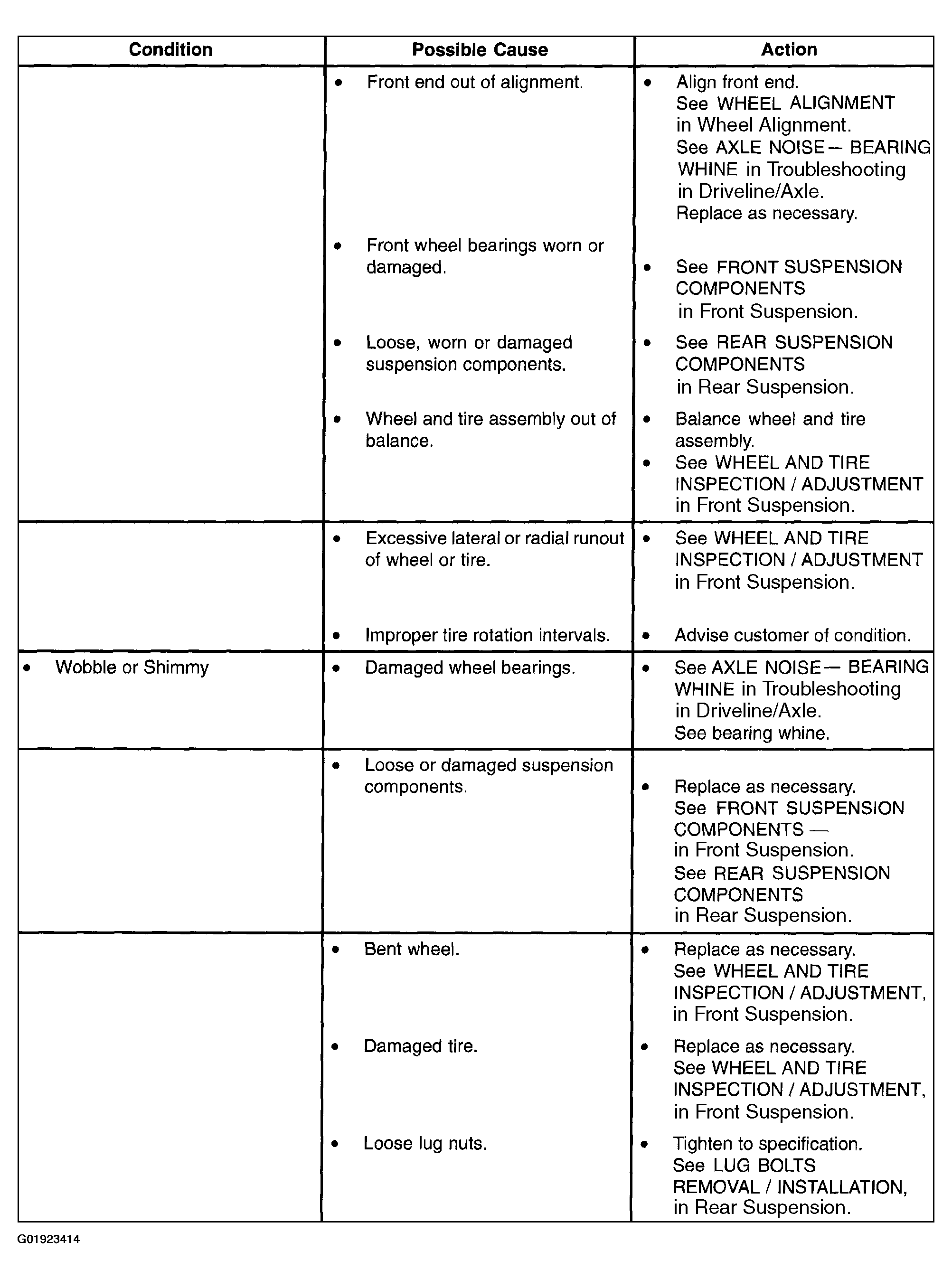

Fig 2: Wheels And Tires - Symptom Troubleshooting Chart (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

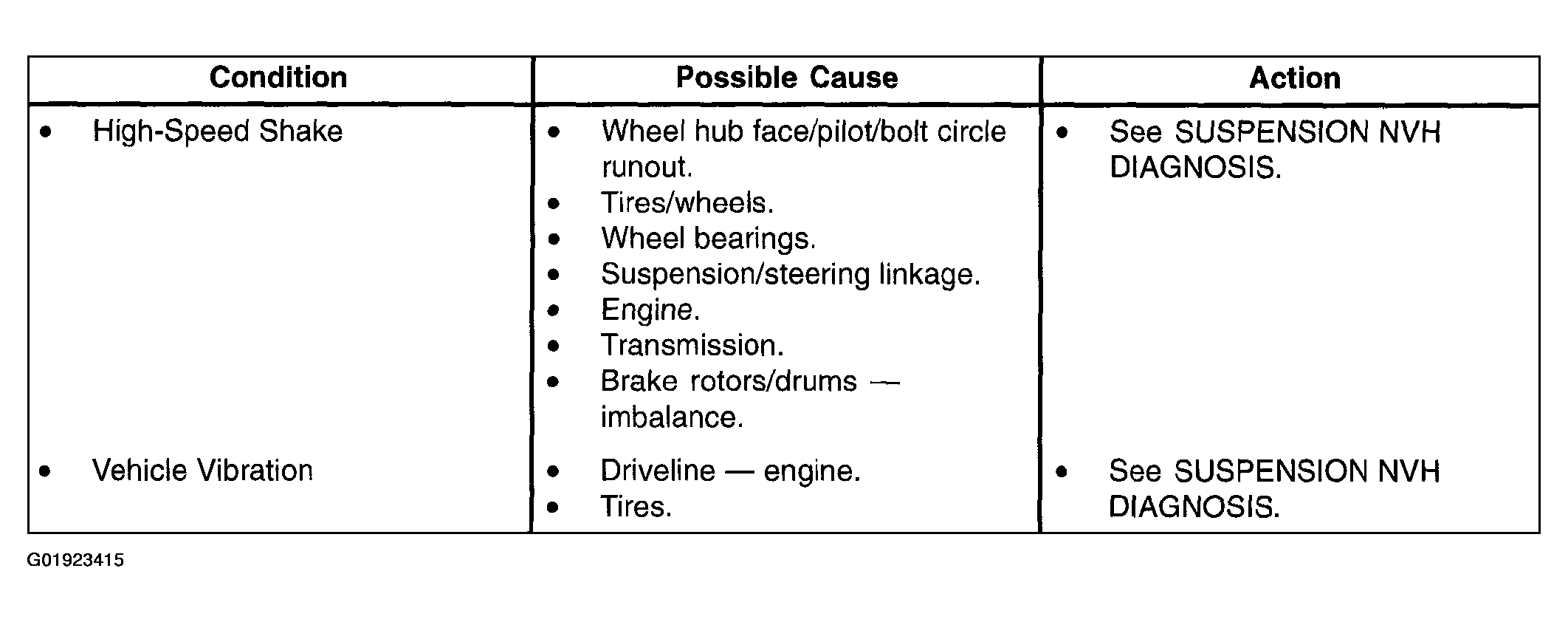

Fig 3: Wheels And Tires - Symptom Troubleshooting Chart (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
