Suspension Pinpoint Test 4: Wheel End Vibration Analysis

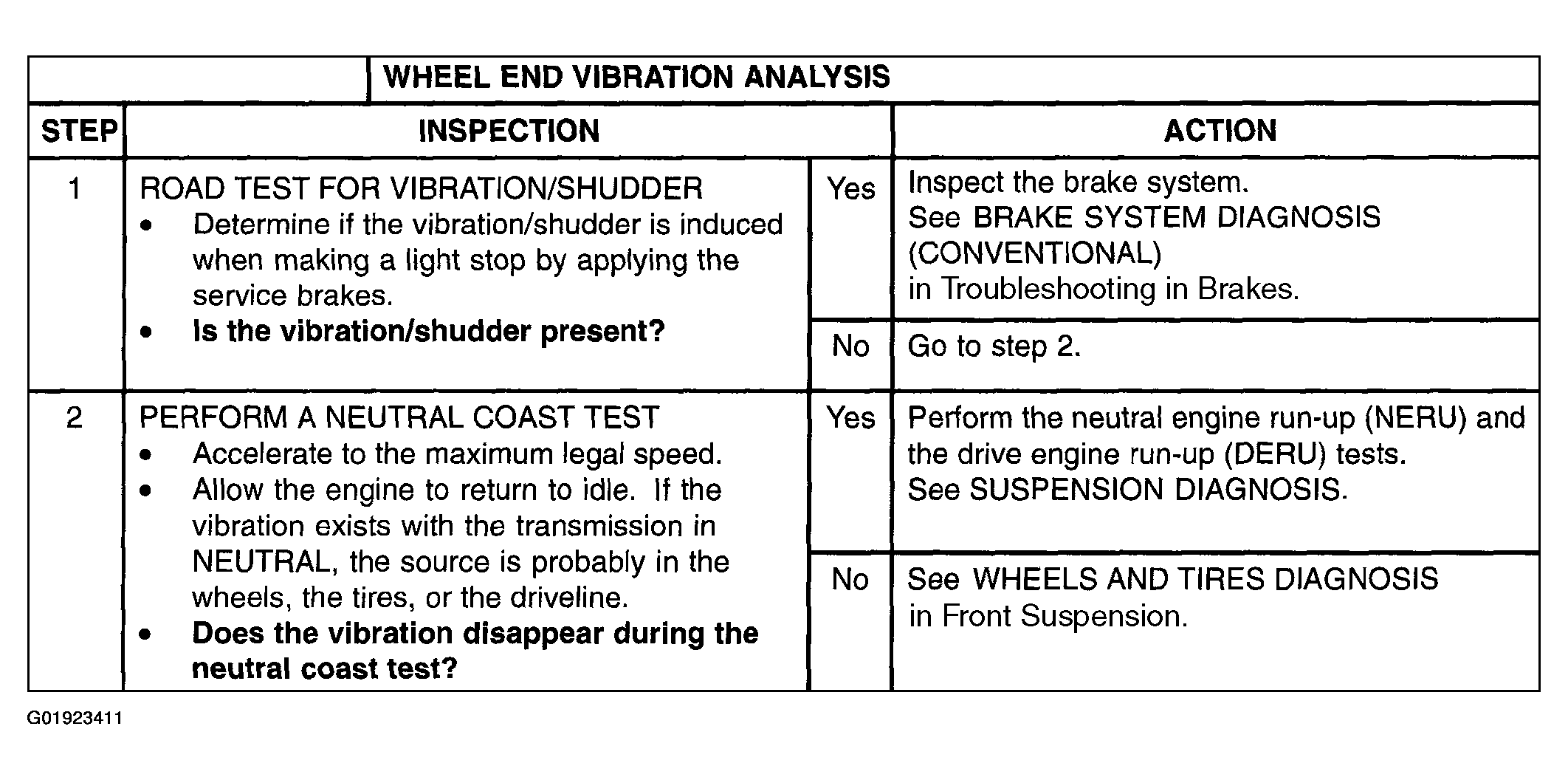

Fig 1: Wheel End Vibration Analysis - Diagnostic Table
G01923411Courtesy of MAZDA MOTORS CORP.
