Suspension Pinpoint Test 3: Idle Boom/Shake/Vibration
Suspension Pinpoint Test 3: Idle Boom/Shake/Vibration

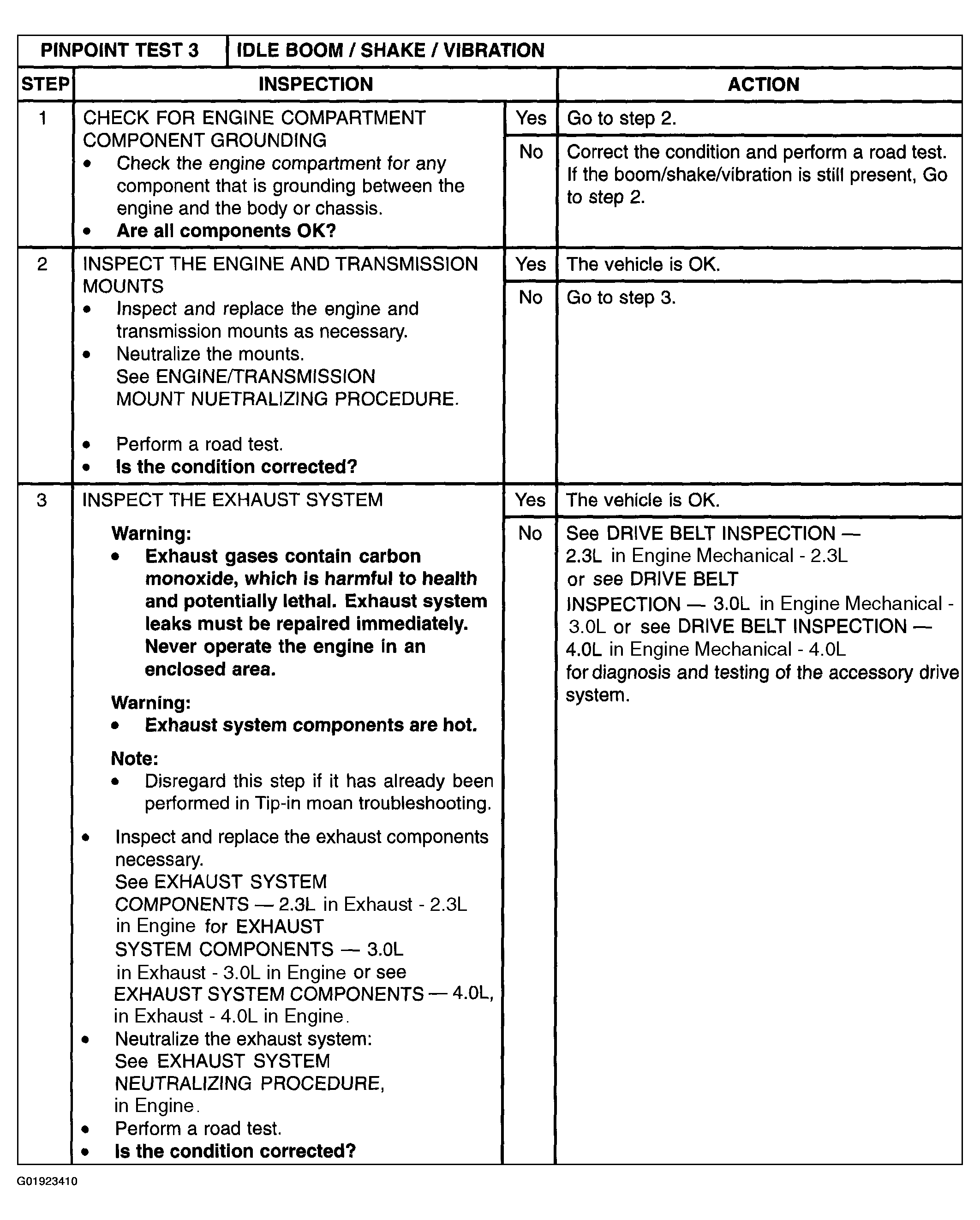

Fig 1: Idle Boom/Shake/Vibration - Diagnostic Table
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
