Suspension Pinpoint Test 2: Tip-In Moan

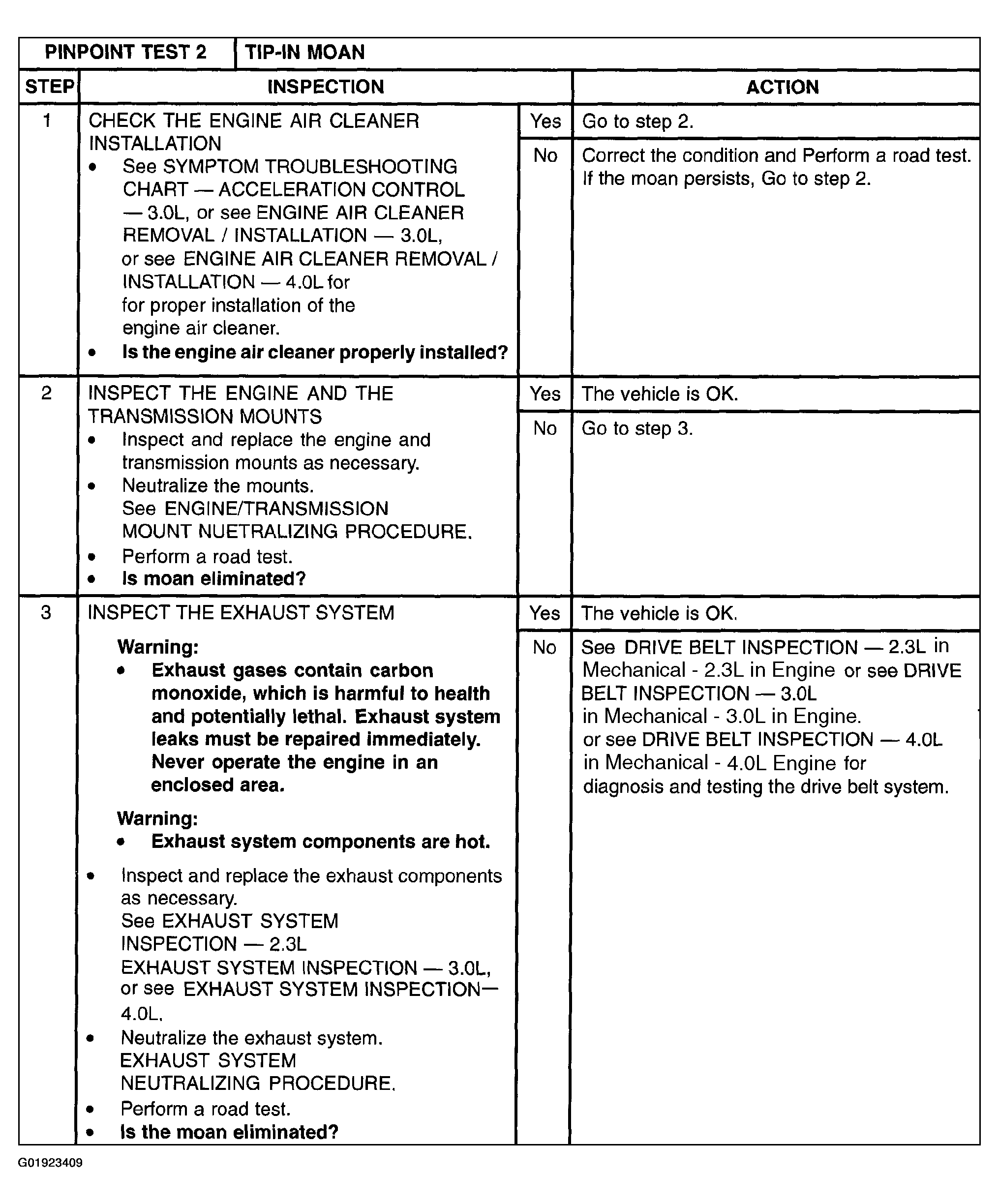

Fig 1: Tip-In Moan - Diagnostic Table

G01923409

Courtesy of MAZDA MOTORS CORP.
