Suspension Pinpoint Test 1: High-Speed Shake

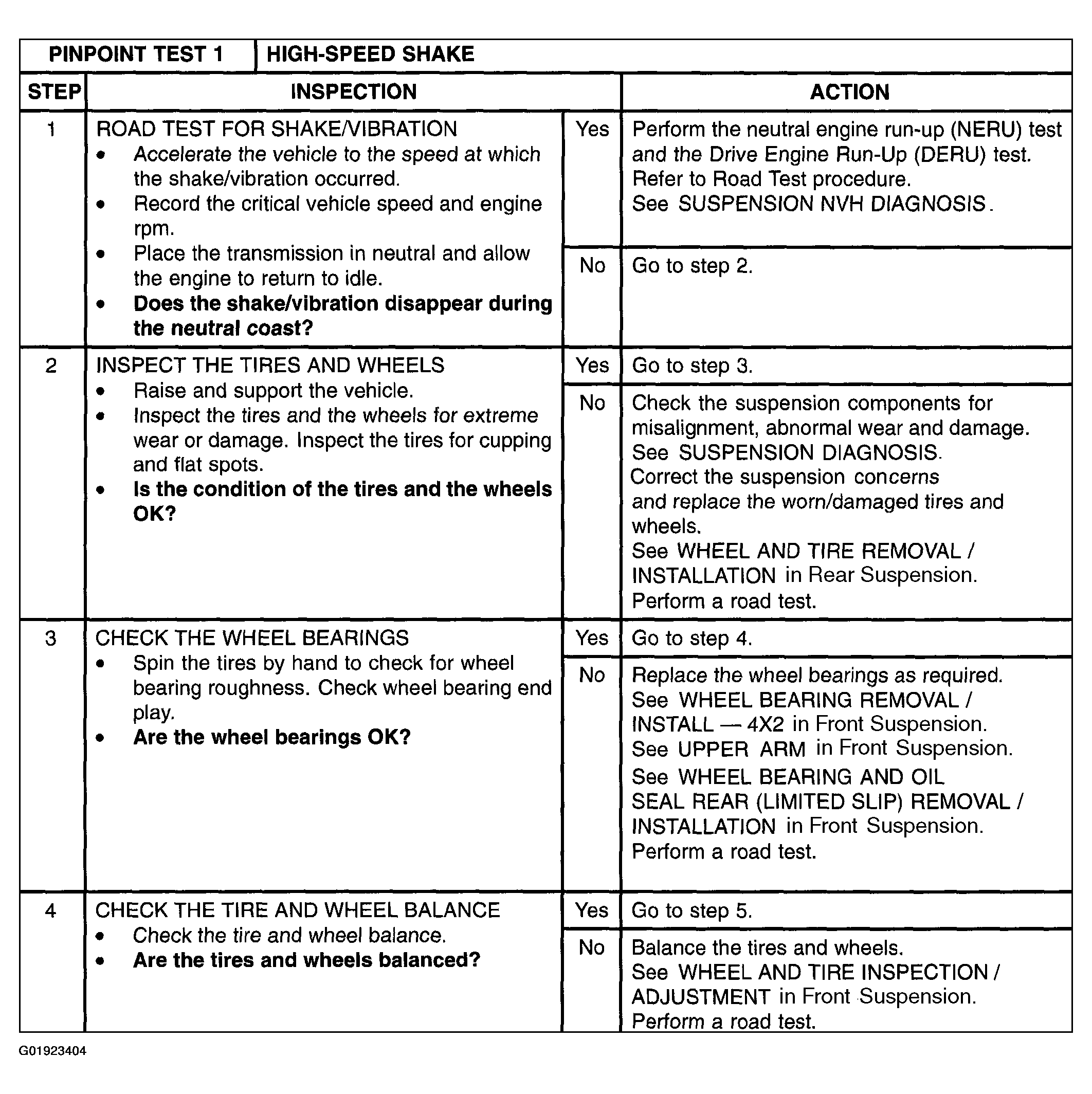

Fig 1: High-Speed Shake - Diagnostic Table (Steps 1 - 4)

Courtesy of MAZDA MOTORS CORP.

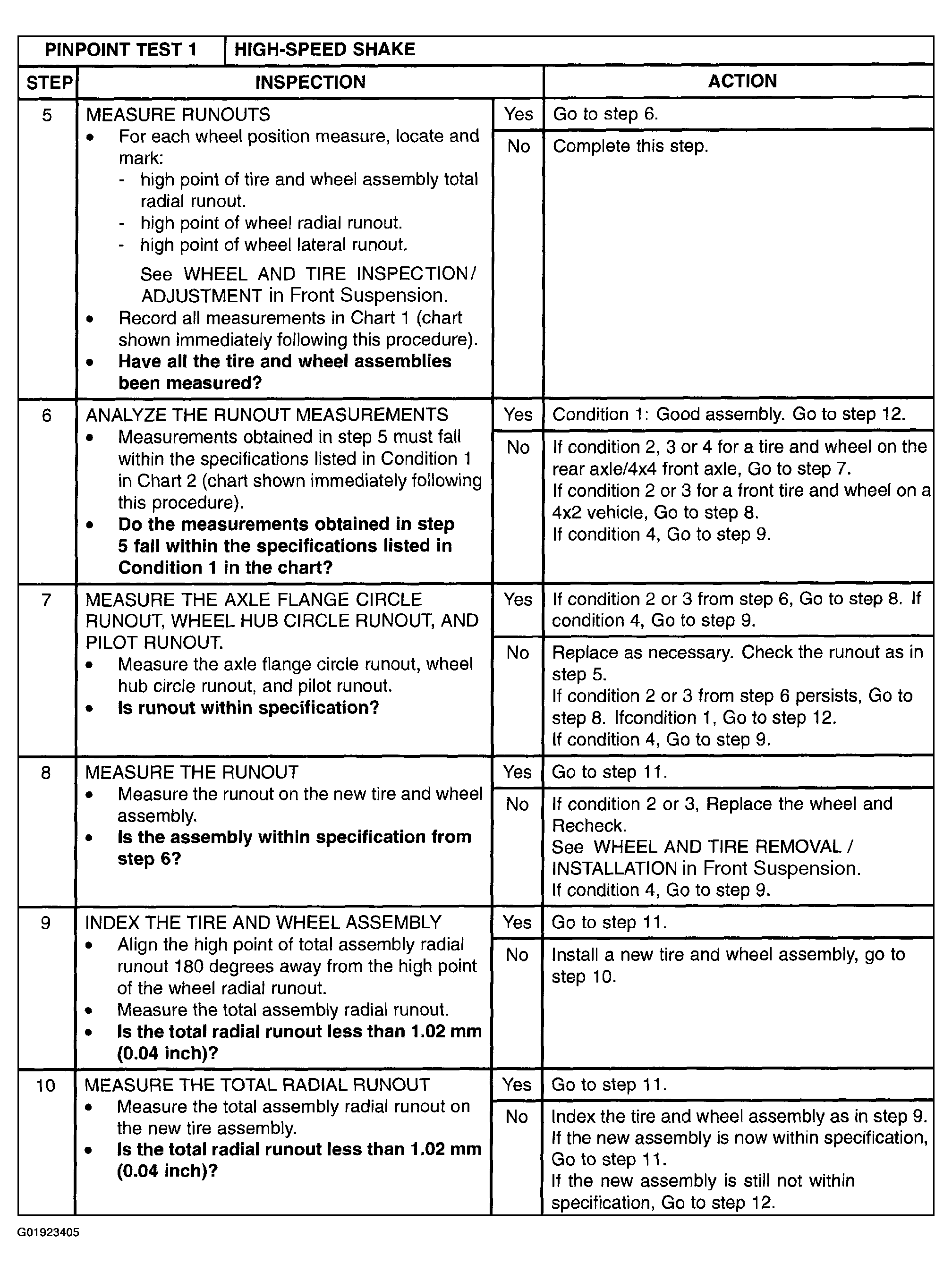

Fig 2: High-Speed Shake - Diagnostic Table (Steps 5-10)

Courtesy of MAZDA MOTORS CORP.

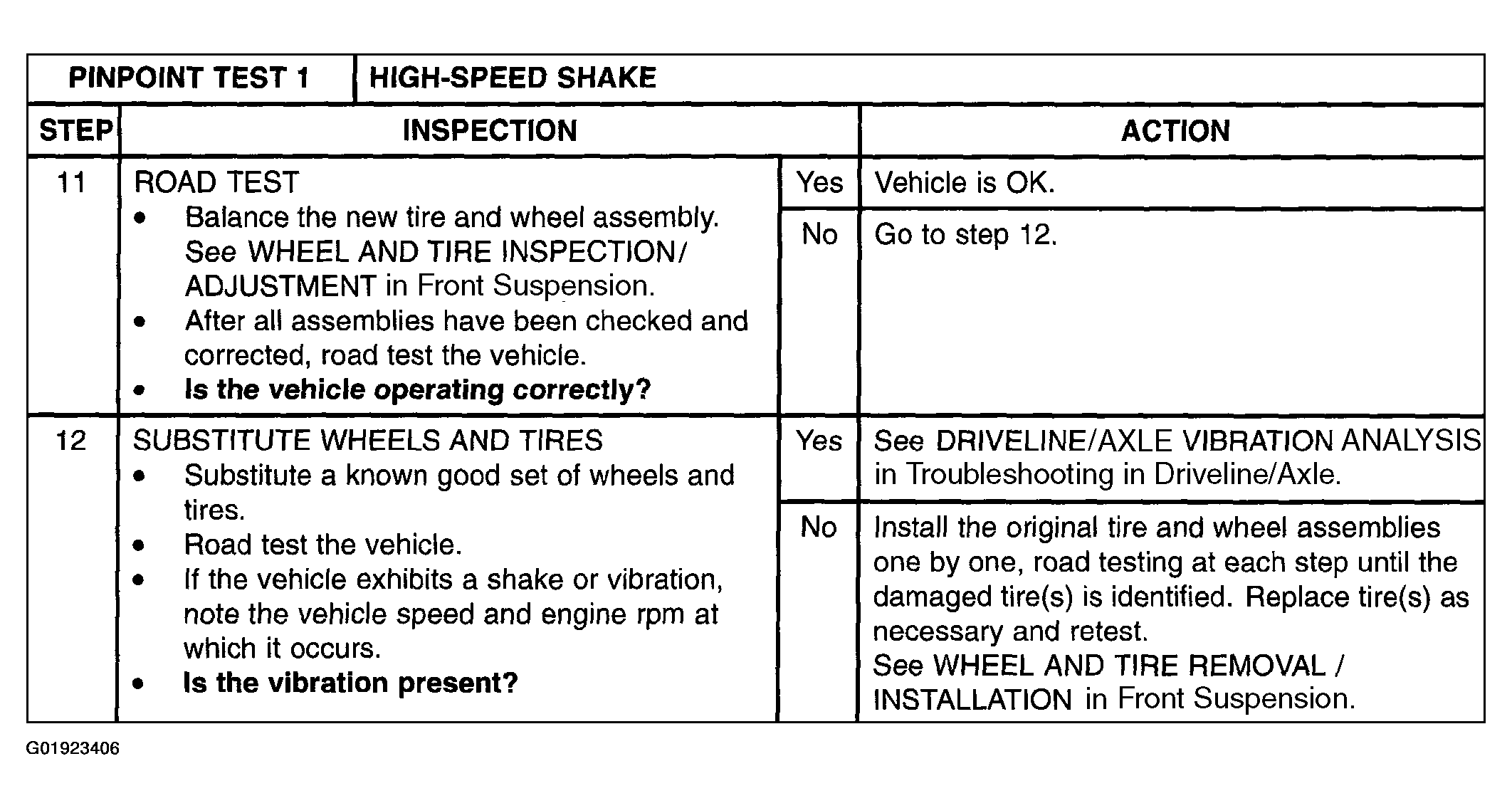

Fig 3: High-Speed Shake - Diagnostic Table (Steps 11-12)

Courtesy of MAZDA MOTORS CORP.

Chart 1

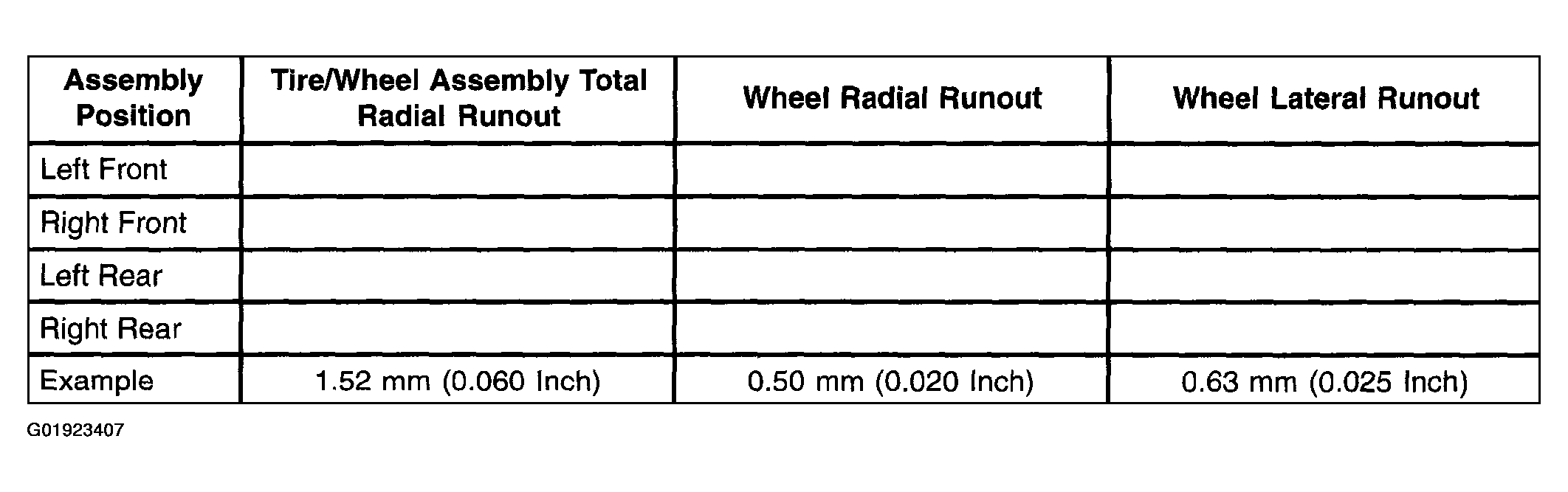

Fig 4: High-Speed Shake - Reference Chart

Courtesy of MAZDA MOTORS CORP.

Chart 2

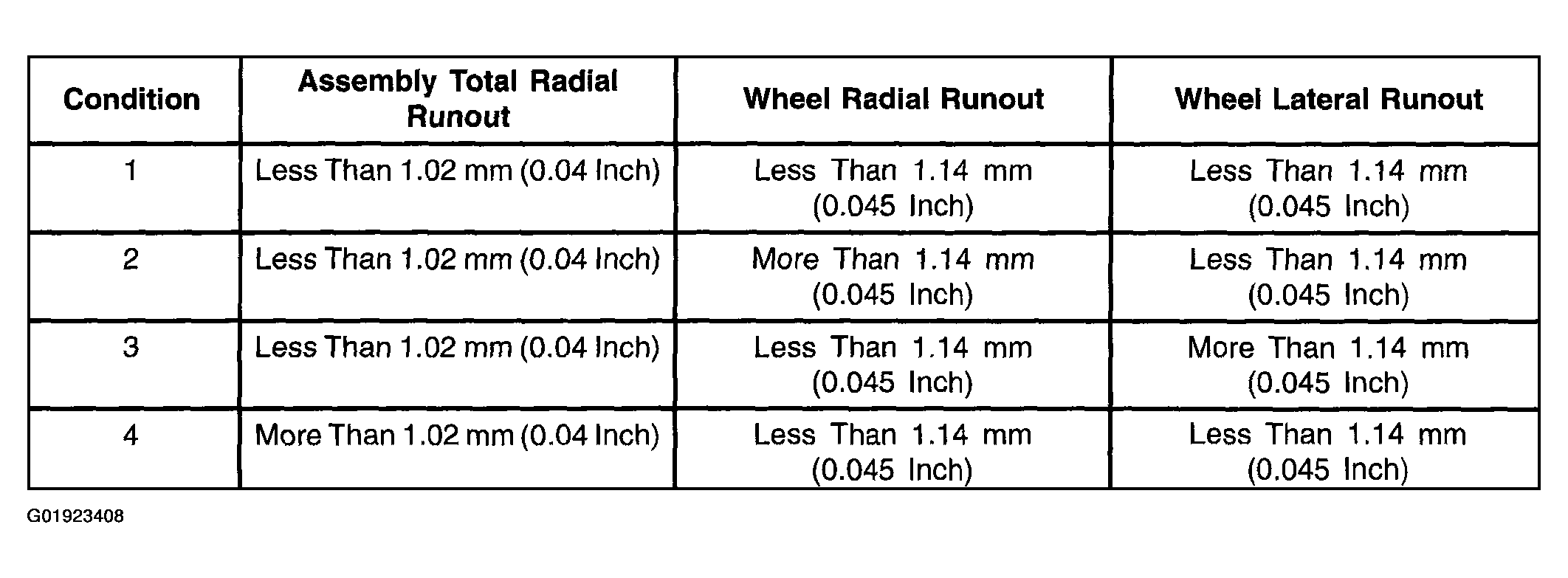

Fig 5: High-Speed Shake - Reference Chart

Courtesy of MAZDA MOTORS CORP.
