NVH Diagnostic Locator

NOTE:
  • A gear-driven unit will produce a certain amount of noise. Some noise audible at certain speeds or under various driving conditions is acceptable. Slight noise is not detrimental and must be considered normal.

It is important that an NVH concern be isolated into its specific area as soon as possible. The easiest and quickest way to do this is to perform a road test.

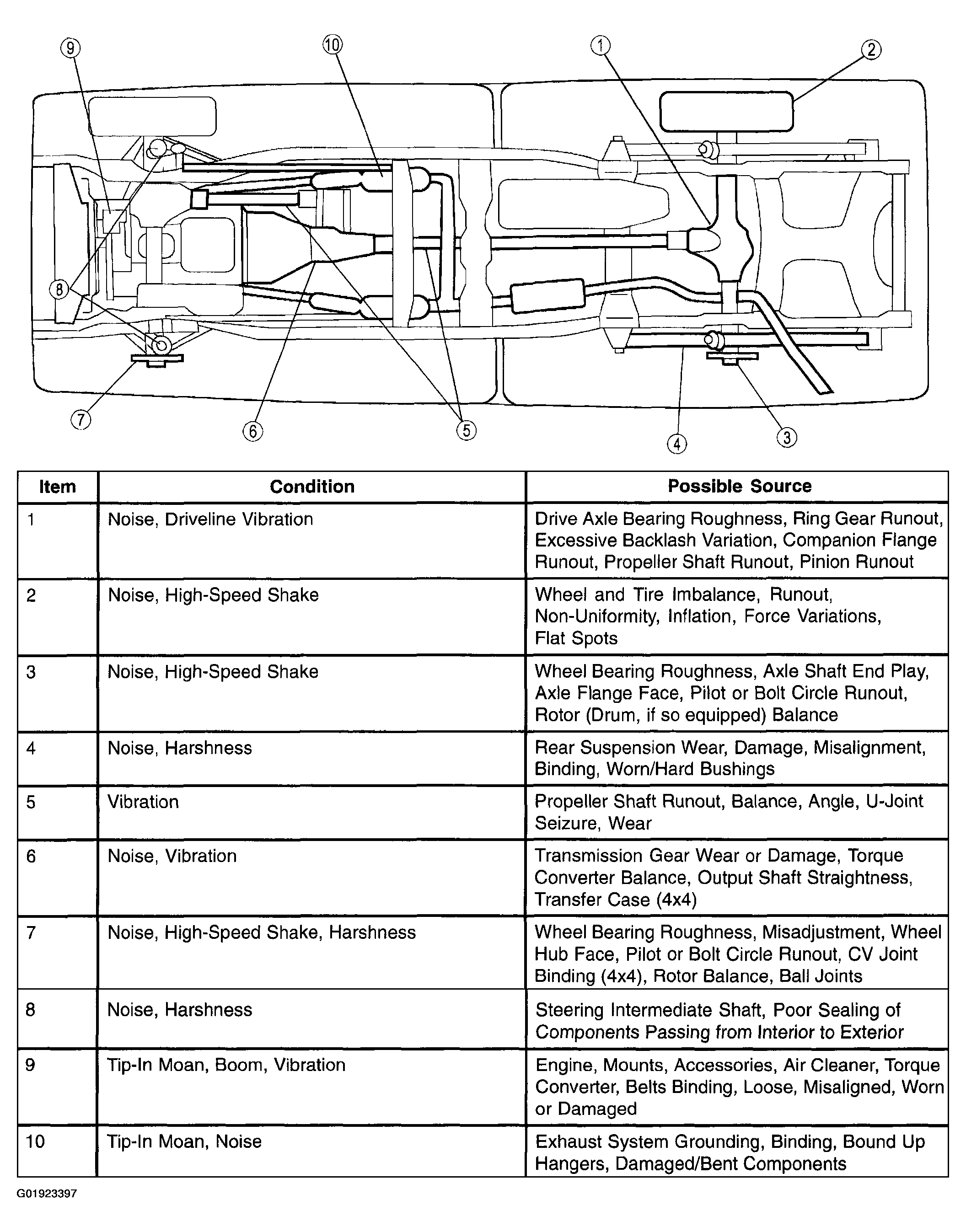

Fig 1: Locating Noise, Vibration And Harness Diagnostic Points
G01923397Courtesy of MAZDA MOTORS CORP.
