Symptom Troubleshooting Chart - Suspension

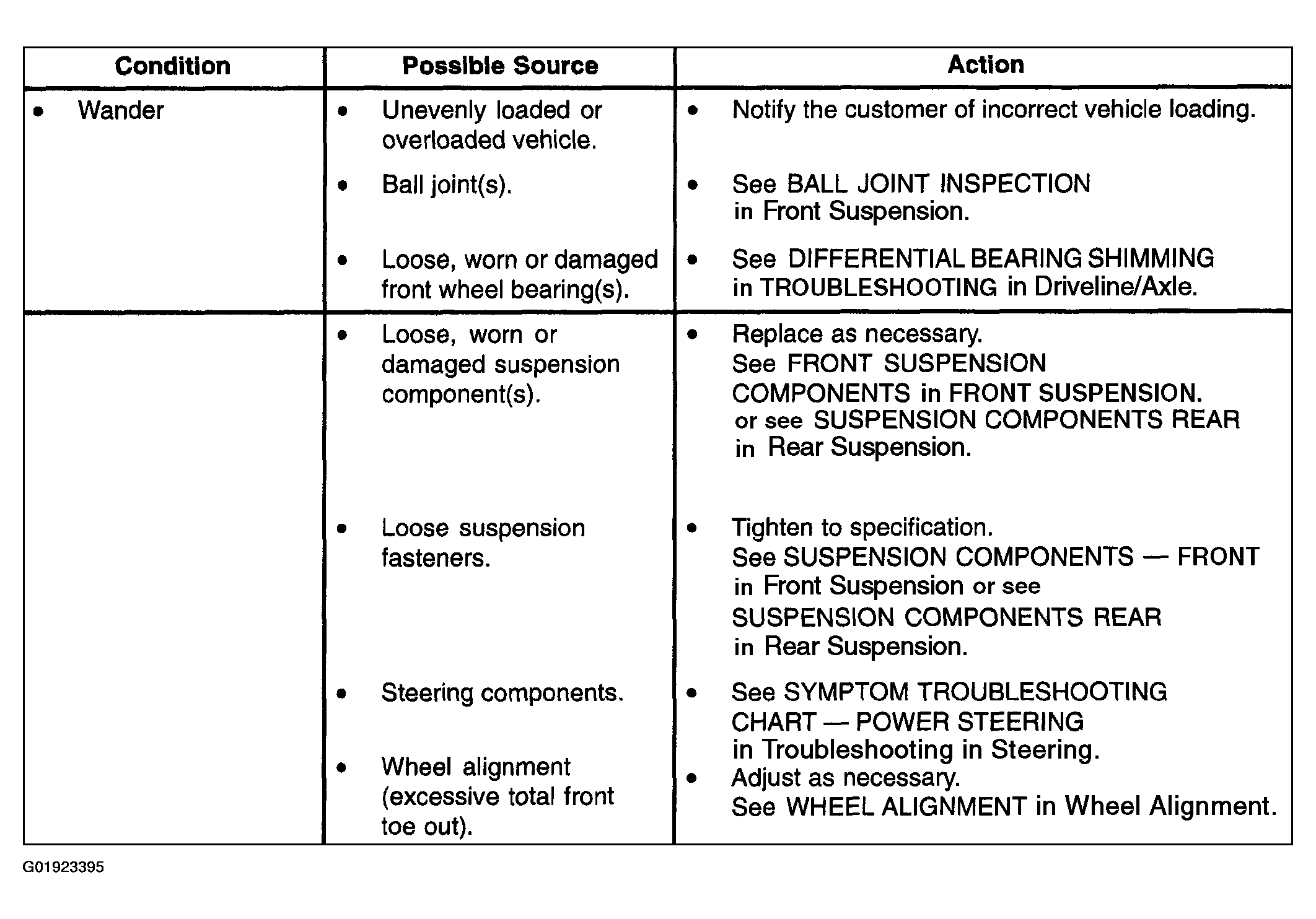

Fig 1: Suspension - Symptom Troubleshooting Chart (1 Of 6)

Courtesy of MAZDA MOTORS CORP.

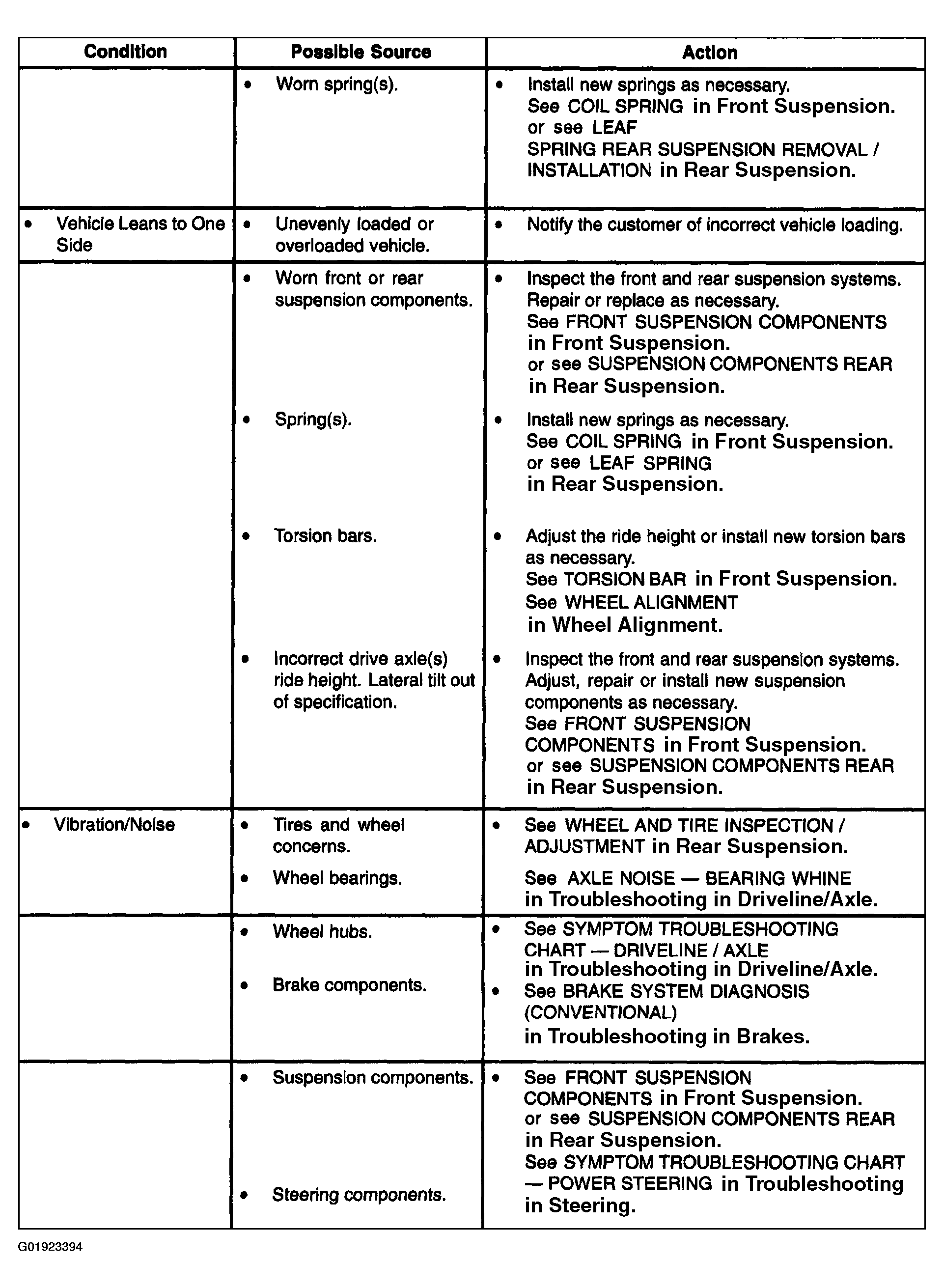

Fig 2: Suspension - Symptom Troubleshooting Chart (2 Of 6)

Courtesy of MAZDA MOTORS CORP.

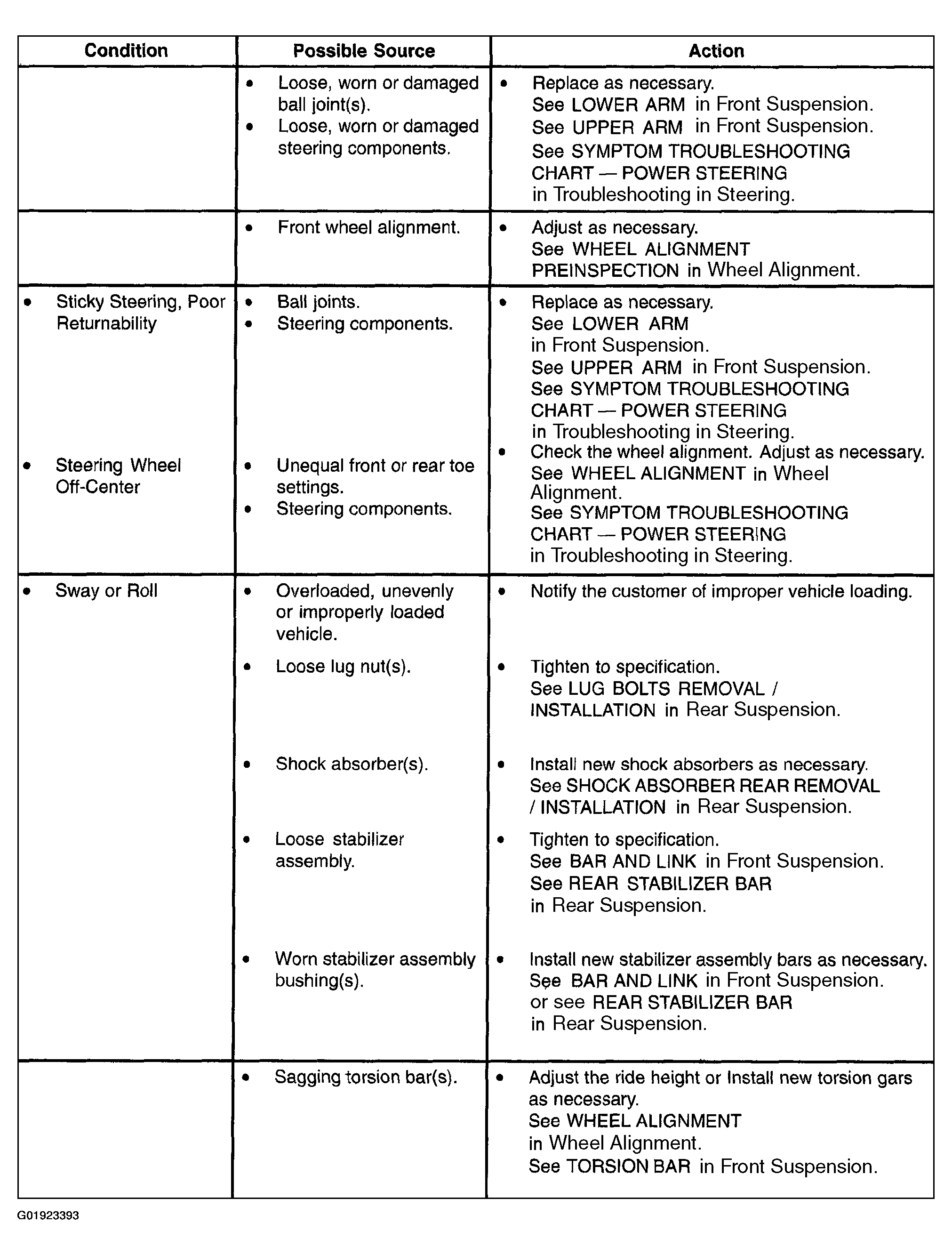

Fig 3: Suspension - Symptom Troubleshooting Chart (3 Of 6)

Courtesy of MAZDA MOTORS CORP.

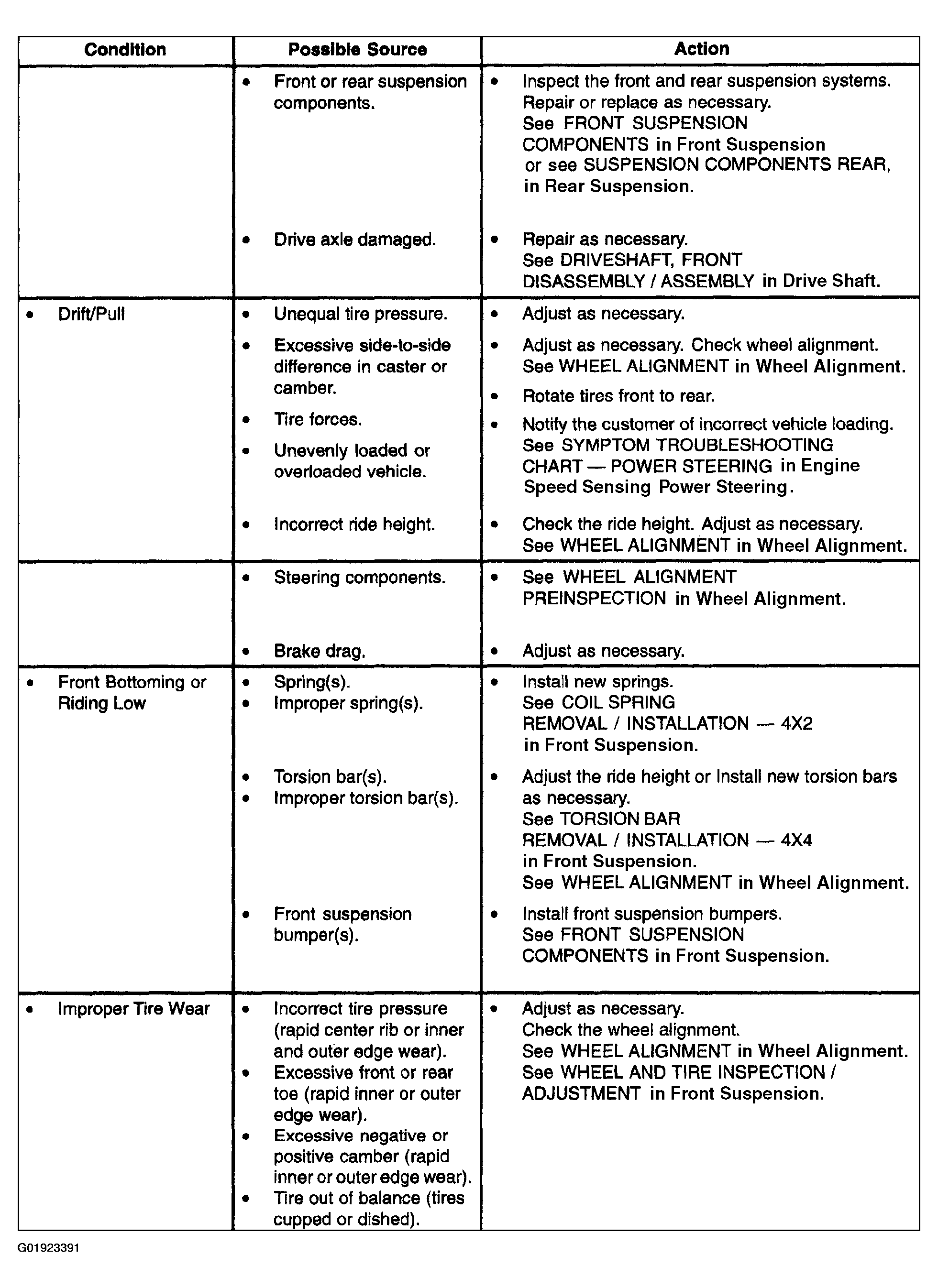

Fig 4: Suspension - Symptom Troubleshooting Chart (4 Of 6)

Courtesy of MAZDA MOTORS CORP.

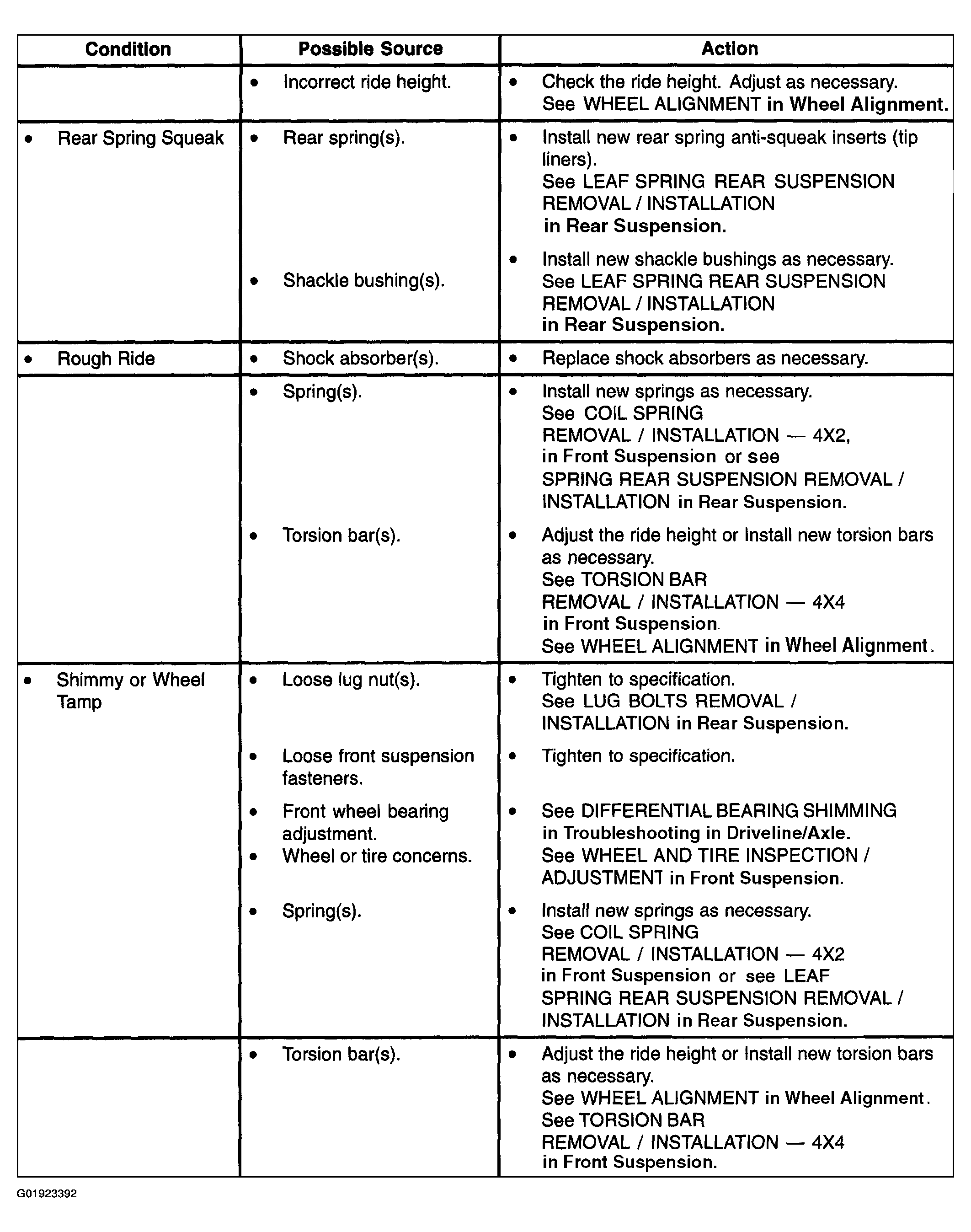

Fig 5: Suspension - Symptom Troubleshooting Chart (5 Of 6)

Courtesy of MAZDA MOTORS CORP.

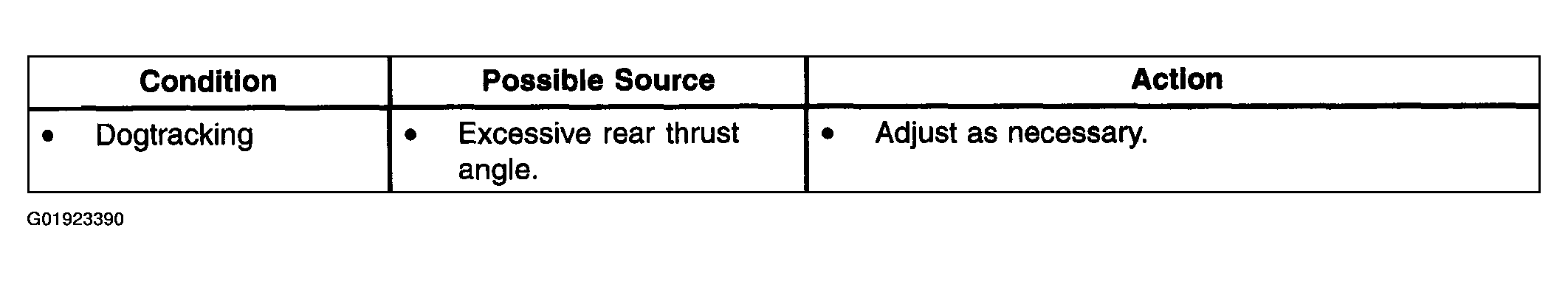

Fig 6: Suspension - Symptom Troubleshooting Chart (6 Of 6)

Courtesy of MAZDA MOTORS CORP.
