Safety Belt Warning Indicator Does Not Operate Properly

NOTE:

• Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

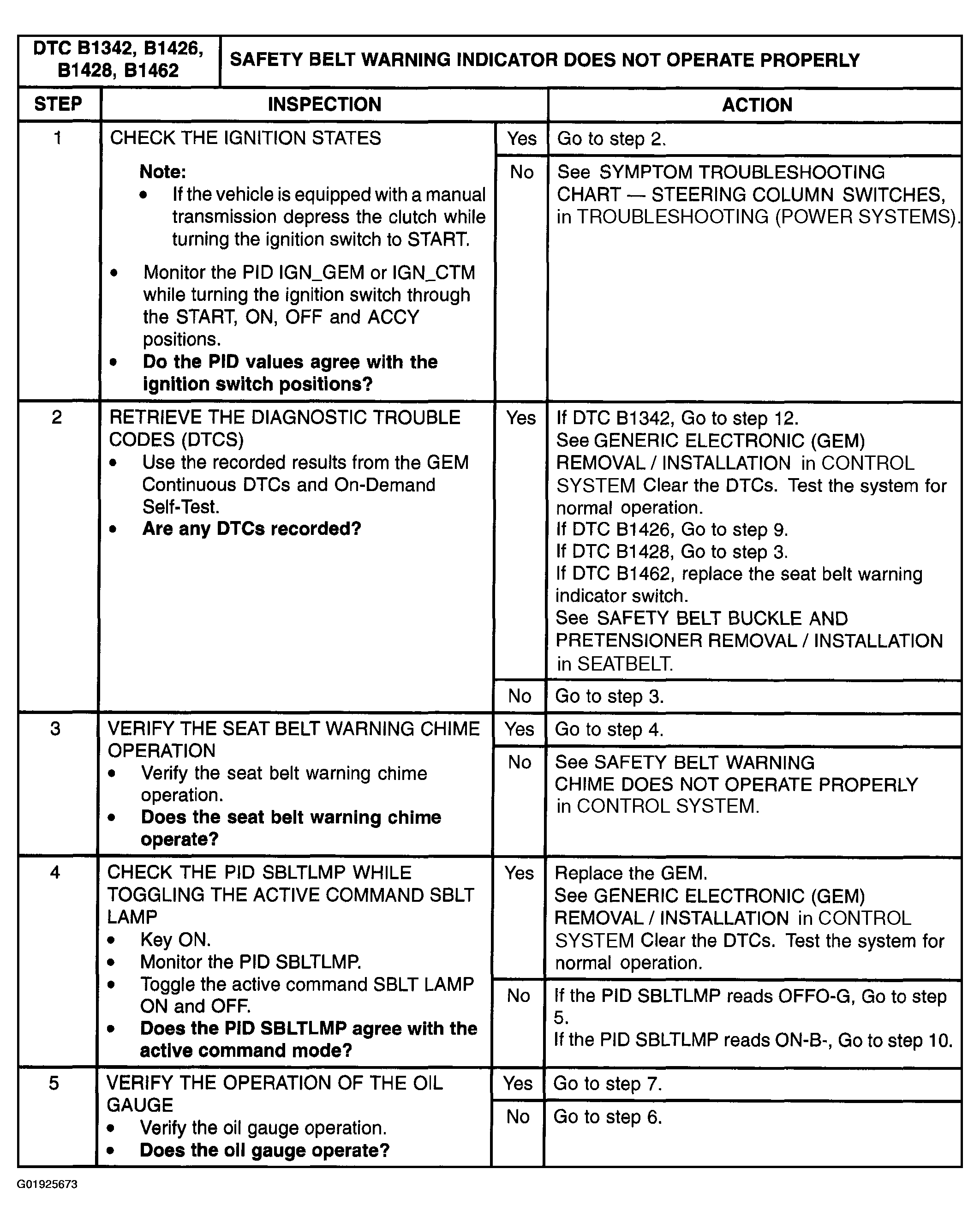

Fig 1: Diagnosis Procedure -- Safety Belt Warning Indicator Does Not Operate Properly (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

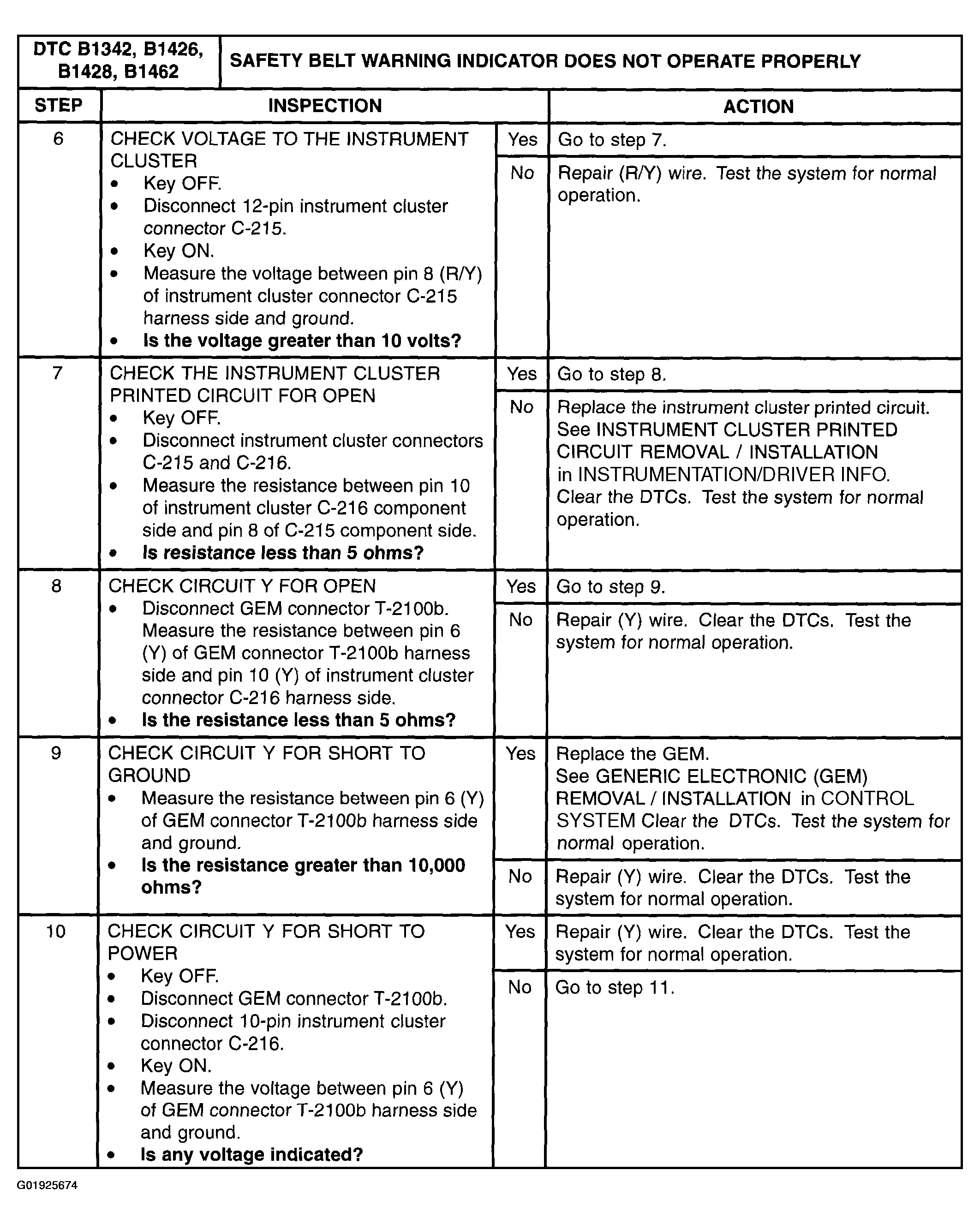

Fig 2: Diagnosis Procedure -- Safety Belt Warning Indicator Does Not Operate Properly (Steps 6-10)

Courtesy of MAZDA MOTORS CORP.

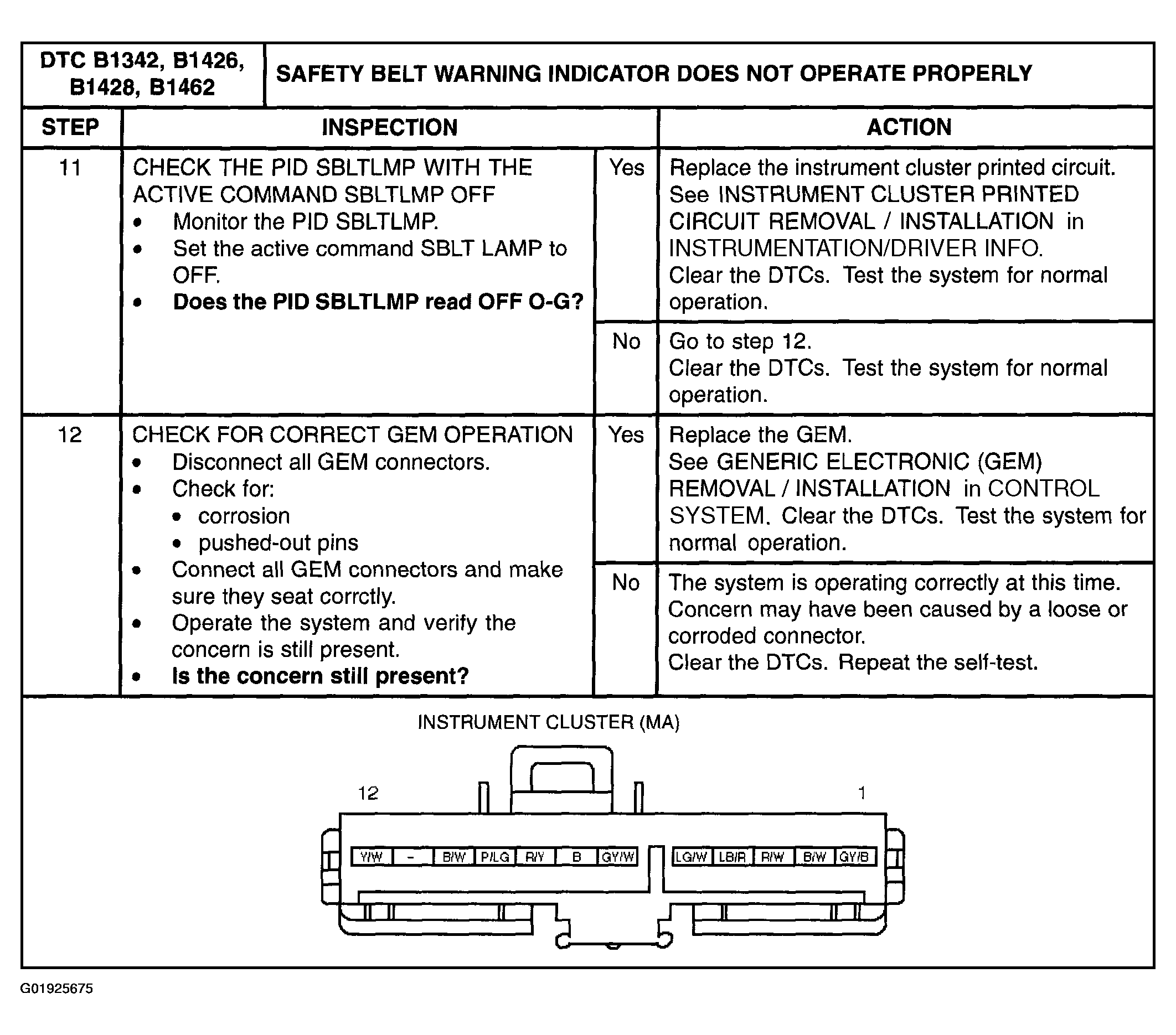

Fig 3: Diagnosis Procedure -- Safety Belt Warning Indicator Does Not Operate Properly (Steps 11-12)

Courtesy of MAZDA MOTORS CORP.

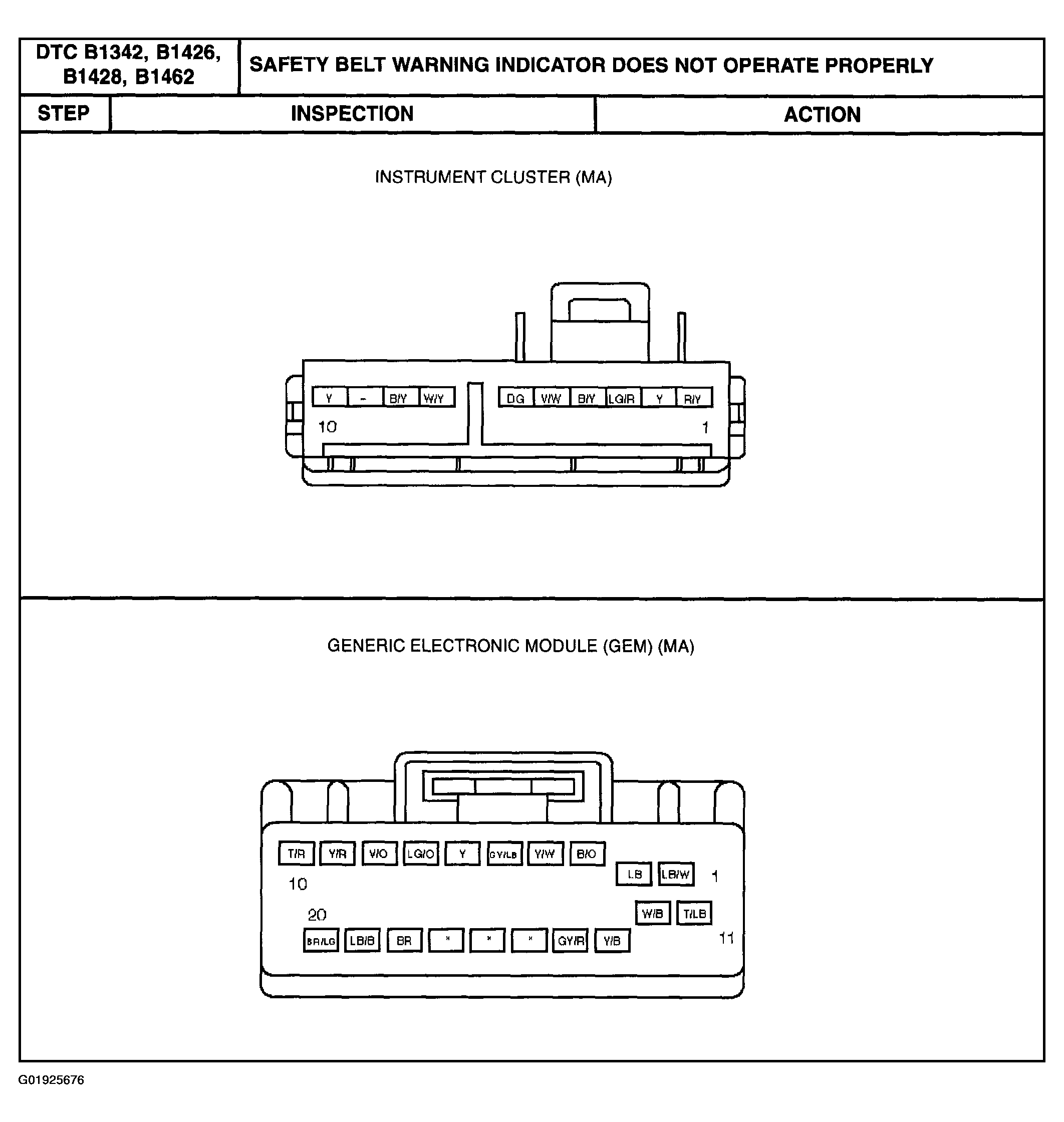

Fig 4: Identifying Instrument Cluster & Generic Electronic Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.
