Cruise Control Indicator Never/Always On

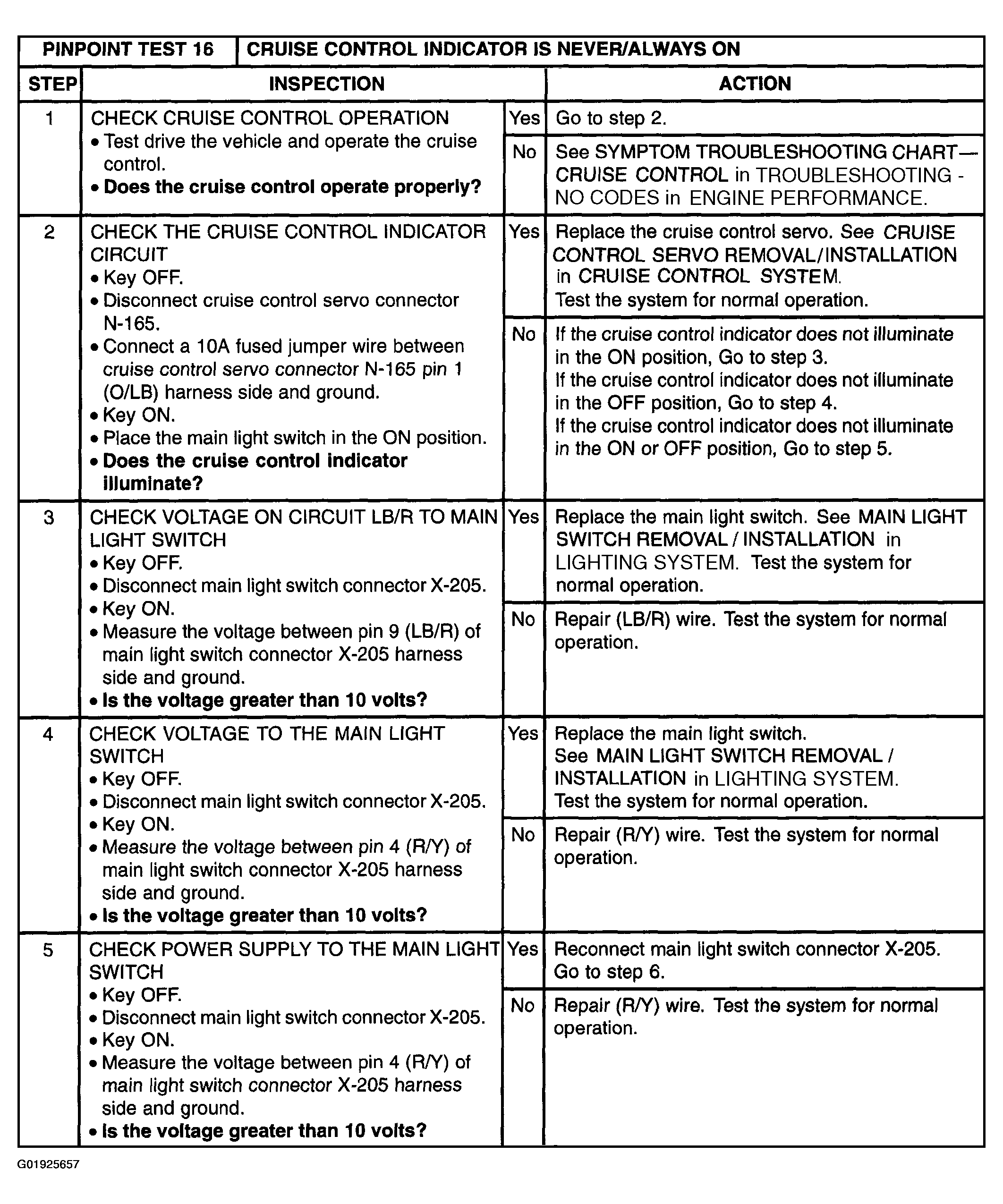

Fig 1: Diagnosis Procedure -- Cruise Control Indicator Never/Always On (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

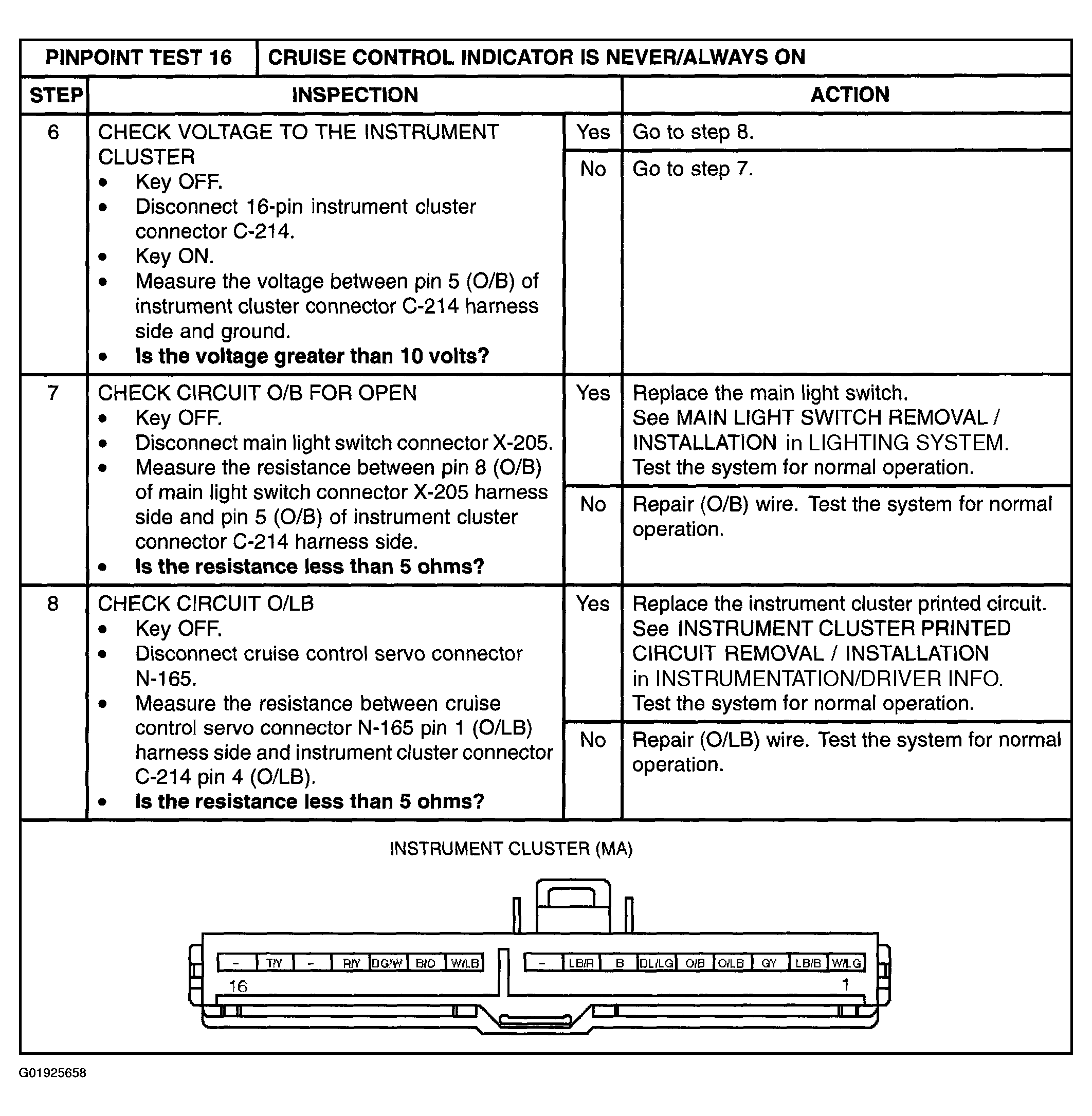

Fig 2: Diagnosis Procedure -- Cruise Control Indicator Never/Always On (Steps 8-9)

Courtesy of MAZDA MOTORS CORP.

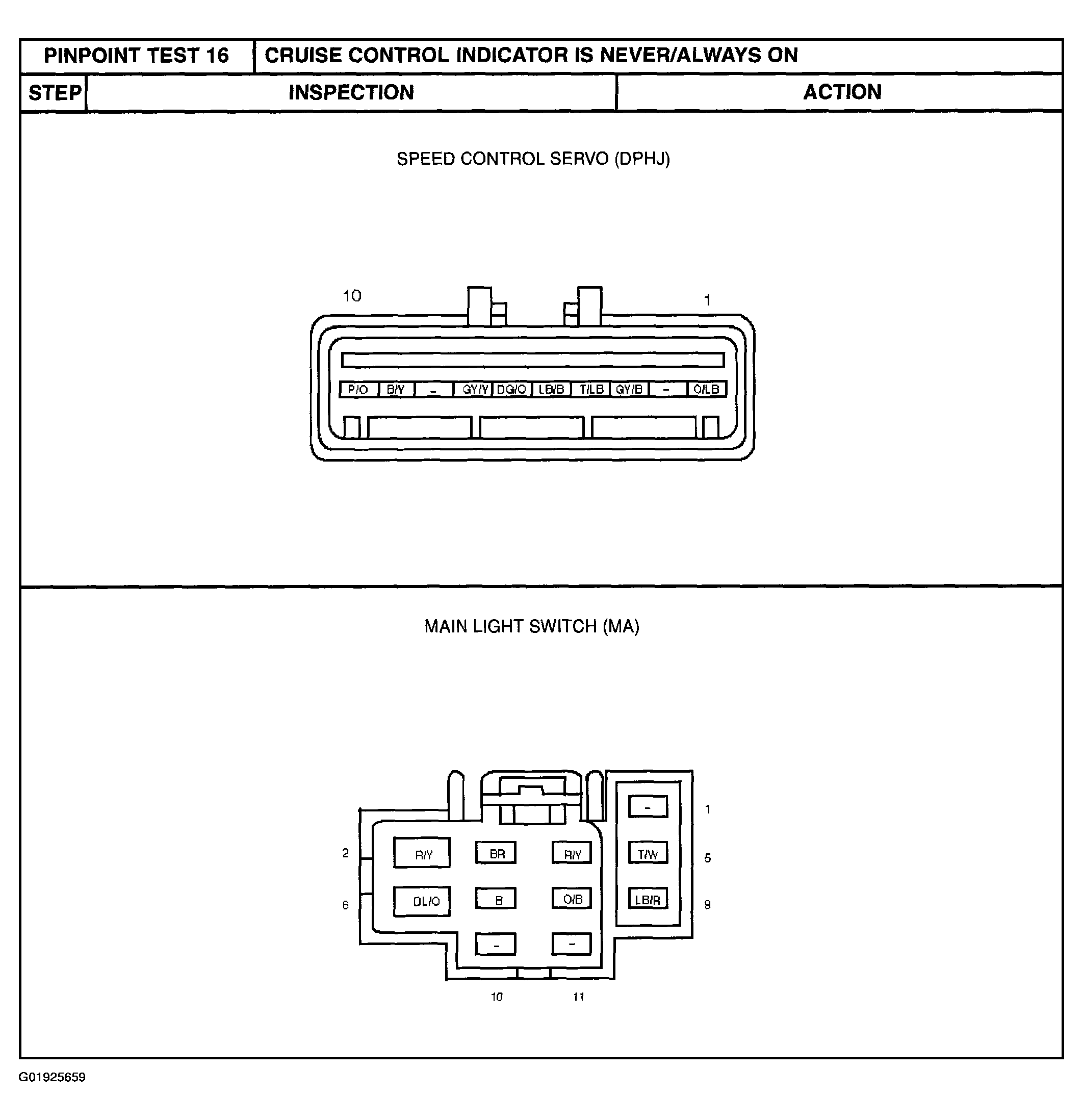

Fig 3: Identifying Speed Control Servo & Main Light Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.
