Charge System Warning Indicator Is Never/Always On

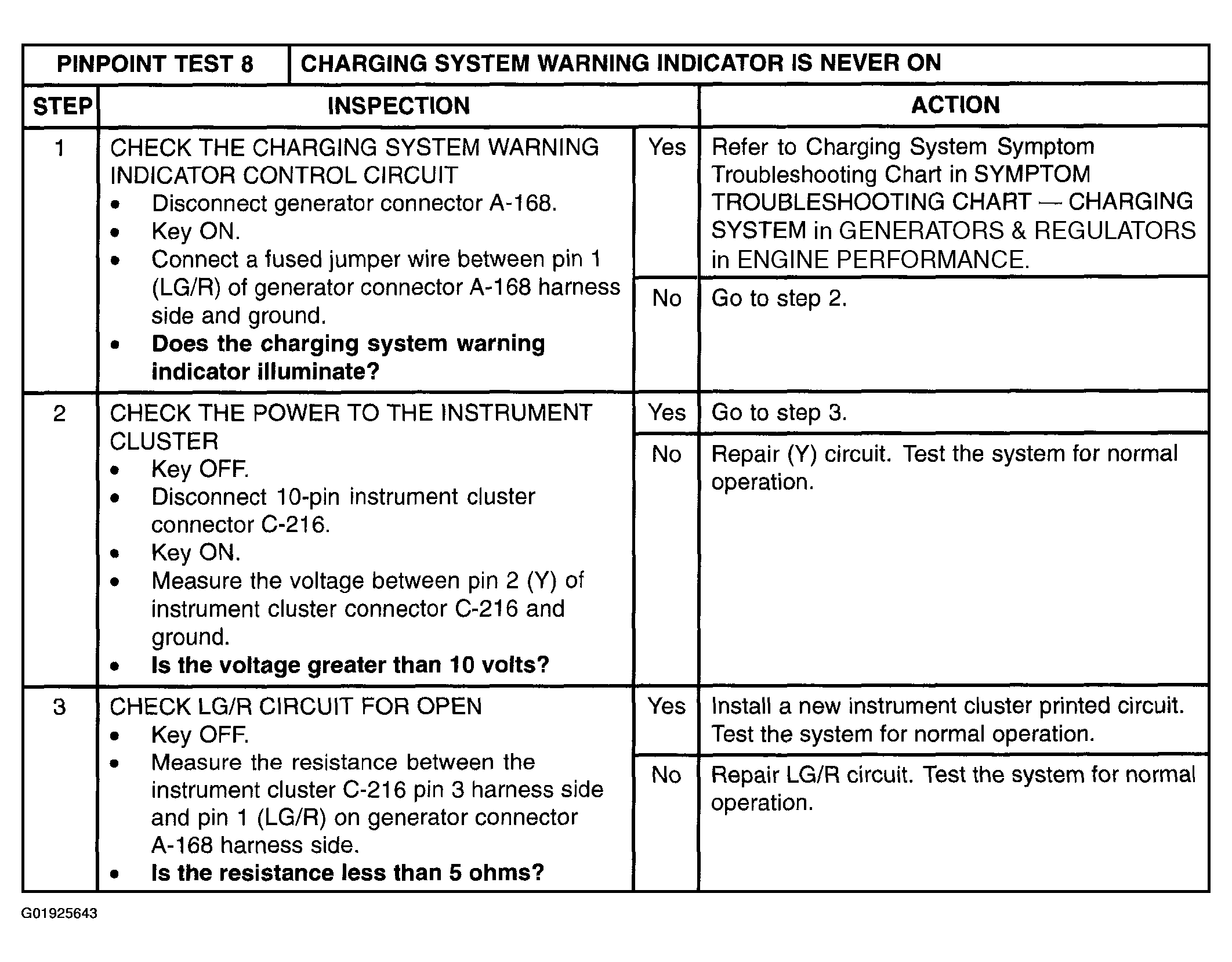

Fig 1: Diagnosis Procedure -- Charge System Warning Indicator Is Never/Always On (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

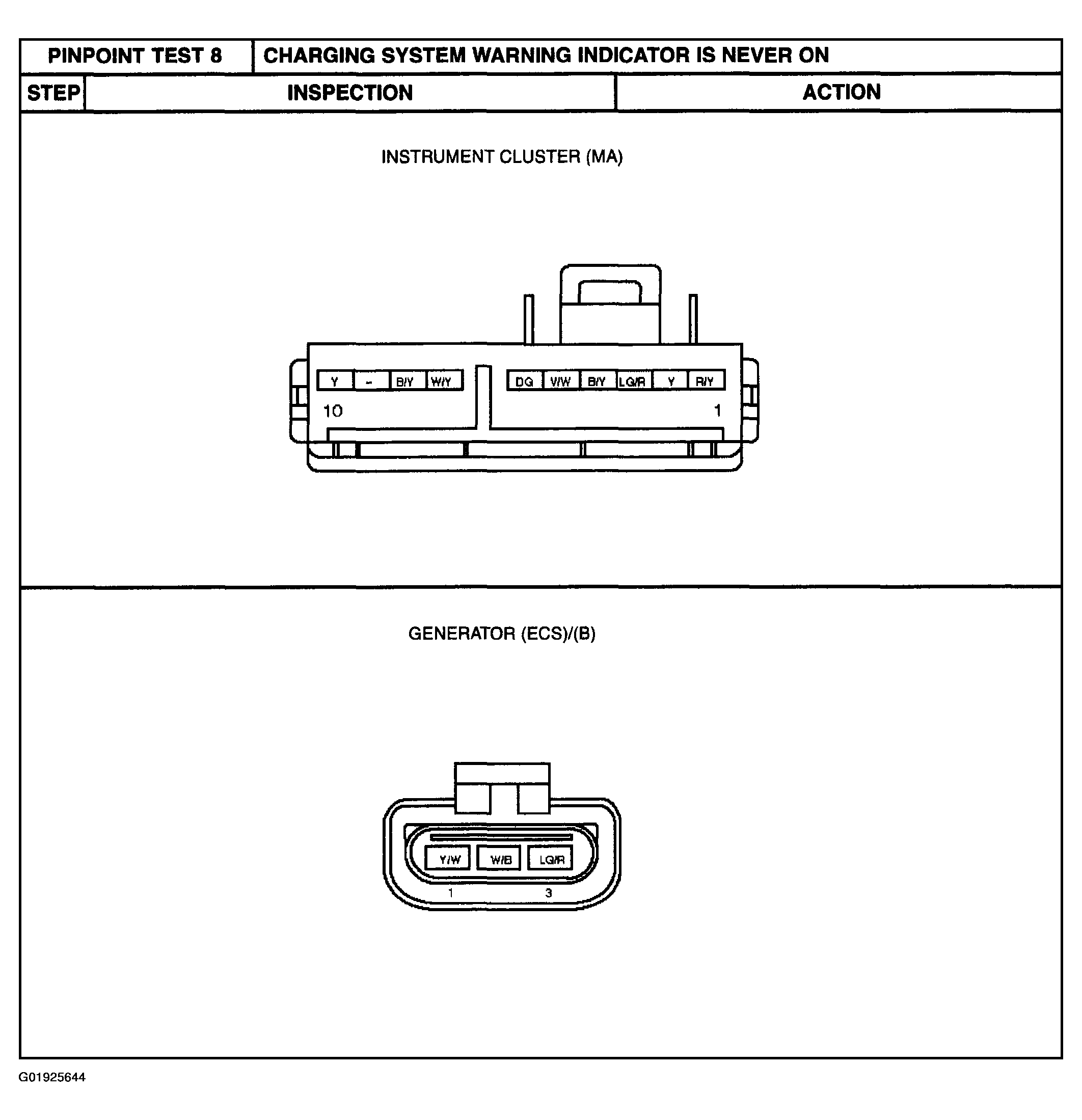

Fig 2: Identifying Instrument Cluster & Generator Connector Terminals

Courtesy of MAZDA MOTORS CORP.
