Drive Belt Removal/Installation - 2.3L

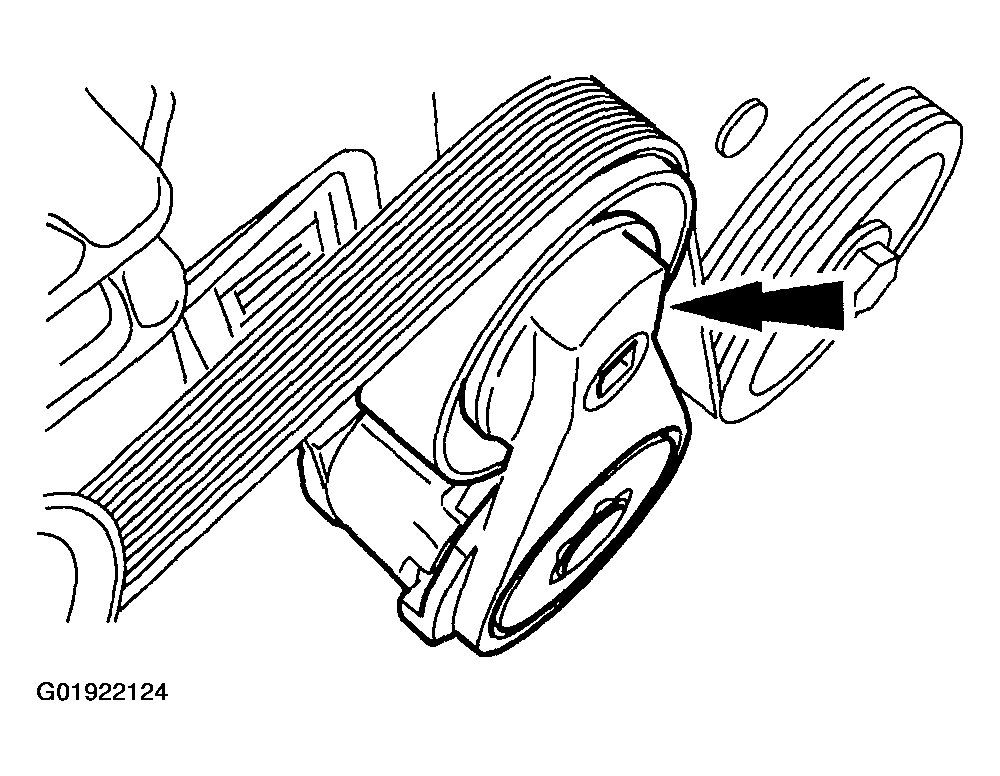

Fig 1: Identifying Drive Belt Tensioner

Courtesy of MAZDA MOTORS CORP.

1. Rotate the belt tensioner counterclockwise and remove the drive belt.
   NOTE:

   • See DRIVE BELT INSPECTION - 2.3L  , for correct drive belt routing.
2. To install, reverse the removal procedure.
