Symptom Troubleshooting Chart - Audible Warning Devices

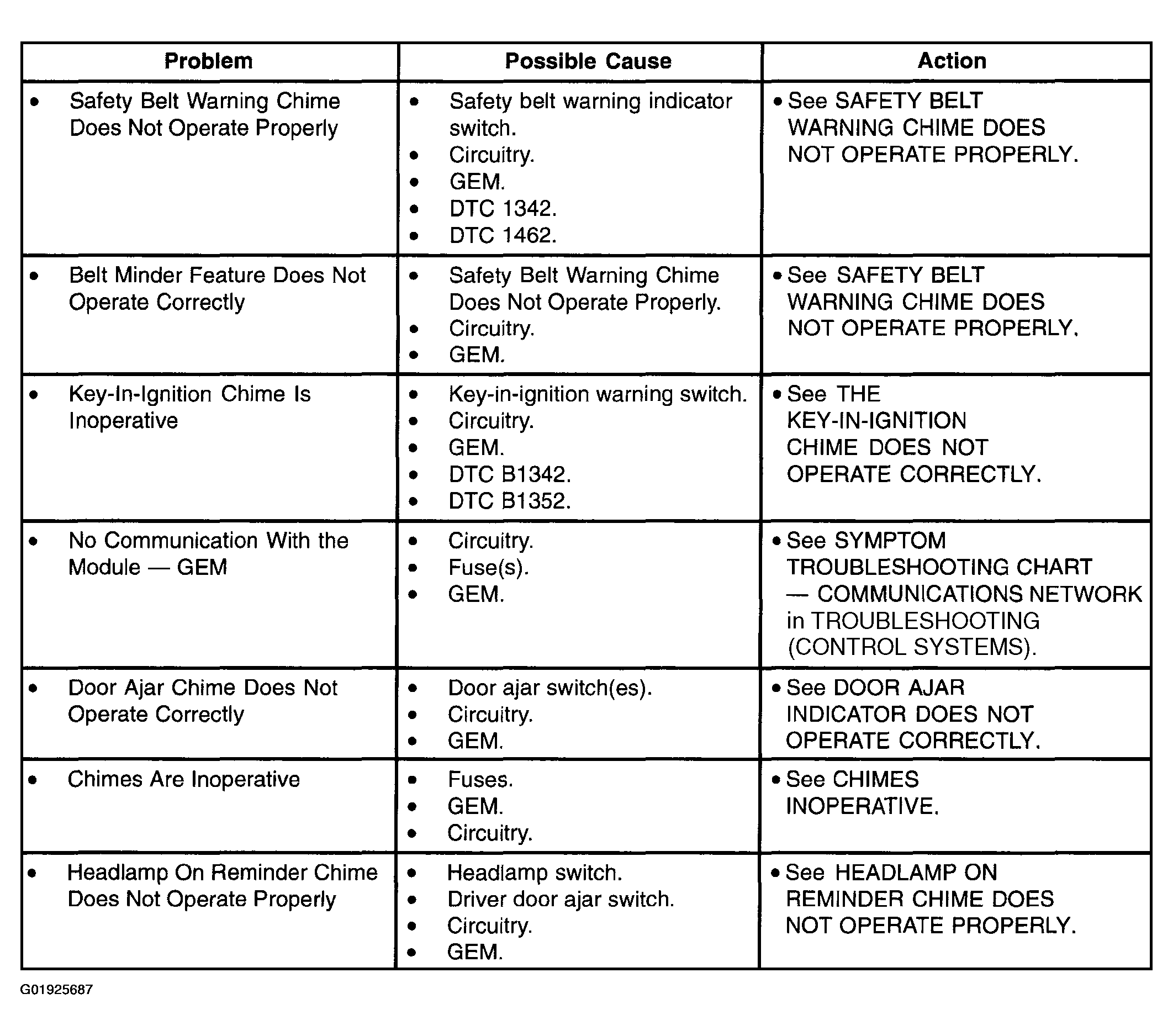

Fig 1: Symptom Troubleshooting Chart -- Audible Warning Devices

G01925687

Courtesy of MAZDA MOTORS CORP.
