Symptom Troubleshooting Chart - Instrument Cluster And Panel Lighting

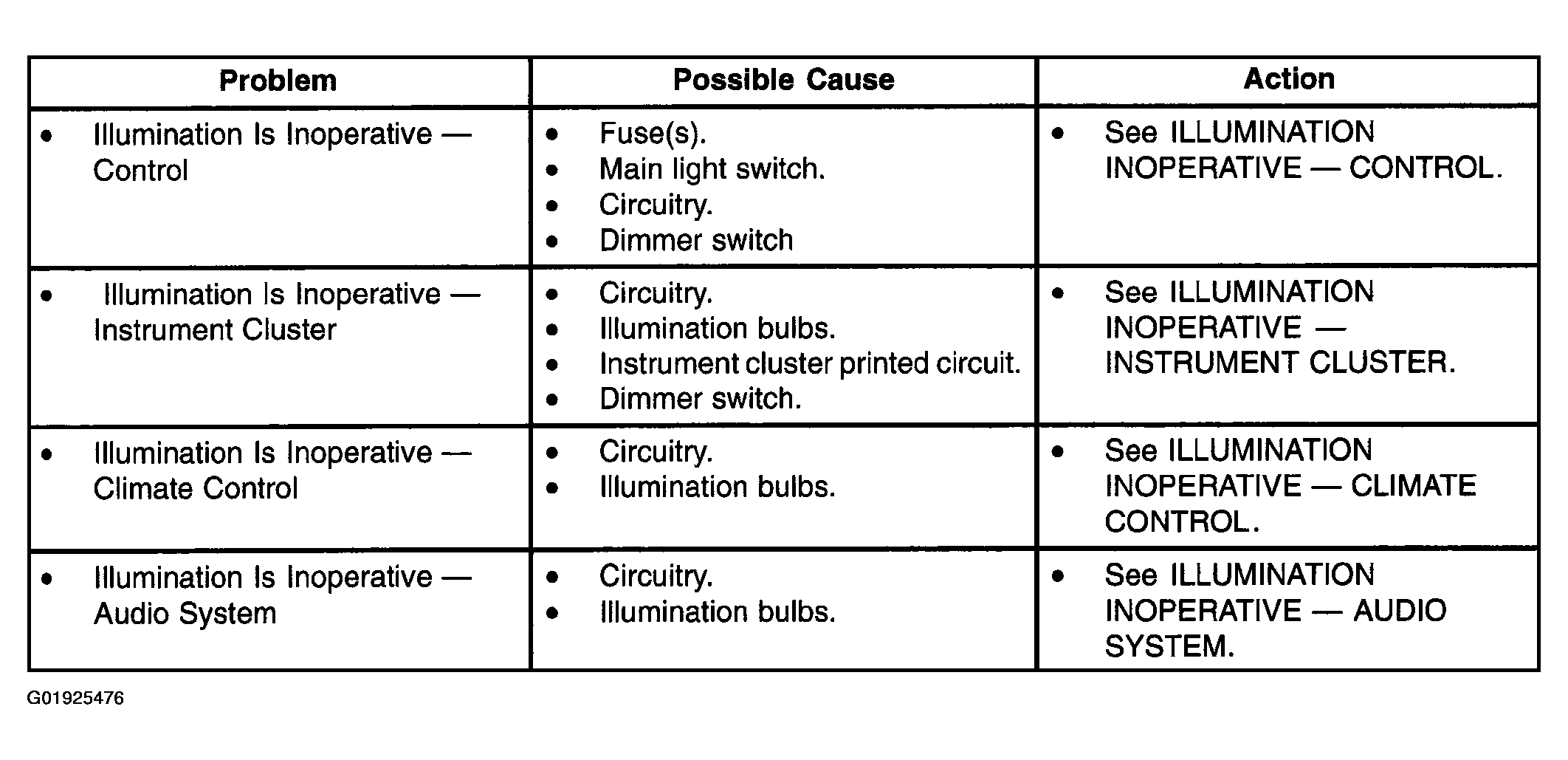

Fig 1: Symptom Troubleshooting Chart - Instrument Cluster And Panel Lighting (1 Of 2)
G01925476Courtesy of MAZDA MOTORS CORP.

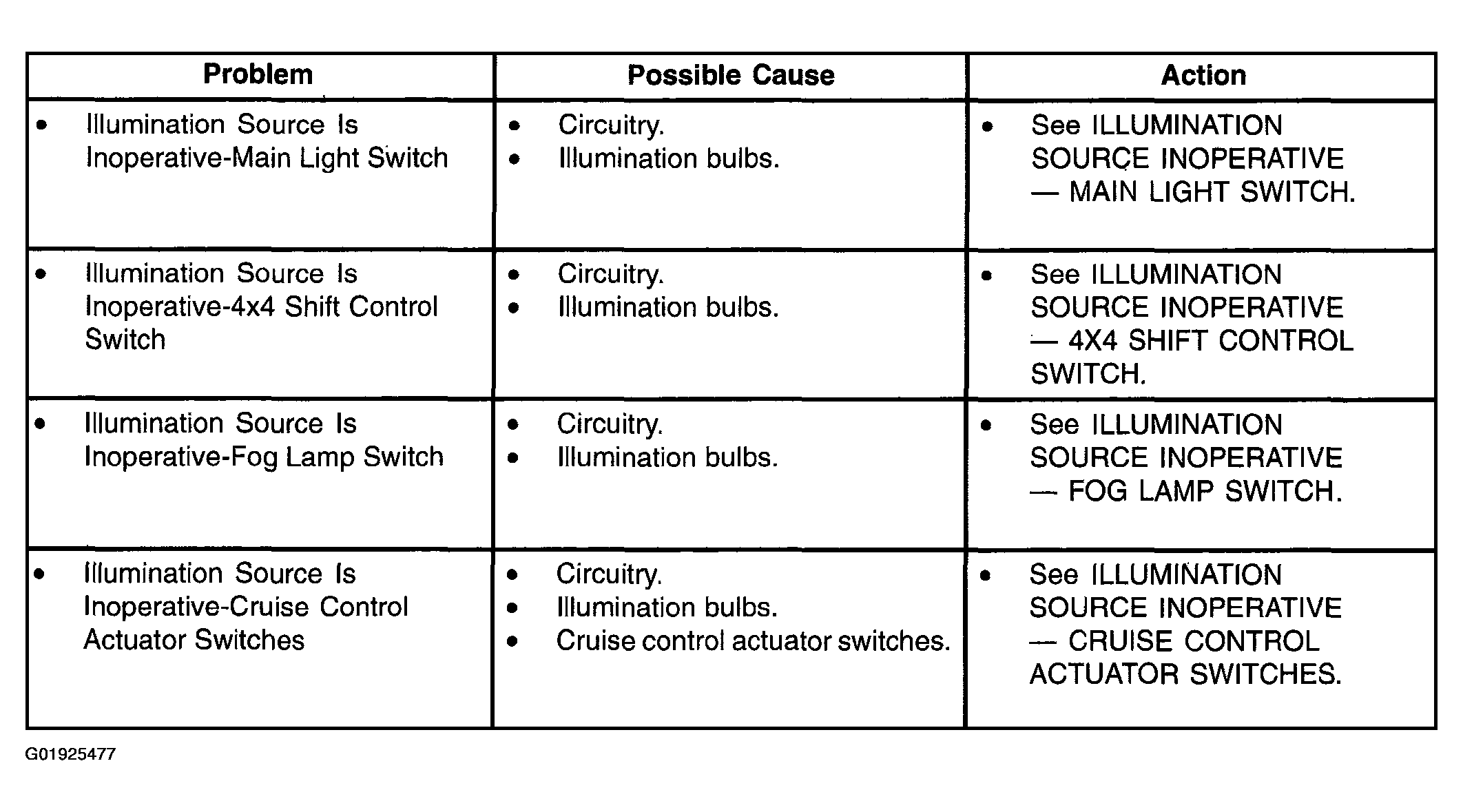

Fig 2: Symptom Troubleshooting Chart - Instrument Cluster And Panel Lighting (2 Of 2)
G01925477Courtesy of MAZDA MOTORS CORP.
