Crankshaft Rear Oil Seal Removal/Installation - 2.3L: Removal

  1. Remove the flywheel or flexplate. See FLYWHEEL/FLEXPLATE REMOVAL/INSTALLATION - 2.3L  .
  2. Remove the bolts and the crankshaft rear oil seal.

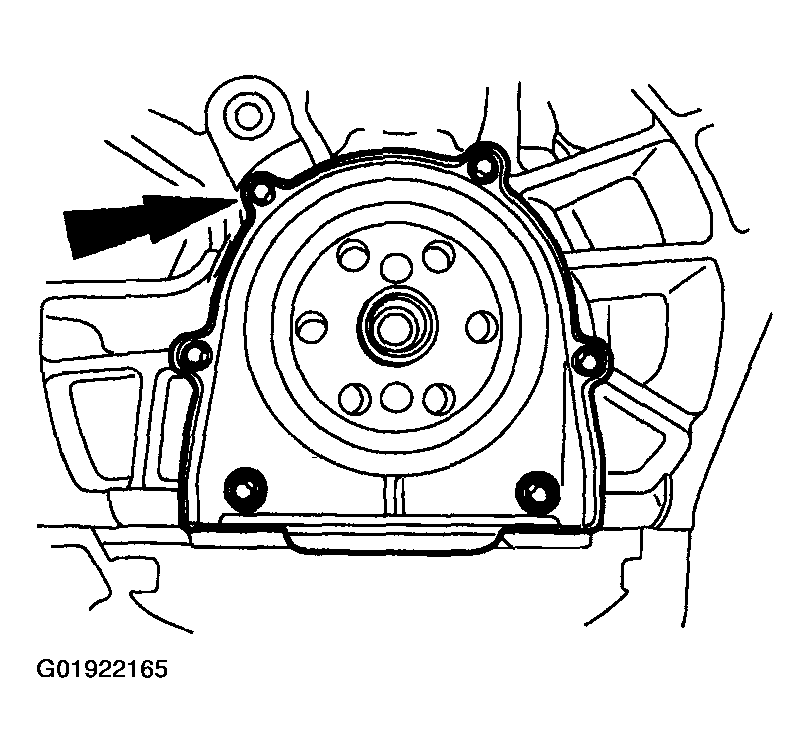

    Fig 1: Removing Crankshaft Rear Oil Seal
    G01922165Courtesy of MAZDA MOTORS CORP.
