Crankshaft Rear Oil Seal Removal/Installation - 2.3L: Installation

  1. Install the crankshaft rear oil seal on the crankshaft.
    • Tighten the bolts in the sequence shown to 10 N.m {1 kgf.m, 7 lbf}.

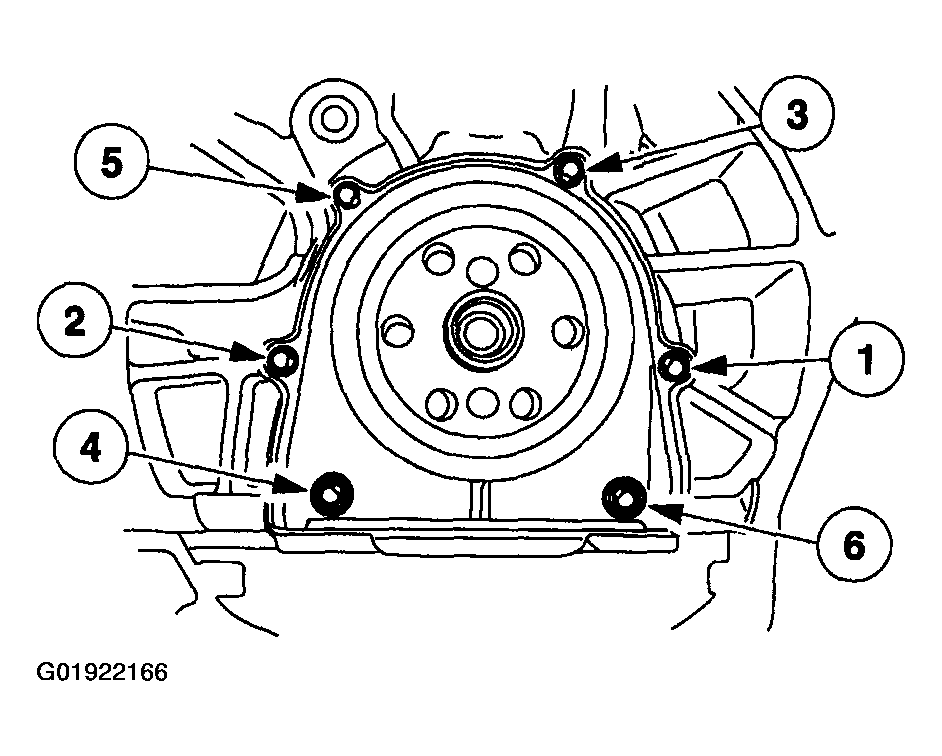

    Fig 1: Crankshaft Rear Oil Seal Bolt Tightening Sequence
    G01922166Courtesy of MAZDA MOTORS CORP.
  2. Install the flywheel or flexplate. See FLYWHEEL/FLEXPLATE REMOVAL/INSTALLATION - 2.3L  .
