Crankshaft Front Oil Seal Removal/Installation - 2.3L: Removal

  1. Remove the crankshaft pulley. See CRANKSHAFT PULLEY REMOVAL/INSTALLATION - 2.3L  .
    2. CAUTION:
    • Use care not to damage the engine front cover or the crankshaft when removing the seal.

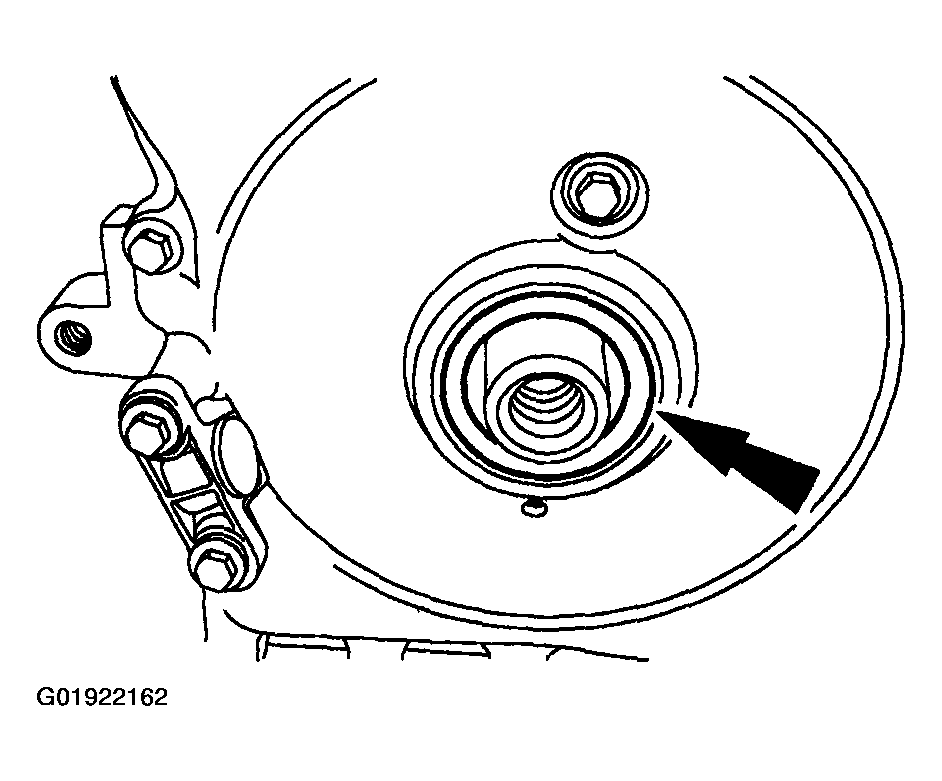

    Fig 1: Removing Crankshaft Front Oil Seal
    G01922162Courtesy of MAZDA MOTORS CORP.
  2. Remove the crankshaft front oil seal by prying the seal out of the front cover.
