Removal & Installation (Tribute 2.0L)

  1. Remove the alternator. See appropriate CHARGING SYSTEM article in ELECTRICAL
  2. Disconnect the Cylinder Head Temperature (CHT) sensor harness connector. See Fig 1.
  3. Remove the CHT sensor. See Fig 2.
  4. To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

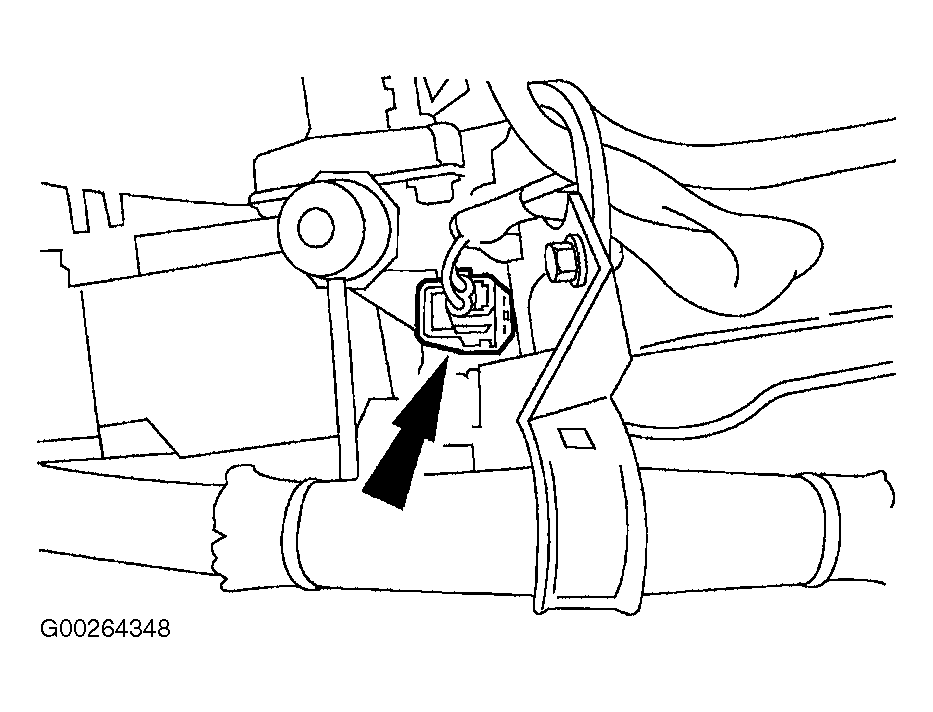

Fig 1: Locating CHT Sensor Harness Connector - Tribute (2.0L)
G00264348Courtesy of MAZDA MOTORS CORP.

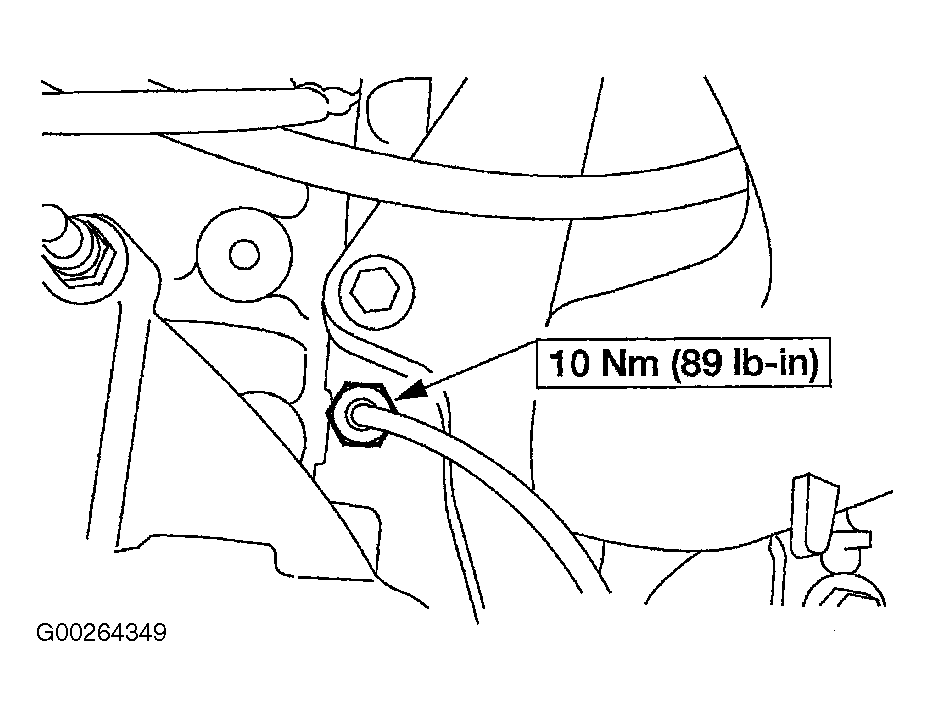

Fig 2: Removing & Installing CHT Sensor - Tribute (2.0L)
G00264349Courtesy of MAZDA MOTORS CORP.
